S1730S-L24P-A
Model: S1730S-L24P-A – Huawei S1730 Switches
Details: S1730S-L24P-A (24 10/100/1000BASE-T Ethernet ports, PoE+, AC power supply)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S1730S-L24P-A Overview

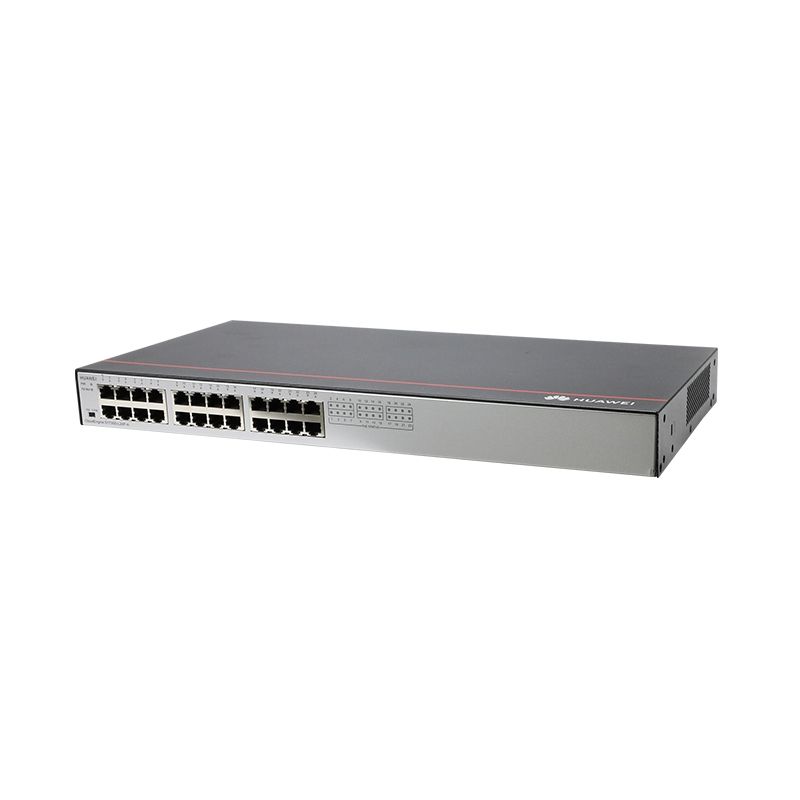

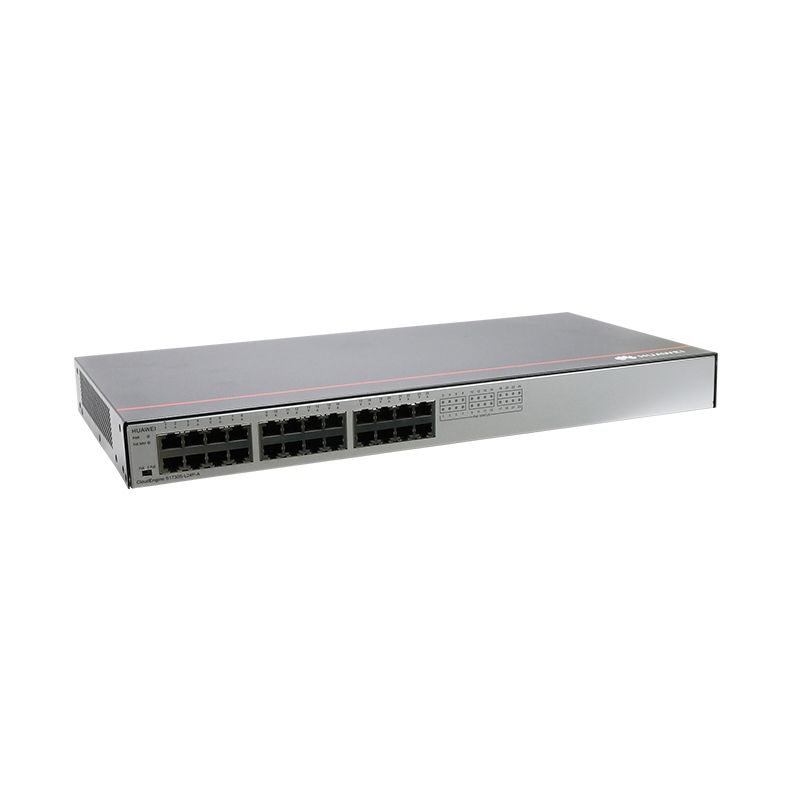

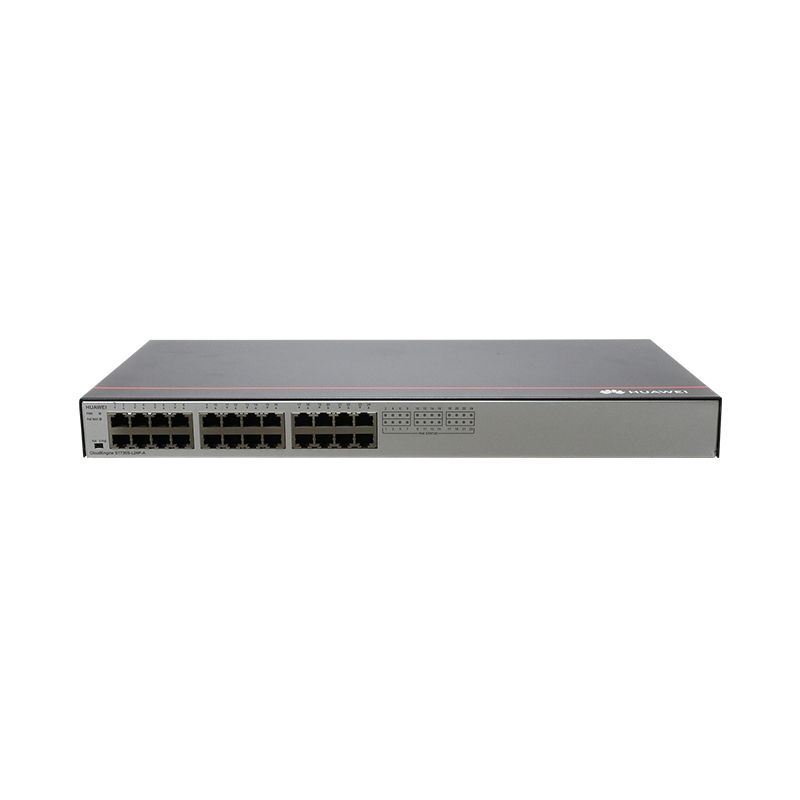

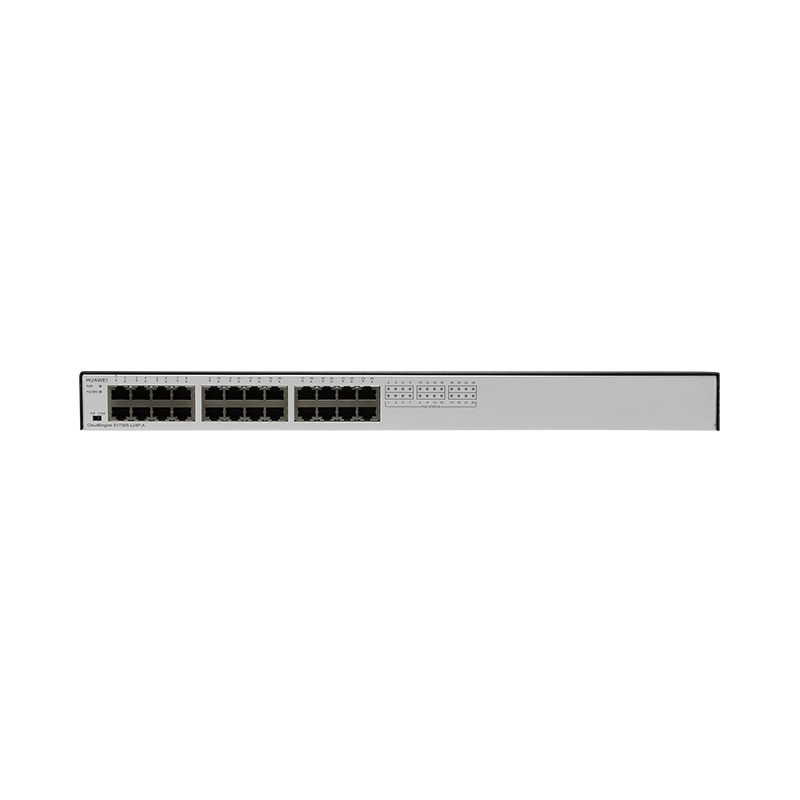

Quick Specs Figure 1 shows the appearance of S1730S-L24P-A.
Table 1 shows the Quick Specs.
| Dimensions (H x W x D) | ● Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.)● Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 225.7 mm (1.72 in. x 17.40 in. x 8.89 in.) |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | ±6 kV in different mode, ±6 kV in common mode |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput) | ● Without PoE: 34 W● 100% PoE loads: 418 W (PoE: 370 W) |
| Typical power consumption (30% of traffic load) | 31W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C. |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 49.6 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
