S1730S-L4P4T-MA
Model: S1730S-L4P4T-MA – Huawei S1700 Series Switches
Details: S1730S-L4P4T-MA, Huawei S1700 Series Switches
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
S1730S-L4P4T-MA Overview

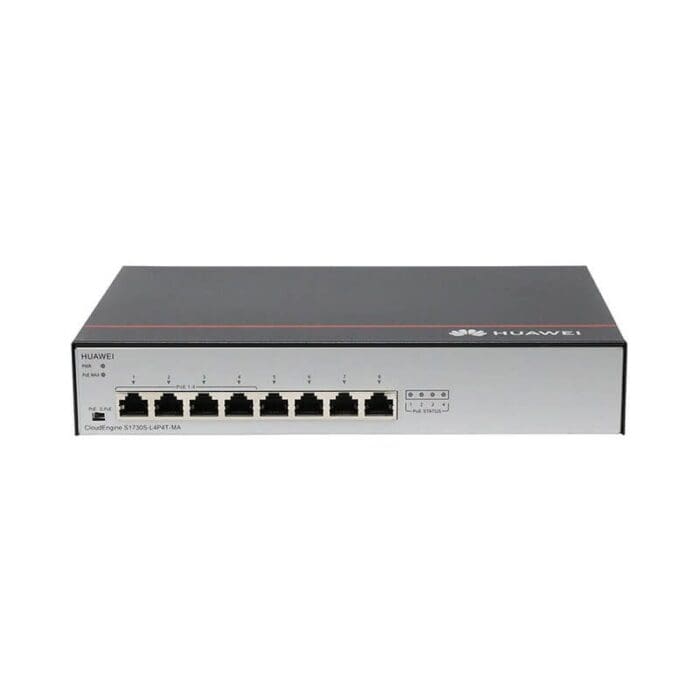

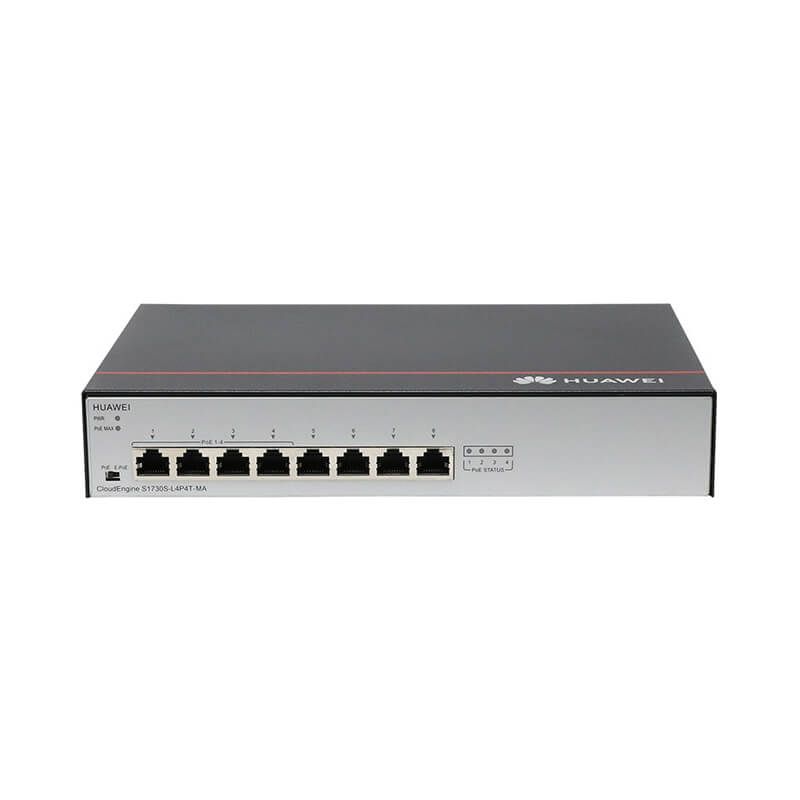

Quick Specs Figure 1 shows the appearance of S1730S-L4P4T-MA.
Table 1 shows the Quick Specs.
| Item | Description |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250 mm x 180 mm (1.72 in. x 9.84 in. x 7.09 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250 mm x 185.4 mm (1.72 in. x 9.84 in. x 7.30 in.) |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput) | Without PoE: 10 W100% PoE loads: 144 W (PoE: 124 W) |
| Typical power consumption (30% of traffic load) | 8 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | Noise-free (no fans) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
