S1730S-S24T4S-MA
Model: S1730S-S24T4S-MA – Huawei S1700 Series Switches
Details: S1730S-S24T4S-MA, Huawei S1700 Series Switches
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S1730S-S24T4S-MA Overview

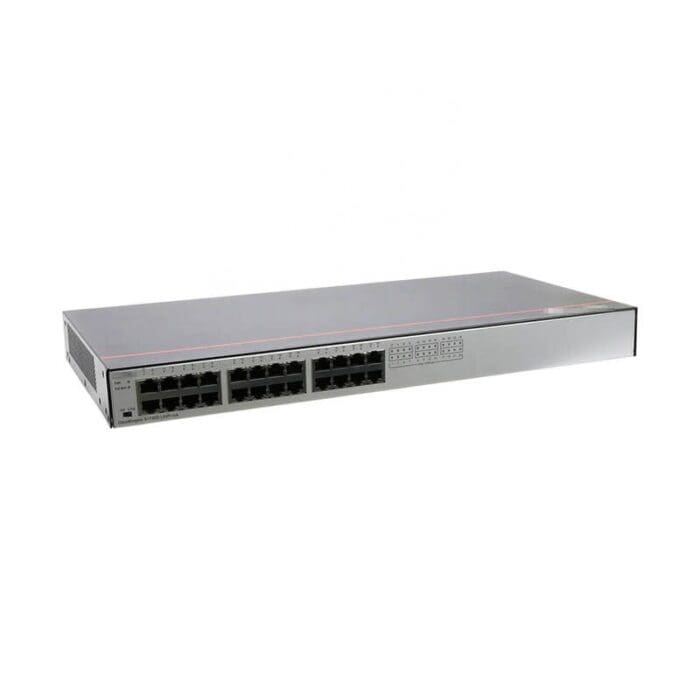

Quick Specs Figure 1 shows the appearance of S1730S-S24T4S-MA.
Table 1 shows the Quick Specs.
| Item | Description |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run thedisplay versioncommand. |
| Mean time between failures (MTBF) | 92.82 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.40 in. x 8.94 in.) |
| Stack ports | Not supported |
| RTC | Not supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 HzHigh-voltage DC input: 240 V DC |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 HzHigh-voltage DC input: 190 V DC to 290 V DC |
| Maximum power consumption (100% throughput) | 34 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard, with EEE enabled) | 28 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | Noise-free (no fans) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certificationSafety certificationManufacturing certification |
