-5%
S2700-9TP-EI-AC
Model: S2700-9TP-EI-AC 02352340 Huawei Quidway S2700 Switch
Details: S2700-9TP-EI-AC Mainframe(8 Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP, AC 110/220V)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S2700-9TP-EI-AC Overview

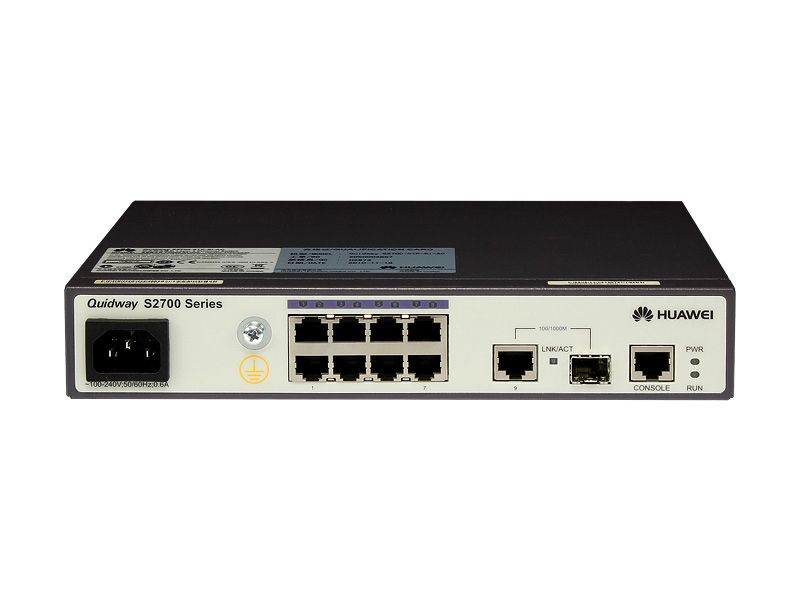

Quick Specs Figure 1 shows the appearance of S2700-9TP-EI-AC.
Table 1 shows the Quick Specs.
| Port | Eight 10/100Base-TX ports and one gigabit(GE) combo port |
| Forwarding performance | 2.68 Â Mpps |
| MAC address table | 8 K MAC address entriesManual creation and deletion of MAC address entriesAging time of MAC address entriesDisabling MAC address learning on an interface or aggregation groupLimit on the number of MAC addresses learned on an interfaceBlackhole MAC address entries |
| VLAN features | 4 K VLANs, complying with IEEE 802.1QPort-based VLAN assignment |
| QoS | Port-based rate limiting and flow-based rate limitingFour or eight queues of different priorities on each portMapping between 802.1p priorities and queuesSP, WRR, and SP+WRR algorithms |
| IPv6 features | IPv6 hostStatic IPv6 routes |
| Multicast | IGMP v1/v2/v3 snoopingMulticast load balancing among member ports of a trunkPort-based rate limiting and traf?c statistics for multicast packets |
| Port mirroring | 1:1 and N:1 port mirroring |
| Security | Port isolationSuppression of multicast, broadcast, and unknown unicast packetsCPU defense |
| Surge protection | 6KV surge protection capability on service ports |
| Device management | Auto-Con?gCLI-based con?gurationRemote con?guration using TelnetSNMP V1/V2/V3RMONHGMP v2SSHv2Web-based device managementGVRP |
| Operating environment | Operating temperature: 0°C–50°C (long term); -5°C–55°C (short term)Relative humidity: 10%–90% (non-condensing) |
| Power supply | AC:Rated voltage range: 100 V to 240 V AC, 50/60 HzMaximum voltage range: 90 V to 264 V AC, 50/60 Hz |
| Dimensions: width x depth x height | 250 mm x 180 mm x 43.6 mm |
| Weight | 1.4kg |
| Power consumption | < 12.8 W |
