-5%
S2700-9TP-EI-DC
Model: S2700-9TP-EI-DC Huawei S2700 Series Switch
Details: S2700-9TP-EI-DC(8 Ethernet 10/100 ports,1 dual-purpose 10/100/1000 or SFP,DC -48V)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S2700-9TP-EI-DC Overview

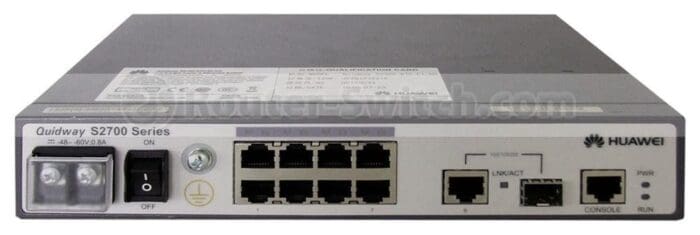

Quick Specs Figure 1 shows the appearance of S2700-9TP-EI-DC.
Table 1 shows the Quick Specs.
| Downlink ports | 8 × 10/100Base-TX Ethernet ports |
| Uplink ports | 1 dual-purpose 10/100/1000 or SFP |
| MAC address | 8K MAC address entriesManual deletion of dynamic MAC address entriesAging time of MAC address configurableBlackhole MAC address entriesMAC address learning control which based on ports |
| VLAN feature | 4K VLANs, complying with IEEE 802.1QPort-based VLAN assignment |
| QoS | Port-based rate limiting and flow-based rate limiting4 or 8 queues of different priorities on each portMapping between 802.1p priorities and queuesSP, WRR, and SP+WRR algorithms |
| IPv6 feature | IPv6 protocolStatic IPv6 routesSupports MLD v1/v2 snooping. |
| Multicast | MVLANControllable multicastIGMP v1/v2/v3 snoopingPort-based rate limiting for multicast packets |
| Reliability | STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance |
| Traffic sampling | N/A |
| Security & access features | 802.1x authentication and limit on the number of users on an interfaceStorm suppressionIP Source Guard |
| Surge protection | Surge protection capability of service ports: 6 kV (The surge protection capability of service ports on PoE switches is 1 kV.) |
| Management | Stack (S2710-52P-SI-AC, S2710-52P-PWR-SI, S2700-52P-EI-AC, S2700-52P-PWR-EI)Auto-ConfigCLI-based configurationRemote configuration using TelnetSNMP V1/V2/V3Remote network monitoringSSHv2Web-based device management |
| Operating environment | Long-term operating temperature: –5°C to + 50°CRelative humidity: 10% to 90% (non-condensing) |
| Power | DC:Rated voltage range: –48 V to –60 V DCMaximum voltage range: –36 V to –72 V, DCNote: PoE models do not use DC power supplies. |
| Dimensions (W x D x H) | 250 × 180 × 43.6 mm |
| Weight | S2700-9TP-EI<1.4 kg |
| Power consumption | S2700-9TP-EI<12.8 W |
Get more information
Do you have any question about the S2700-9TP-EI-DC?
Contact us now via Live Chat or sales@metafinitivetech.com
