S4048-ON
Model: S4048-ON – Dell Networking S4048-ON Switches
Details: 48x 10GbE SFP+ and 6x 40GbE QSFP+ ports, IO to PSU, 1x AC PSUs, including S4048-3Y4H and S4048-1NBD
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S4048-ON Overview

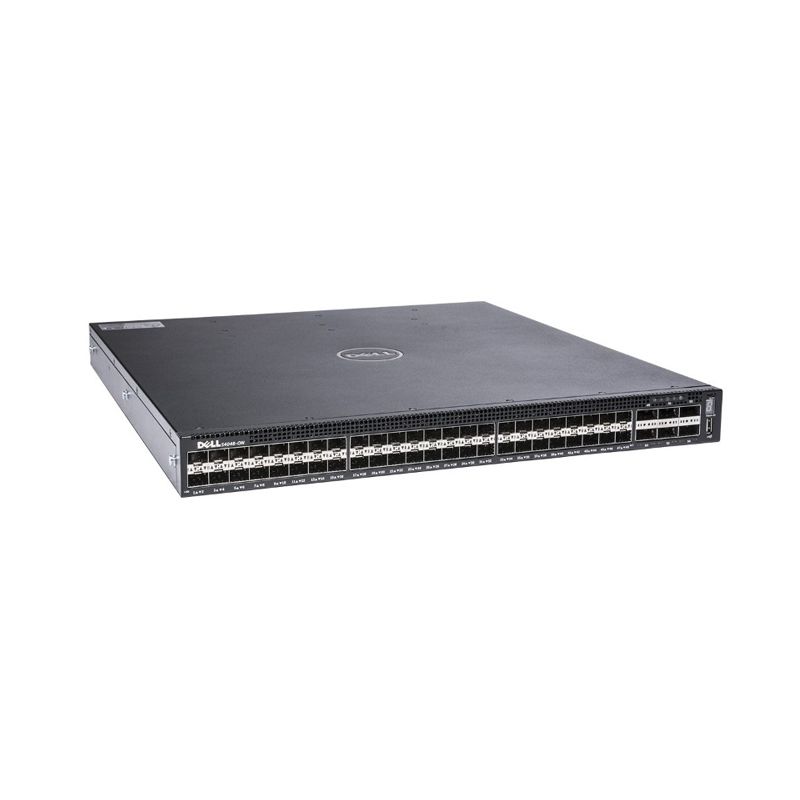

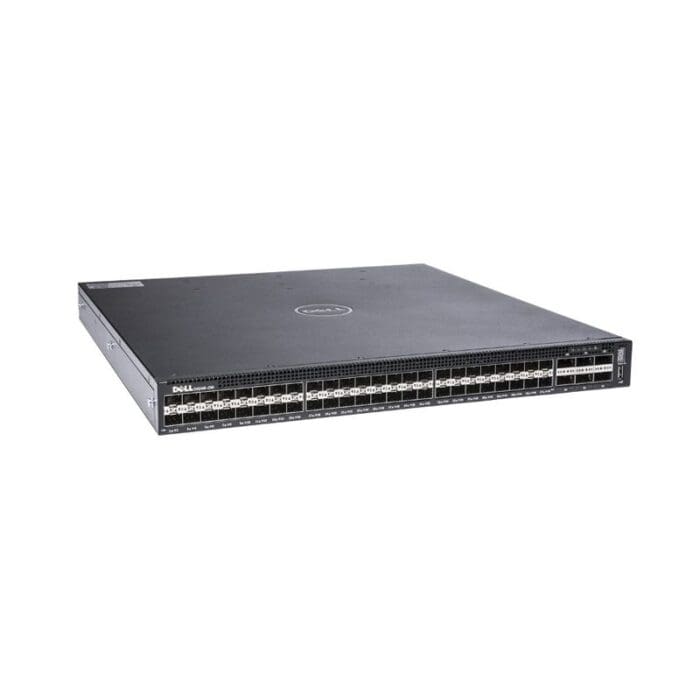

Quick Specs Figure 1 shows the appearance of S4048-ON.
Table 1 shows the Quick Specs.
| Brand | Dell |
| Model | S4048-ON |
| Ports | 48x 10GbE SFP+ and 6x 40GbE QSFP+ |
| Airflow | IO to PSU |
| Power Supply Unit | 1x AC PSU |
| Support Options | S4048-3Y4H and S4048-1NBD |
| Switching Capacity | 1.44 Tbps |
| Forwarding Rate | 1,072 Mpps |
| Latency | 600ns (64-byte packets) |
| Packet Buffer Memory | 12MB |
| Management | CLI, SNMP, RMON, REST, and web-based GUI |
| Operating Temperature | 0��C to 45��C |
| Storage Temperature | -40��C to 70��C |
| Relative Humidity | 10% to 90%, non-condensing |
| Dimension (HxWxD) | 1.7 x 17.1 x 18 inches |
| Rack Units | 1U |
| Max Power Consumption | 350W |
| Typical Power Consumption | 200W |
| Supported OS | OS10, OS9, ONIE |
| Cooling System | Hot-swappable fans |
| Warranty | 3 years |
