S5024PV3-EI-PWR
Model: S5024PV3-EI-PWR – H3C Switches
Details: H3C S5024PV3-EI-PWR L2 Ethernet Switch with 24*10/100/1000BASE-T PoE+ Ports(AC 185W) and 4*1000BASE-X Ports,(AC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S5024PV3-EI-PWR Overview

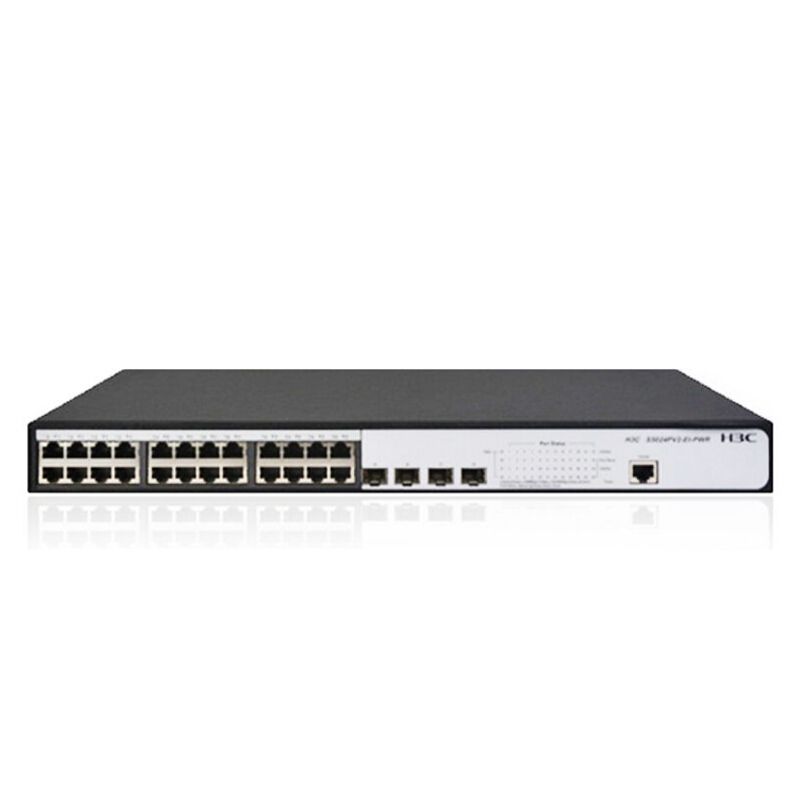

Quick Specs Figure 1 shows the appearance of S5024PV3-EI-PWR.
Table 1 shows the Quick Specs.
| Brand | H3C |
| Model | S5024PV3-EI-PWR |
| Switch Type | L2 Ethernet Switch |
| Ports | 24 x 10/100/1000BASE-T PoE+ Ports and 4 x 1000BASE-X Ports |
| PoE Support | PoE+ |
| Power Supply | AC 185W |
| Forwarding Rate | 35.7 Mpps |
| Switching Capacity | 128 Gbps |
| MAC Address Table | 16K |
| Jumbo Frame Support | Yes, up to 9216 bytes |
| VLAN Support | 4K VLANs |
| ACL Support | Yes |
| QoS Support | Yes |
| Security Features | 802.1X, RADIUS, DHCP Snooping, IP Source Guard |
| Operating Temperature | 0��C to 45��C |
| Storage Temperature | -40��C to 70��C |
| Dimensions | 440 mm x 300 mm x 43.6 mm |
| Power Consumption | 48.1W (Idle), 180W (Max with PoE) |
| Mounting Options | Rack-mountable |
| Management | Web-based management, CLI, SNMP |
| LED Indicators | Yes, for system, Link/Speed, PoE |
