S5130S-28S-HI
Model: S5130S-28S-HI – H3C Switches
Details: H3C S5130S-HI Series Advanced Gigabit Access Switches ,24×10/100/1000BASE-T Ethernet ports(8 combo ports), 4x10G/1G BASE-X SFP+ ports; 2 power module slots; 1 Power Supply (LSPM2150A) Included
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S5130S-28S-HI Overview

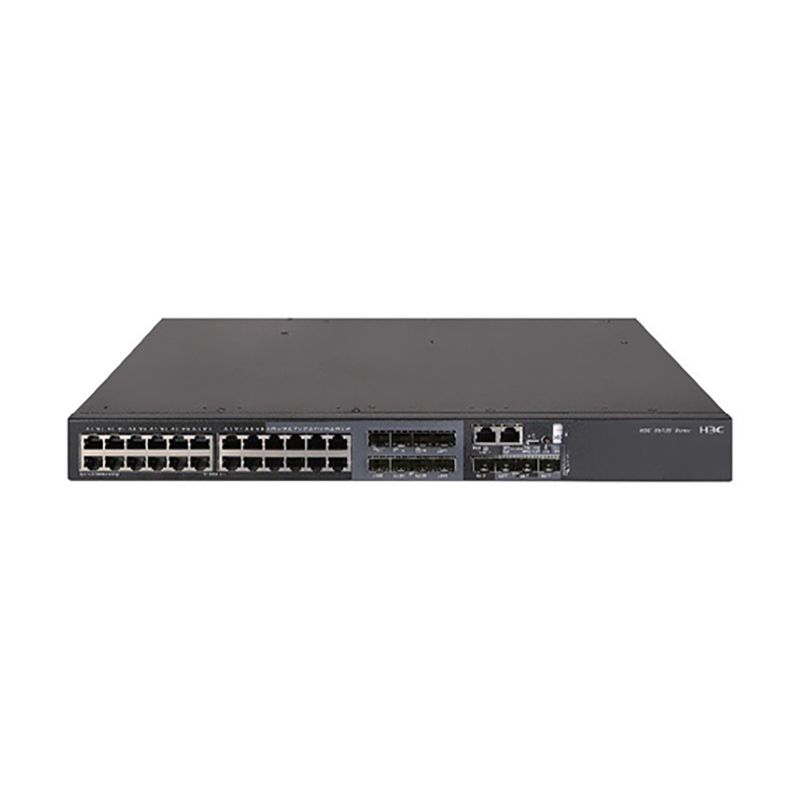

Quick Specs Figure 1 shows the appearance of S5130S-28S-HI.
Table 1 shows the Quick Specs.
| Brand | H3C |
| Model | S5130S-28S-HI |
| Series | S5130S-HI Series |
| Type | Advanced Gigabit Access Switch |
| Ethernet Ports | 24×10/100/1000BASE-T Ethernet ports (8 combo ports) |
| SFP+ Ports | 4x10G/1G BASE-X SFP+ ports |
| Power Module Slots | 2 power module slots |
| Included Power Supply | 1 Power Supply (LSPM2150A) Included |
| Switching Capacity | 336Gbps |
| Packet Forwarding Rate | 252Mpps |
| MAC Address Table Size | 32K |
| VLANs Supported | 4K |
| Jumbo Frame Size | 9,216 bytes |
| Operating Temperature | 0��C to 45��C (32��F to 113��F) |
| Storage Temperature | -40��C to 70��C (-40��F to 158��F) |
| Operating Humidity | 5% to 95%, non-condensing |
| Management | SNMP v1/v2c/v3, RMON, SSH 2.0, SSL |
| Dimensions (WxDxH) | 440 x 260 x 43.6 mm |
| Power Consumption | 78.9W |
| Redundant Power Supply | Yes, supported |
| Layer Support | Layer 2 and Layer 3 |
