S5320-56C-EI-48S-AC
Model: S5320-56C-EI-48S-AC Huawei S5300 Series Switch
Details: S5320-56C-EI-48S-AC(48 Gig SFP,4 10 Gig SFP+,with 1 interface slot,with 150W AC power supply)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
S5320-56C-EI-48S-AC Overview

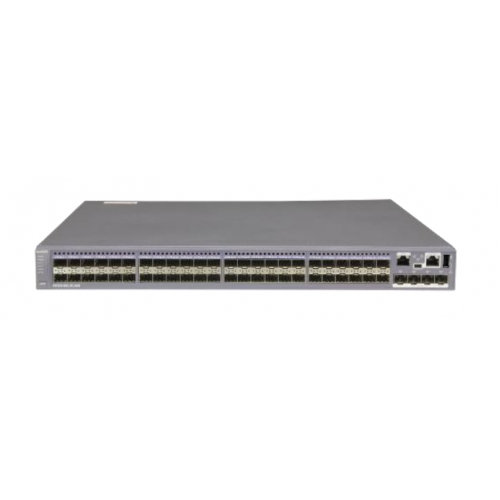

Quick Specs Figure 1 shows the appearance of S5320-56C-EI-48S-AC.
Table 1 shows the Quick Specs.
| Item | Description |
| Memory (RAM) | 2 GB |
| Flash | 340 MB |
| Mean time between failures (MTBF) | 73.91 years when no card is configured; 68.42 years when a 2-port 10GE SFP+ interface card is configured; 66.63 years when a 2-port 10GE RJ45 interface card is configured; 66.77 years when a stack card is configured |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common modeUsing DC power modules: ±1 kV in differential mode, ±2 kV in common mode |
| Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.) |
| Weight | Empty: ≤ 8 kg (17.64 lb)Fully loaded: ≤ 12 kg (26.46 lb) |
| Stack ports | Ports on the 2-port QSFP+ rear stack card |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz-48 V DC to -60 V DC |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz-36 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 104 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5096 ft.)NOTE:When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 51.2 dBA |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.)DC power modules configured: 0-2000 m (0-6562 ft.) |
| Certification | EMC certificationSafety certificationManufacturing certification |
