S5500-48GT4GF
Model: S5500-48GT4GF – Dahua Aggregation Switches
Details: Dahua New-generation Environment-friendly & Energy-saving Ethernet Switches
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
S5500-48GT4GF Overview

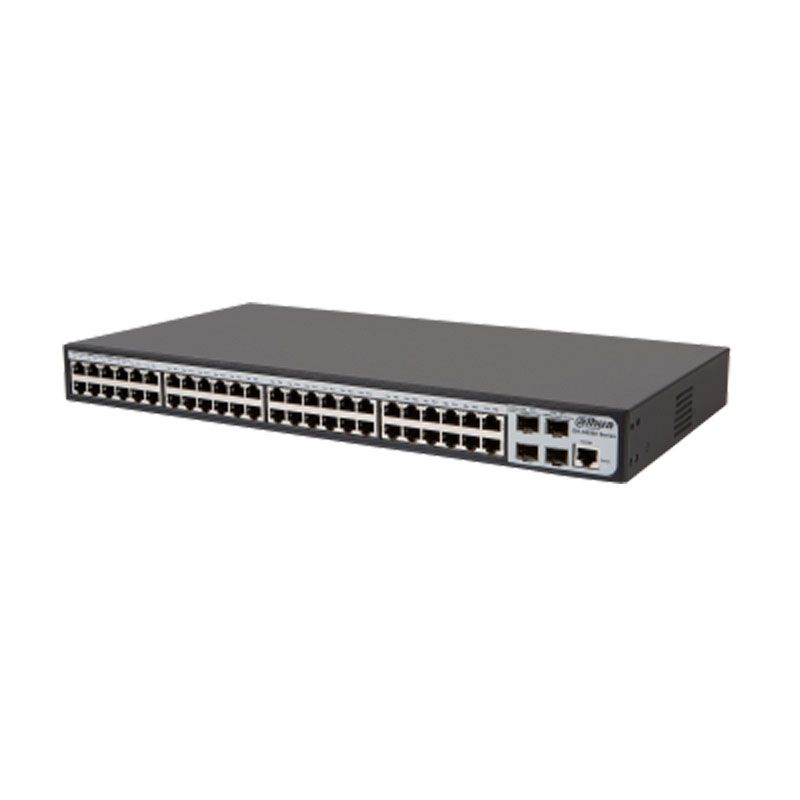

Quick Specs Figure 1 shows the appearance of S5500-48GT4GF.
Table 1 shows the Quick Specs.
| Model | DH-S5500-48GT4GF |
| Switching capacity | 256 Gbit/s |
| Packet forwarding rate | 78Mpps |
| Management port | One console port |
| Fixed port | 48 x 10/100/1000Base-T Ethernet port4 x 1000Base-X Ethernet port |
| Port aggregation | Supports the following port aggregation features:●LACP●Manual port aggregation●A maximum of eight ports in each aggregation group |
| Layer-2 ring network protocol | Supports STP, RSTP, and MSTP. |
| VLAN | Supports the following VLAN features:●Port-based VLANs (4,000 VLANs)●MAC address–based VLANs●Protocol-based VLANs●GVRP●QinQ and flexible QinQ●VLAN mapping●Guest VLANs |
| DHCP | Supports the following DHCP features:●DHCP Server●DHCP Client●DHCP Relay●DHCP Snooping●DHCP Snooping Option82 |
| IPv4 | Supports IPv4 static routing, RIP, and OSPF. |
| IPv6 | Supports the following IPv6 features:●IPv4 and IPv6 dual-protocol stack●IPv6 static routing●ND and PMTUD●Pingv6, Telnetv6, FTPv6, TFTPv6, and ICMPv6 |
| Multicast | Supports the following multicast features:●IGMP Snooping and fast leave●MLD Snooping●Multicast VLANs |
| Stacking | Supports hybrid stacking of a maximum of 32 devices. |
| Mirroring | Supports port mirroring and flow mirroring. |
| ACL | Supports the following ACL features:●Packet filtering on L2 to L4●Match of the previous 80 bytes in a packet●ACL definition based on the source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port scope, and VLAN●ACL issuance based on ports or VLANs●ACLs based on time ranges●Hardware-based IPv6 ACL and QoS |
| QoS | Supports the following QoS features:●Diff-Serv QoS●Eight output queues on each port●802.1P/DSCP priority mapping●Queue scheduling mechanisms●Priority marking and remarking●Flow-based packet filtering●Flow-based redirection●Flow-based rate limiting●Voice VLANs |
| Security | Supports the following security features:●Level-based user management and password protection●Guest VLANs●IEEE 802.1X authentication and centralized MAC address authentication●Rapid EAD deployment●AAA, RADIUS, and HWTACACS authentication●Restriction on the number of learned MAC addresses●MAC address black holes●SSH 2.0, providing secure encrypted channels for user login●SSL, ensuring the security of data transmission●HABP●Validity verification of SAVI source addresses●Port isolation●Rate limiting for ARP packets●Protection of source IP addresses●Detection of ARP intrusion●Defense against DoS attacks●Suppression of broadcast packets●Active/Standby data backup mechanism●IP address + port binding, IP address + MAC address binding, port + MAC address binding, IP address + MAC address + port binding, and IP address + MAC address + port + VLAN binding●CPU protection |
| Reliability | Supports the following reliability features:●Ethernet OAM●CFD●Smart Link, for providing efficient and reliable link backup, load sharing and rapid convergence for double-uplink networking●Monitor Link, for monitoring the uplink status and providing more efficient link backup and switching in conjunction with the Smart Link●DLDP, for detecting unidirectional available links●RRPP |
| System management | Supports the following system management features:●Configuration through the Console, AUX Modem, Telnet, and SSH2.0 CLI●File downloading and uploading over FTP, TFTP, Xmodem, and SFTP●SNMP v1/v2c/v3●RMON●Virtual Cable Test (VCT)●TR069●NTP clock●System operation logs●Cluster management●Intelligent management centers |
| Ambient humidity | Operation ambient humidity: 5%–95% (non-condensing)Storage ambient humidity: 5%–95% (non-condensing) |
| Environment protection standard | China RoHS, and EEE |
| Weight (full configuration) | ≤ 3.4 kg |
| Static power consumption | 20 W |
| Power consumption (at full load) | ≤ 32 W |
| Input voltage | AC: 100 V–240 V AC, 50/60 Hz |
| Dimensions (length x width x height) (unit: mm) | 440 x 238 x 44 |
