S5700-24TP-SI-AC
Model: S5700-24TP-SI-AC 02352360 Huawei Quidway S5700 Switch
Details: 20 10/100/1000Base-T and 4 GE Combo, AC 110/220V
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S5700-24TP-SI-AC Overview

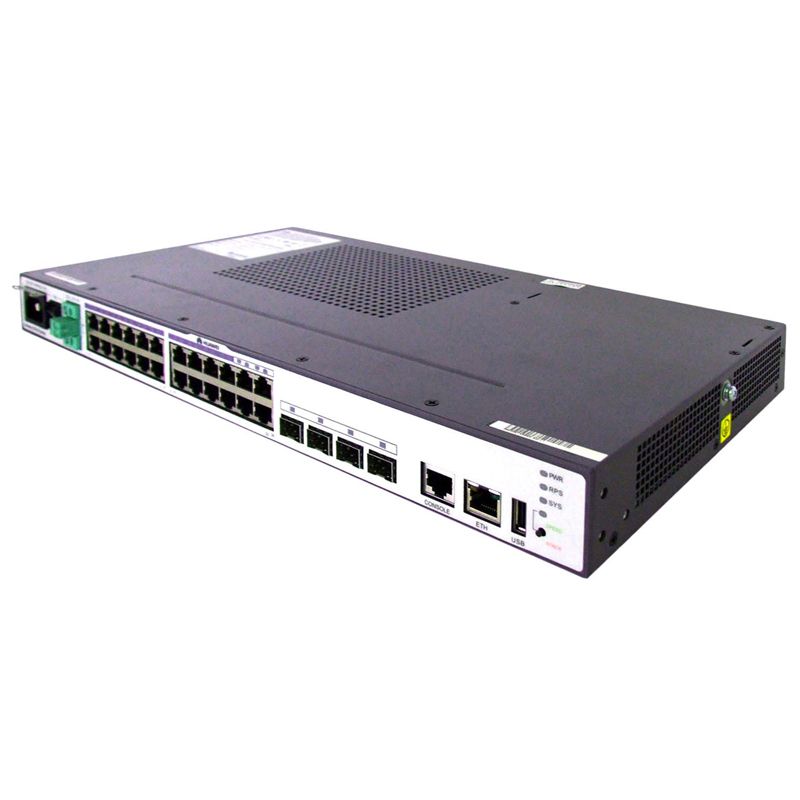

Quick Specs Figure 1 shows the appearance of S5700-24TP-SI-AC.
Table 1 shows the Quick Specs.
| Manufacturer | Huawei |
| Manufacturer Part Number | S5700-24TP-SI-AC |
| Form Factor | Fixed, Stackable |
| Switch Port | 20 GE ports, 4 GE Combo ports |
| Power Over Ethernet (PoE) | Non-POE |
| Extended slot | Provides an extended slot for a stack card |
| Max Stack bandwidth | 48Gbps |
| DRAM Memory | 256 MB |
| Flash Memory | 32 MB |
| Forwarding performance | 36Â Mpps |
| MAC address table | IEEE 802.1d compliance |
| VLAN | 4 K VLANs |
| Reliability | RRPP ring topology and RRPP multi-instance |
| IP routing | Static routing, ECMP |
| IPv6 features | Neighbor Discovery (ND) |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Security | User privilege management and password protection |
| Management and maintenance | StackingMAC Forced Forwarding (MFF)Virtual cable testPort mirroring and RSPAN (remote port mirroring)Remote configuration and maintenance by using TelnetSNMP v1/v2/v3RMONWeb NMSHGMPSystem logs and alarms of different levelsGVRPMUX VLAN |
| Power Device | Power supply – Non-PoE |
| Power Redundancy | No |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Width | 44.2cm |
| Depth | 43.6cm |
| Height | 22.0cm |
| Weight | 5.0kg |
| MTBF | 37years |
| Software Version | Standard Version |
| Service & Support | 1 year warranty |
