Name: S5700-28C-PWR-EI-AC
SKU: S5700-28C-PWR-EI-AC
Availability: InStock

S5700-28C-PWR-EI-AC

Model: S5700-28C-PWR-EI-AC Huawei S5700 Series Switch
Details: S5700-28C-PWR-EI-AC(24 Ethernet 10/100/1000 PoE+ ports,with 1 interface slot,with 500W AC power supply)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

S5700-28C-PWR-EI-AC Overview

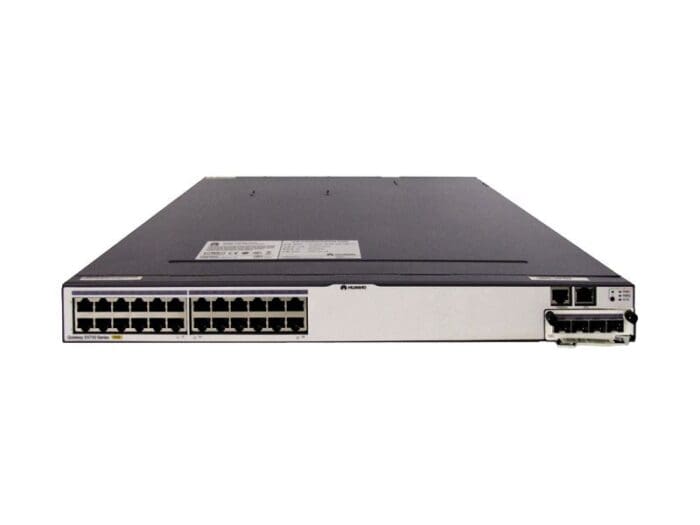

Quick Specs Figure 1 shows the appearance of S5700-28C-PWR-EI-AC.

Table 1 shows the Quick Specs.

Switching Capacity	256 Gbit/s
Forwarding Performance	96 Mpps
Fixed Ports	24 x 10/100/1,000 Base-T ports
Extended Slots	S5700C provides two extended slots, one for an uplink subcard and the other for a stack card.
MAC Address Table	IEEE 802.1d compliance32K MACMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses
VLAN	4K VLANsGuest VLAN and voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN Mapping
Reliability	RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchoverSEPERPS (G.8032)BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIMSTP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protectionE-Trunk
IP Routing	Static routing, RIPv1/v2, RIGng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, and ECMP
IPv6 Features	Neighbor Discovery (ND)Path MTU (PMTU)IPv6 ping, IPv6 tracert, and IPv6 TelnetACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol typeMLD v1/v2 snoopingIPv4 and IPv6 dual stack6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leaveMulticast forwarding in a VLAN and multicast replication between VLANsMulticast load balancing among member ports of a trunkControllable multicastPort-based multicast traffic statisticsIGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSMMSDP
QoS/ACL	Rate limiting on packets sent and received by an interfacePacket redirectionPort-based traffic policing and two-rate three-color CAREight queues on each portWRR, DRR, PQ, WRR + PQ, and DRR + PQ queue scheduling algorithmsWRED (supported by the S5710-EI)Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, sourceIP address, destination IP address, TCP/UDP port number, protocol type, and VLAN IDRate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defenseBinding of the IP address, MAC address, interface, and VLANPort isolation, port security, and sticky MACBlackhole MAC address entriesLimit on the number of learned MAC addresses802.1x authentication and limit on the number of users on an interfaceAAA authentication, RADIUS authentication, HWTACACS+ authentication, and NACSSH v2.0Hypertext Transfer Protocol Secure (HTTPS)CPU defenseBlacklist and whitelist
Management and Maintenance	iStackMAC Forced Forwarding (MFF)Virtual cable testSNMP v1/v2c/v3RMONWeb NMSSystem logs and alarms of different levelsNetStream (supported by S5710-EI)sFlow
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST)
Operating Environment	Operating temperature: 0°C to 50°CRelative humidity: 5% to 95% (non-condensing)
Input Voltage	AC:Rated voltage range: 100V to 240V AC, 50 Hz/60 Hz Maximum voltage range: 90V to 264V AC, 50 Hz/60 Hz
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Power Consumption	< 842W(PoE: 740W)
