S5700S-28P-PWR-LI-AC
Model: S5700S-28P-PWR-LI-AC – Huawei S5700 Series Switch
Details: Huawei S5700 Series Switch, 24 Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, AC 110/220V
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S5700S-28P-PWR-LI-AC Overview

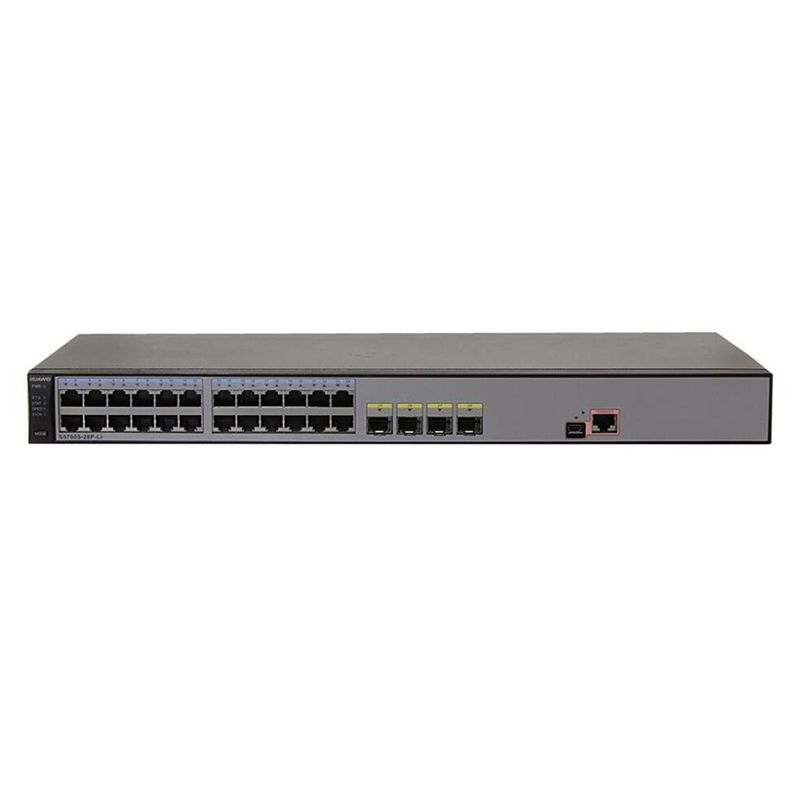

Quick Specs Figure 1 shows the appearance of S5700S-28P-PWR-LI-AC.
Table 1 shows the Quick Specs.
| Manufacturer | Huawei |
| Manufacturer Part Number | S5700S-28P-PWR-LI-AC |
| Form Factor | Fixed, Stackable |
| Switch Port | 24 GE POE ports, 4 GE SFP ports |
| Power Over Ethernet (PoE) | PoE+ |
| Max Number of Stacks | 48Gbps |
| DRAM Memory | 256 MB |
| Flash Memory | 32 MB |
| Forwarding performance | 42 Mpps |
| MAC address table | IEEE 802.1d compliance |
| VLAN | 4 K VLANs |
| Reliability | RRPP ring topology and RRPP multi-instance |
| IP routing | Static routing, ECMP |
| IPv6 features | Neighbor Discovery (ND) |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Security | User privilege management and password protection |
| Power Device | Power supply – Non-PoE |
| Power Redundancy | No |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Width | 42cm |
| Depth | 31cm |
| Height | 4.36cm |
| Weight | 4.9kg |
| MTBF | 37years |
| Service & Support | 1 year warranty |
