Model: S5720-52P-EI-AC Huawei S5700 Series Switch
Details: S5720-52P-EI-AC(48 Ethernet 10/100/1000 ports,4 Gig SFP,AC 110/220V)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

SKU: S5720-52P-EI-AC Category:
Description

S5720-52P-EI-AC Overview

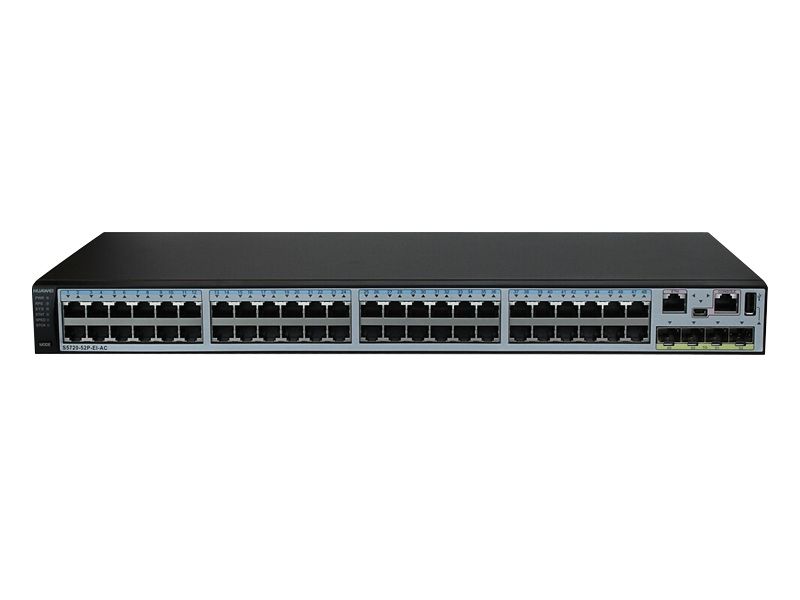

Quick Specs Figure 1 shows the appearance of S5720-52P-EI-AC.

Table 1 shows the Quick Specs.

Fixed ports S5720-52P-EI-AC: 48Ă—10/100/1000Base-T, 4 Gig SFP, 2 QSFP+
Extended slot NA
MAC addresstable IEEE 802.1d64K MAC address entriesMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses
VLAN 4K VLANsGuest VLAN and voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN mappingVLAN-based transparent transmission of protocol packets
Jumbo frame 12K
Ethernet loopprotection RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchoverSEPERPS (G.8032)STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protectionBPDU tunnel
MPLS MPLS L3VPNMPLS L2VPN (VPWS/VPLS)MPLS-TEMPLS QoS
IP routing Static routing, RIPv1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing
IPv6 features Neighbor Discovery (ND)Path MTU (PMTU)IPv6 ping, IPv6 tracert, and IPv6 Telnet6to4 tunnel, ISATAP tunnel, and manually configur ed tunnelACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or pr otocol typeMLD v1/v2 snooping
Multicast IGMP v1/v2/v3 snooping and IGMP fast leaveMulticast forwarding in a VLAN and multicast replication between VLANsMulticast load balancing among member ports of a trunkControllable multicastPort-based multicast traffic statisticsIGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSMMSDPMVPN
QoS/ACL Rate limiting on packets sent and received by a portPacket redirectionPort-based traffic policing and two-rate three-color CAREight queues on each portWRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithmsWREDRe-marking of the 802.1p priority and DSCP priorityPacket filtering at Layer 2 to Layer 4, filtering out invalid fr ames based on the source MAC address,destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type,and VLAN IDRate limiting in each queue and traffic shaping on ports1:1, N:1, N:4 port mirroring
Security Hierarchical user management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defenseBinding of the IP address, MAC address, port number, and VLAN IDPort isolation, port security, and sticky MACMFFBlackhole MAC address entriesLimit on the number of learned MA C addressesIEEE 802.1x authentication and limit on the number of users on a portAAA authentication, RADIUS authentication, and HWTACACS authenticationNACSSH v2.0HTTPSCPU defenseBlacklist and whitelistAttack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and M LD packets
Reliability Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag)ITU-Y.1731BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routeVRRP4, VRRP6
Super VirtualFabric (SVF) Plug-and-play SVF clientAutomatic software and patch loading to clientsOne-click and automatic delivery of service configurationsIndependent client running
TWAMP Two-way IP link performance measurementMeasurement on two-way packet delay, one-way packet loss rate, and one-way packet jitter
ManagementandMaintenance iStackVirtual cable testSNMP v1/v2c/v3RMON/RMON2Web-based NMSSystem logs and alarms of different levelssFlow802.3az Energy Efficient Ethernet (EEE)
Interoperability VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVSTLink-type Negotiation Protocol (LNP), similar to DTPVLAN Central Management Protocol (VCMP), similar to VTP
Operatingenvironment Operating temperature:0-1800 m altitude: 0oC to 45oC1800-5000 m altitude: The operating temperature reduces by 1oC every time the altitude increases by 220m.Relative humidity: 5% to 95% (non-condensing)
Input voltage AC:Rated voltage range: 100 V to 240 V A C, 50 Hz to 60 HzMaximum voltage range: 90 V to 264 V A C, 47 Hz to 63 HzDC:Rated voltage range: –48 V to –60 V, DCMaximum voltage range: –36 V to –72 V, DC
Dimensions (Wx D x H, mm) 442Ă—220Ă—43.6
Front powerinput S5720-52P-EI-AC: No
Typical powerconsumption S5720-52P-EI-AC: 51.1 W
