S5720-56C-PWR-HI-AC1

Original price was: $2,889.15.Current price is: $2,744.69.

Details: S5720-56C-PWR-HI Bundle(48 Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+,with 2 interface slots,with 580W AC power supply)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: S5720-56C-PWR-HI-AC1 Categories: , ,
Description

S5720-56C-PWR-HI-AC1 Overview

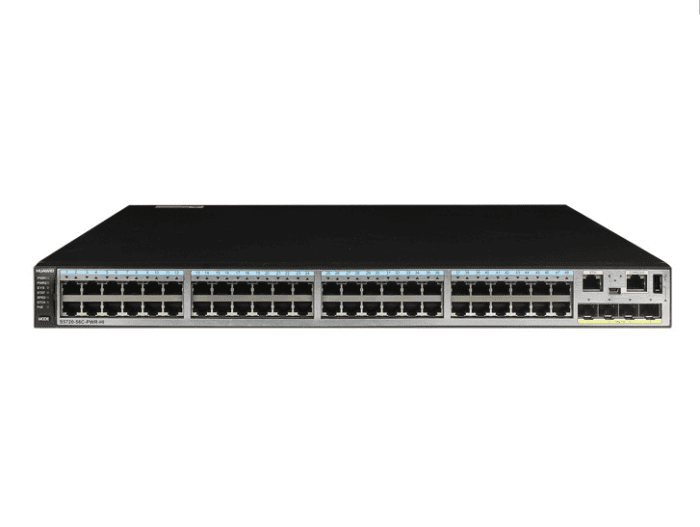

Quick Specs Figure 1 shows the appearance of S5720-56C-PWR-HI-AC1.

Table 1 shows the Quick Specs.

Fixed Ports 48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+
Extended Slots One port extended slot with optional subcard 4 x 10 GE SFP+One slot reserved for the stack card
MAC Address Table IEEE 802.1d standards compliance128K MAC address entriesMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses
VLAN 4K VLANsGuest VLAN, Voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and portsVLAN mapping
Wireless AC AP access control, AP domain management, and AP configuration template managementRadio frequency management, unified static configuration, and dynamic centralized managementWLAN basic services, QoS, security, and user managementCAPWAP, Tag/terminal location, and spectrum analysis
Reliability RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchoverSEPG.8032 Ethernet Ring Protection Switching (ERPS)BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIMSTP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protection
MPLS MPLS L3VPNMPLS L2VPN (VPWS/VPLS)MPLS-TEMPLS QoS
IP Routing Static routes, RIPv1/v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy
Interoperability VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVSTLink-type Negotiation Protocol (LNP), similar with DTPVLAN Central Management Protocol (VCMP), similar with VTP
IPv6 Features Neighbor Discover (ND)PMTUIPv6 Ping, IPv6 Tracert, IPv6 TelnetACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol typesMulticast Listener Discovery snooping (MLDv1/v2)
Multicast IGMPv1/v2/v3 snooping and IGMP prompt leaveMulticast forwarding in a VLAN and multicast replication between VLANsMulticast load balancing among member ports of a trunkControllable multicastPort-based multicast traffic statistics collectionIGMPv1/v2/v3, PIM-SM, PIM-DM, and PIM-SSMMSDP
QoS/ACL Rate limitation in the inbound and outbound directions of a portPacket redirectionPort-based traffic policing and two-rate and three-color CAREight queues on each portDRR, SP and DRR + SP queue scheduling algorithmsWREDHQoSRe-marking of the 802.1p and DSCP fields of packetsPacket filtering on Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, or VLANQueue-based rate limitation and shaping on ports
Security Hierarchical user management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defenseBinding of the IP address, MAC address, interface number, and VLAN IDPort isolation, port security, and sticky MACMAC Forced Forwarding (MFF)Blackhole MAC address entriesLimitation on the number of learned MAC addressesIEEE 802.1x authentication and limitation on the number of users on a portAAA authentication, RADIUS authentication, HWTACACS authentication, and NACSSH V2.0HTTPSCPU protectionBlacklist and whitelistDHCP relay/server/snooping/client/securityMACSec
OAM EFM OAMCFM OAMY.1731 performance monitoring
Super Virtual Fabric (SVF) Working as the parent node to vertically virtualize downlink switches and APs as one device for managementSupports a two-layer client architecture
iPCA Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratioCollection of statistics on the number of lost packets and packet loss ratio at network and device levels
Management and Maintenance iStackVirtual Cable TestSNMPv1/v2c/v3RMONNetwork management system (NMS) and Web managementSystem logs and multi-level alarmsGVRPMUX VLAN802.3az Energy Efficient Ethernet (EEE)NetStreamDying Gasp upon power-off
Operating Environment Operating temperature: 0°C to 45°CRelative humidity: 5% to 95% (non-condensing)
Dimensions (W x D x H) 442.0 mm x 420.0 mm x 44.4 mmWhen a 1,150W power module is installed, it extrudes out from the chassis. Therefore, the total depth of the switch changes to 507 mm
Input Voltage AC rated voltage: 100V to 240V, 50 Hz/60 HzMaximum voltage range: 90V to 264V, 47 Hz/63 Hz
Power Consumption Without PD: < 188.74W,With PD: < 1,739W (device: 299W, PD: 1,440W)
