S5720-56PC-EI-AC
Model: S5720-56PC-EI-AC Huawei S5700 Series Switch
Details: S5720-56PC-EI-AC(48 Ethernet 10/100/1000 ports,4 Gig SFP,with 1 interface slot,with 150W AC power supply)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S5720-56PC-EI-AC Overview

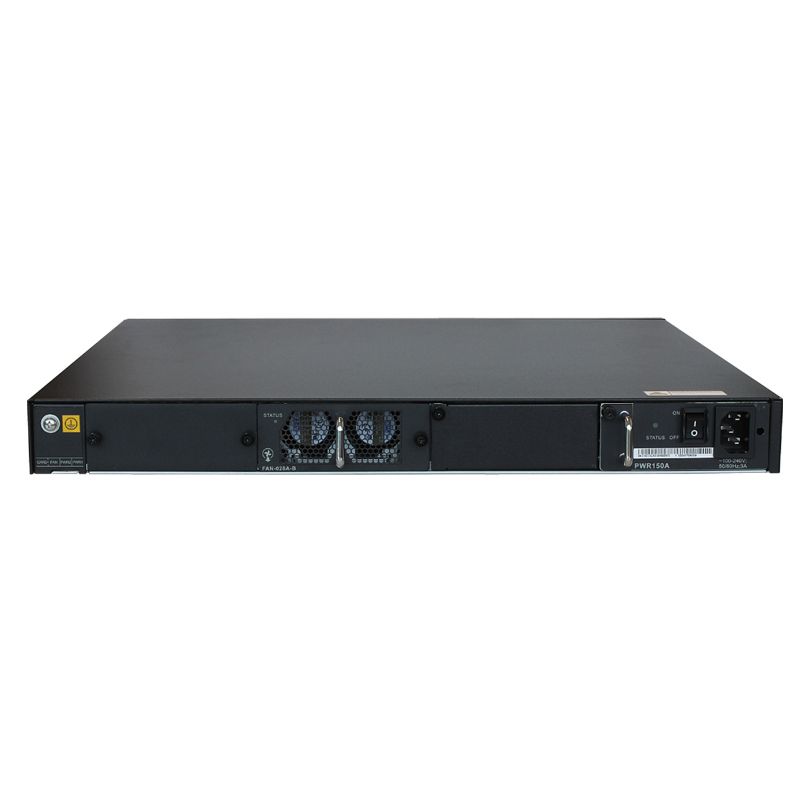

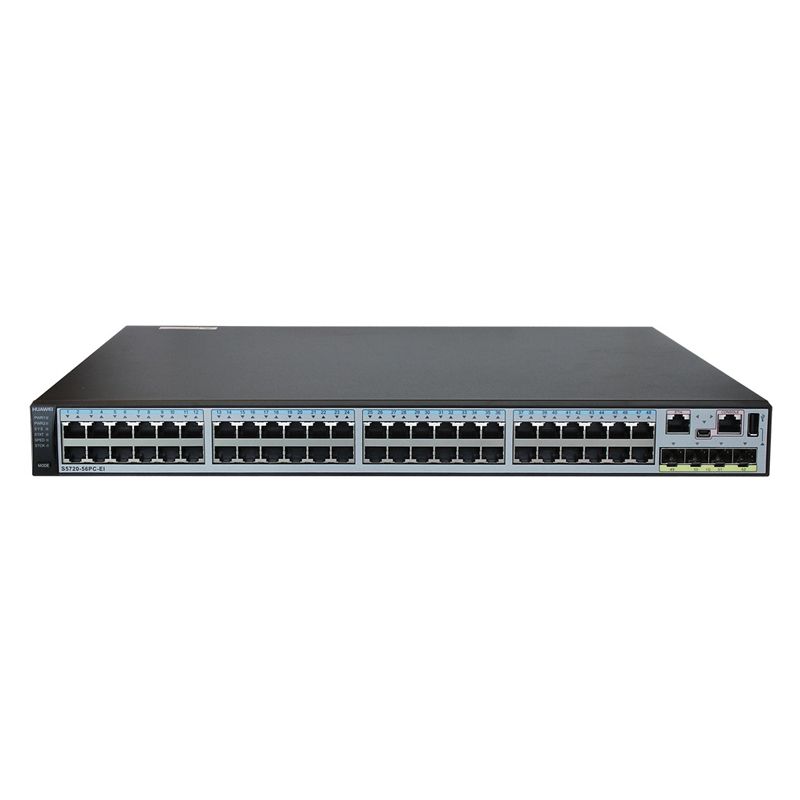

Quick Specs Figure 1 shows the appearance of S5720-56PC-EI-AC.
Table 1 shows the Quick Specs.
| Fixed Port | 48 × Ethernet 10/100/1000 ports4 × Gig SFP |
| MAC address table | IEEE 802.1d compliance |
| VLAN | 4K VLANs |
| Ring protection | RRPP ring topology and RRPP multi-instance |
| Reliability | Ethernet OAM (IEEE 802.3ah and 802.1ag) |
| MPLS features | MPLS L3VPN |
| IP routing | Static routing |
| IPv6 features | Neighbor Discovery (ND) |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Security | User privilege management and password protection |
| Access Security | DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security |
| Management and maintenance | Virtual cable test |
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
| Operating environment | Operating temperature: 0℃–50℃ |
| Input voltage | AC:Rated voltage range: 100 V to 240 V AC, 50/60 HzMaximum voltage range: 90 V to 264 V AC, 47/63 Hz |
| Dimensions (W x D x H) | 44.2 cm x 42 cm x 4.44 cm |
| Power Consumption | S5720-56PC-EI-AC < 85.7W |
