S5720I-12X-SI-AC
Model: S5720I-12X-SI-AC – Huawei S5700 Series Switches
Details: S5720I-12X-SI-AC, Huawei S5700 Series Switches
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
S5720I-12X-SI-AC Overview

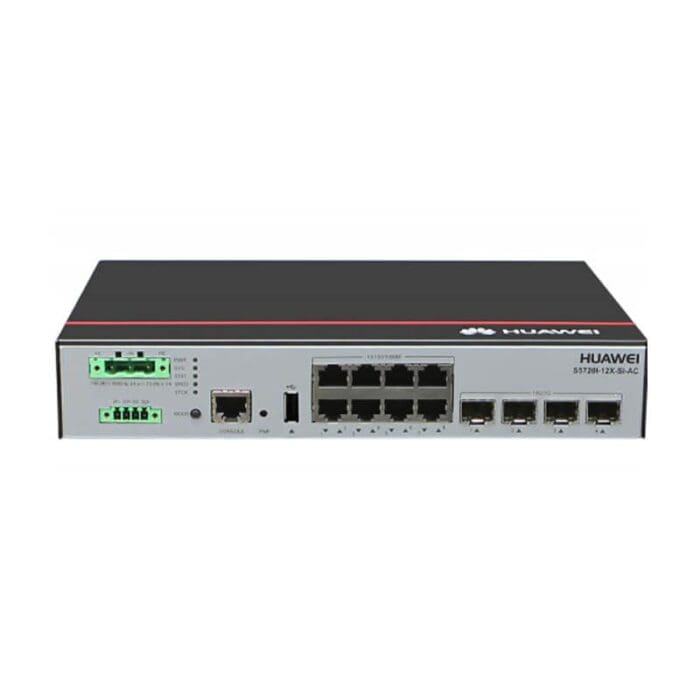

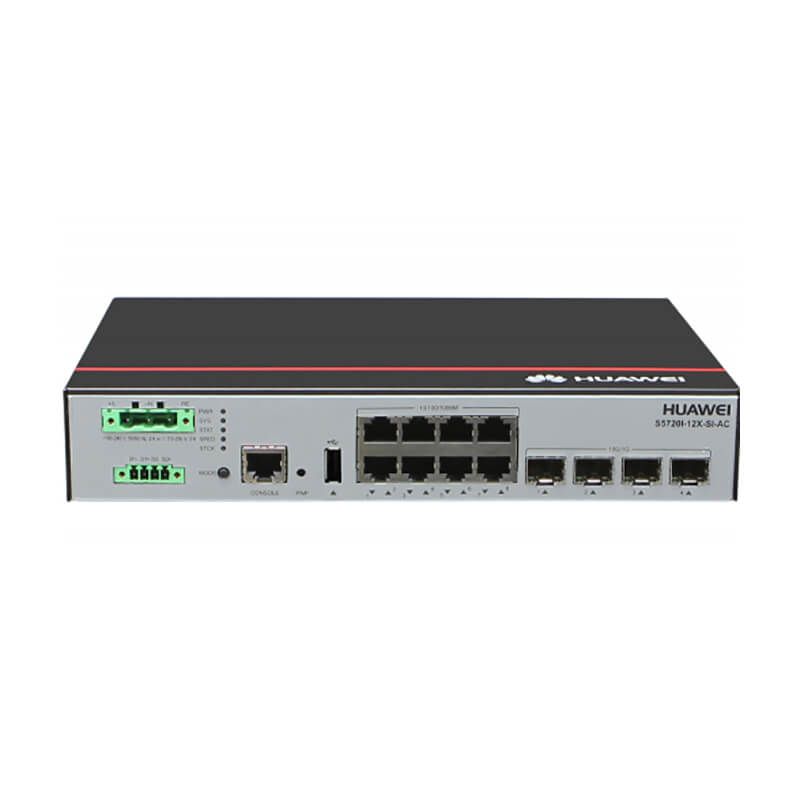

Quick Specs Figure 1 shows the appearance of S5720I-12X-SI-AC.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | S5720I-12X-SI-AC |
| Product Series | S5700 |
| Device Type | Switch – 12 ports – L3 – Managed |
| Enclosure Type | Rack-mountable 1U |
| Ports | 12 x 10/100/1000 Ethernet Ports, 4 of which are dual-purpose 10/100/1000 or SFP |
| Performance | Switching capacity: 208 Gbps |
| Throughput | Up to 77.4 Mpps |
| MAC Address Table Size | 16K entries |
| Routing Protocol | Static routing, RIP-1, RIP-2, BGP-4, IS-IS, OSPF, PIM-SM, PIM-DM |
| Jumbo Frame Support | Up to 9216 bytes |
| RAM | 512 MB |
| Flash Memory | 512 MB |
| Power Over Ethernet (PoE) | Not_supported |
| Power Supply | AC 120/230 V (50/60 Hz) |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s |
| Networking / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, ARP, BOOTP, DHCP |
| Management Features | CLI, SNMP, RMON, Web Browser |
| Environmental Parameters | Operating temperature: -5��C to +50��C, Storage temperature: -40��C to +70��C, Operating humidity: 10% to 90% non-condensing |
