S5720S-28P-SI-AC - Image 1
Click to enlarge
CE6850-48T6Q-HI-B
CE6850-48T6Q-HI-B $0.00
Back to products
S5720-28X-PWR-SI-DC
S5720-28X-PWR-SI-DC Original price was: $1,349.80.Current price is: $1,282.31.

S5720S-28P-SI-AC

Original price was: $940.00.Current price is: $893.00.

Model: Huawei S5720S-28P-SI-AC(24 Ethernet 10/100/1000 ports,4 Gig SFP,AC 110/220V)
Details: Huawei S5720S-28P-SI-AC(24 Ethernet 10/100/1000 ports,4 Gig SFP,AC 110/220V)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: S5720S-28P-SI-AC Categories: , ,
Description

S5720S-28P-SI-AC Overview

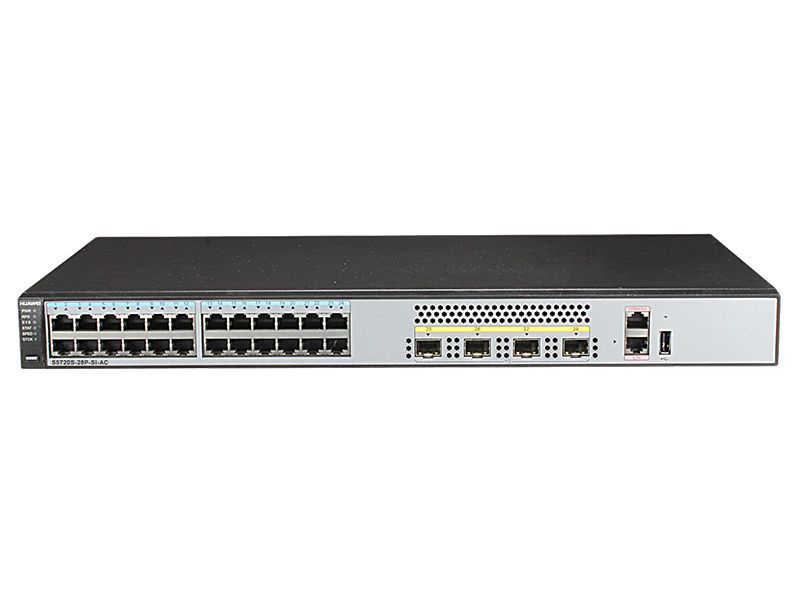

Quick Specs Figure 1 shows the appearance of S5720S-28P-SI-AC.

Table 1 shows the Quick Specs.

Fixed  Ports 24 x Ethernet 10/100/1,000 portsP series: 4 x Gig SFPX series: 4 x 10 Gig SFP+
Extended Slot N/A
MAC Address Table IEEE 802.1d compliance16K MAC address entriesMAC address learning and agingStatic, dynamic, and black hole MAC address entriesPacket filtering based on source MAC addresses
VLAN 4K VLANsGuest VLAN and voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN Mapping
Ring Protection RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchoverSEPERPS (G.8032)STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protection
IP Routing Static route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, IS-IS, IS-ISv6, VRRP, and VRRP6
IPv6 Features Neighbor Discovery (ND)Path MTU (PMTU)IPv6 ping, IPv6 tracert, and IPv6 TelnetACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol typeMLD v1/v2 snooping6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast PIM DM, PIM SM, PIM SSMIGMP v1/v2/v3 snooping and IGMP fast leaveMulticast forwarding in a VLAN and multicast replication between VLANsMulticast load balancing among member ports of a trunkControllable multicastPort-based multicast traffic statistics
QoS/ACL Rate limiting on packets sent and received by an interfacePacket redirectionPort-based traffic policing and two-rate three-color CAREight queues on each portWRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityPacket filtering at Layer 2 to Layer 4, filtering out invalid frames based on the sourceMAC address, destination MAC address, source IP address, destination IP addressTCP/UDP port number, protocol type, and VLAN IDRate limiting in each queue and traffic shaping on ports
Security User privilege management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defenseBinding of the IP address, MAC address, interface, and VLANPort isolation, port security, and sticky MACBlackhole MAC address entriesMAC Forced Forwarding (MFF)Limit on the number of learned MAC addresses802.1x authentication and limit on the number of users on an interfaceAAA authentication, RADIUS authentication, HWTACACS+ authentication, and NACSSH v2.0Hypertext Transfer Protocol Secure (HTTPS)CPU defenseBlacklist and whitelist802.1x authentication, MAC address authentication, and combined authentication on a per port basisPortal authentication on a per VLANIF interface basisMACSec
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configurationAutomatically loading the system software package and patches of clientsOne-click and automatic delivery of service configurationsSupports independent running client
Management and Maintenance iStackVirtual cable testSNMP v1/v2c/v3RMONWeb-based NMSSystem logs and alarms of different levelssFlow
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)Supports LNP (Similar to DTP)Supports VCMP (Similar to VTP)
Surge Protection Surge protection capability of service ports: 6 kV
Operating Environment Operating temperature:Zero to 1,800m altitude: 0°C to 45°C1,800m to 5,000m altitude: Operating temperature reduces by 1°C for every 220m increase in altitudeRelative humidity: 5% to 95% (non-condensing)
Input Voltage AC:Rated voltage range: 100V to 240V, 50 Hz/60 HzMaximum voltage range: 90V to 264V, 50 Hz/60 Hz
Dimensions (W x D x H) 442 mm x 220 mm x 43.6 mm
Typical Power Consumption 20.2W

Get more information
Do you have any question about the S5720S-28P-SI-AC?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Huawei certified engineer under customers’ permission.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
