S5730-36C-HI
Model: S5730-36C-HI – Huawei S5730 Series Switches
Details: S5730-36C-HI (24 x 10/100/1,000 BASE-T ports, 4 x 10 GE SFP+ ports, 1 expansion slot, without power module)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S5730-36C-HI Overview

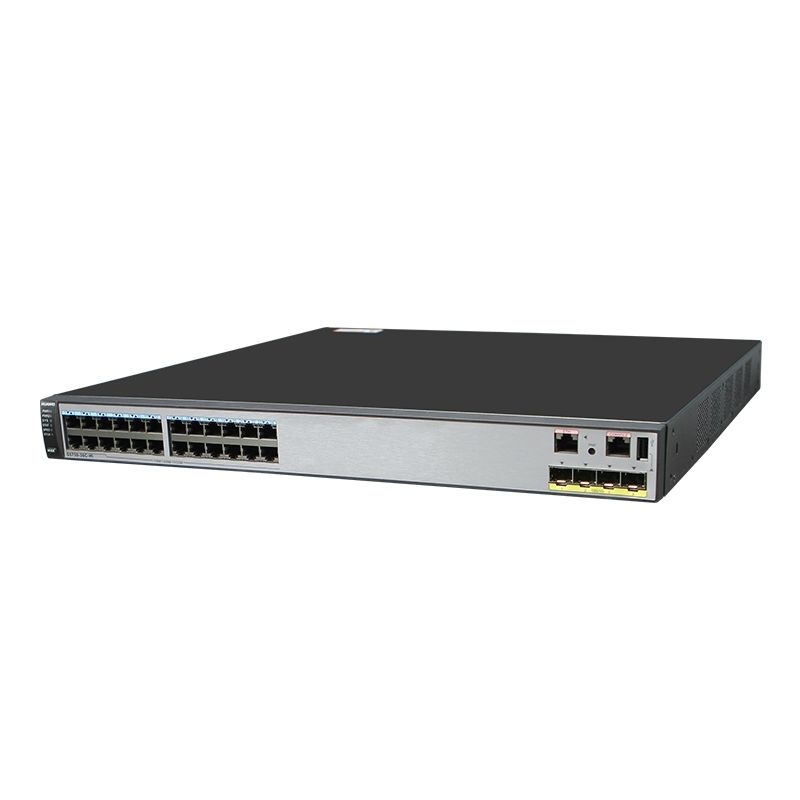

Quick Specs Figure 1 shows the appearance of S5730-36C-HI.
Table 1 shows the Quick Specs.
| Fixed Ports | 24 x 10/100/1,000 Base-T ports, 4 x 10 GE SFP+ ports |
| Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm |
| Extended Slots | One extended slot, supporting 8-port 10 GE electrical, 8-port 10 GE optical, or 2-port 40 GE optical interface card |
| Input Voltage | AC:Rated AC voltage: 100V to 240V; 50/60 HzMax. AC voltage: 90V to 264V; 47 Hz to 63 Hz |
| Maximum Power Consumption(without cards) | 74W |
| Operating Temperature | 0m to 1,800m altitude: 0°C to 45°C1,800m to 5,000m altitude: The operating temperature reduces by 1ºC for each 220m increase in altitude. |
| Relative Humidity | 5% to 95% (non-condensing) |
| Heat Dissipation | Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans |
| MAC Address Table | IEEE 802.1d standards compliance |
| VLAN | 4094 VLANs |
| Wireless Service | AP access control, AP domain management, and AP configuration template management |
| Ethernet Loop Protection | RRPP ring topology and RRPP multi-instance |
| MPLS | MPLS L3VPN |
| IP Routing | Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy |
| Interoperability | VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST |
| IPv6 Features | Neighbor Discover (ND) |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| QoS/ACL | Rate limitation in the inbound and outbound directions of a port |
| Security | Hierarchical user management and password protection |
| Reliability | LACP |
| VXLAN | VXLAN L2 and L3 gateways |
| Super Virtual Fabric (SVF) | The S5730-HI can work as the parent node to vertically virtualize downlink switches and APs as one device for management |
| iPCA | Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio |
| TWAMP | Two-way IP link performance measurement |
| Management and Maintenance | iStack |
