S5730-68C-PWR-SI-AC
Model: S5730-68C-PWR-SI-AC – Huawei S5730 Series Switches
Details: S5730-68C-PWR-SI Bundle (48 x Ethernet 10/100/1,000 ports, 4 x 10 Gig SFP+, PoE+, with 1 interface slot, with 500W AC power supply)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S5730-68C-PWR-SI-AC Overview

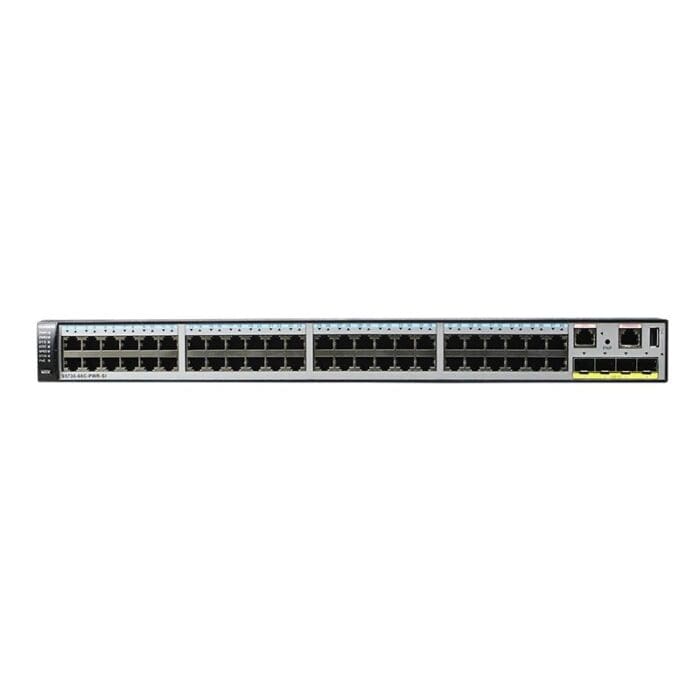

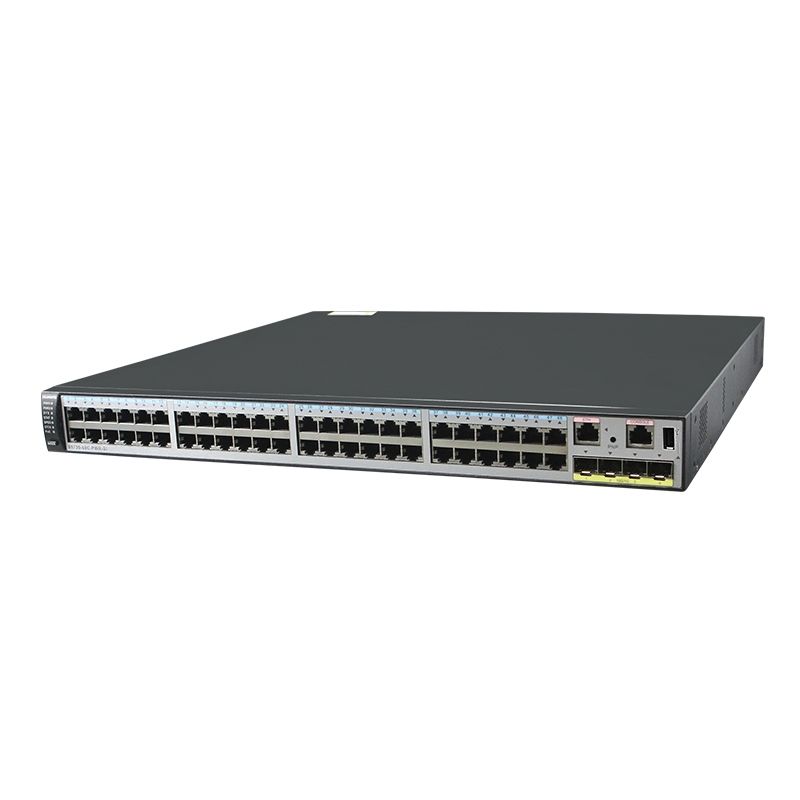

Quick Specs Figure 1 shows the appearance of S5730-68C-PWR-SI-AC.
Table 1 shows the Quick Specs.
| Fixed Ports | 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+ |
| PoE Supported | PoE+ Supported |
| MAC Address Table | IEEE 802.1d compliance |
| Dimensions (W x DÂ x H) | 442 mm x 420 mm x 44.4 mm |
| Slot | One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card |
| Input Voltage | AC:Rated AC voltage: 100V to 240V; 50/60 HzMax AC voltage: 90V to 264V; 47 Hz to 63 Hz |
| Maximum Power Consumption | Without card and PD: 68.3WWithout card and full PoE load: 925W (switch power consumption: 185W, PoE: 740W) with AC 500W/DC 650W power supply |
| Typical Power Consumption (without PD)Operating Temperature | Without card: 50.1W |
| Relative Humidity | 5% to 95% (non-condensing) |
| Heat Dissipation | Heat dissipation using fans supporting intelligent speed adjustment |
| Surge Protection | Surge protection capability of service ports: 7 kV |
| VLAN | 4094 VLANs |
| Reliability | RRPP ring topology and RRPP multi-instance |
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6 |
| Multicast | PIM DM, PIM SM, and PIM SSM |
| IPv6 Features | Neighbor Discovery (ND) |
| QoS/ACL | Rate limiting on packets sent and received by a port |
| Security | Hierarchical user management and password protection |
| SVF | Plug-and-play SVF client |
| OAM | Software OAM |
| Management and Maintenance | iStack (using service ports as stack ports) |
| Interoperability | Supports VBST (compatible with PVST/PVST+/RPVST) |
