-5%
S5730S-68C-EI-AC
Model: S5730S-68C-EI-AC – Huawei S5730-EI Switch
Details: Huawei S5730-EI switch, 48 x Ethernet 10/100/1,000 ports, 8 x 10 Gig SFP+, with AC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S5730S-68C-EI-AC Overview

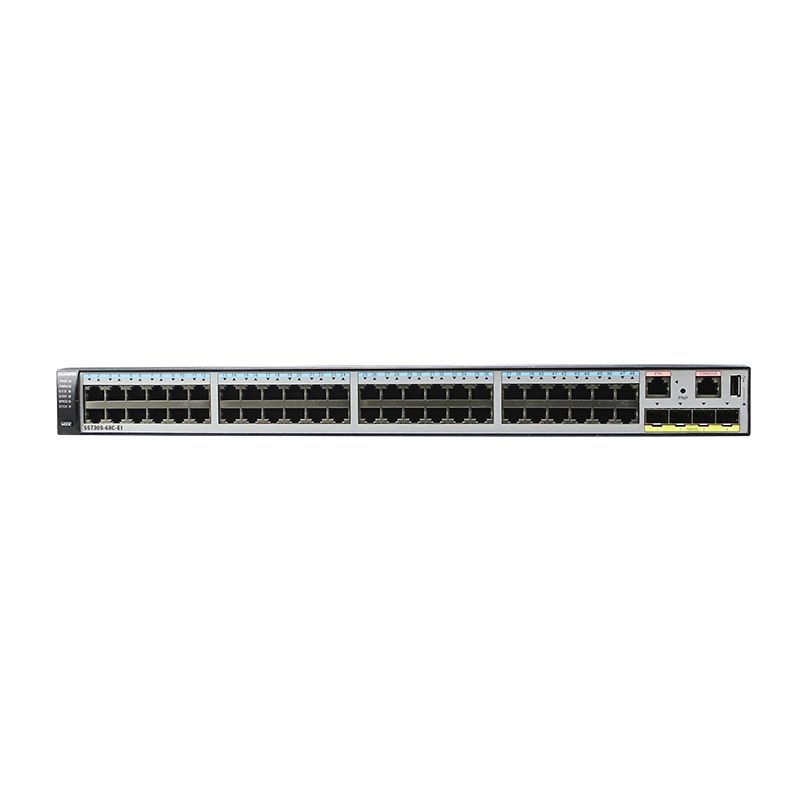

Quick Specs Figure 1 shows the appearance of S5730S-68C-EI-AC.
Table 1 shows the Quick Specs.
| Item | Description |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run thedisplay versioncommand. |
| Mean time between failures (MTBF) | 46.53 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common modeUsing DC power modules: ±1 kV in differential mode, ±2 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.) |
| Stack ports | Any 10GE SFP+ or 40GE QSFP+ portsPorts on the 2-port QSFP+ rear stack card |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz-48 V DC to -60 V DC |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz-36 V DC to -72 V DC |
| Maximum power consumption (100% throughput, full speed of fans) | 65.4 W (without card) |
| Typical power consumption (30% of traffic load) | 42.3 W (without card) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 58.9 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | AC power modules configured: 0-5000 m (0-16404 ft.)DC power modules configured: 0-2000 m (0-6562 ft.) |
| Certification | EMC certificationSafety certificationManufacturing certification |
