S5731-H48T4XC-B
Model: S5731-H48T4XC-B – Huawei S5700 Series Switches
Details: S5731-H48T4XC-B, Huawei S5700 Series Switches
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S5731-H48T4XC-B Overview

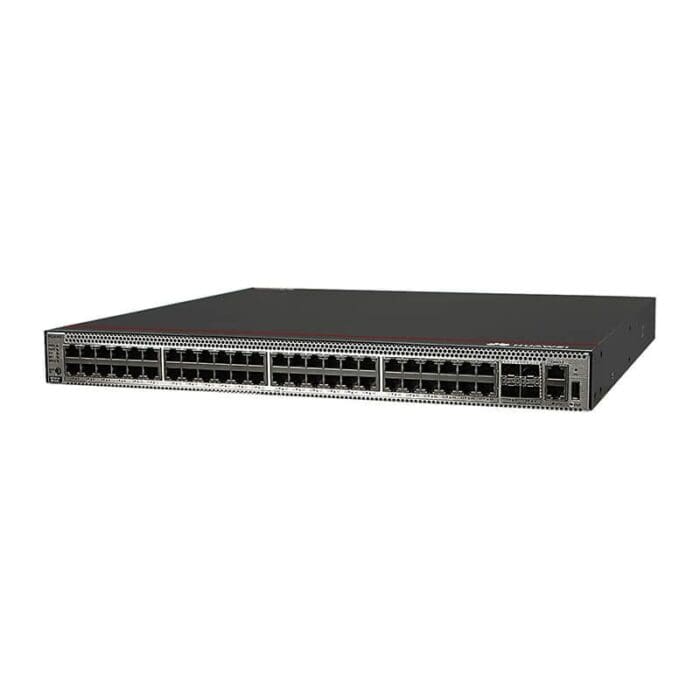

Quick Specs Figure 1 shows the appearance of S5731-H48T4XC-B.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Series | S5700 |
| Model Number | S5731-H48T4XC-B |
| Device Type | Switch – 48 ports – L3 – Managed |
| Enclosure Type | Rack-mountable 1U |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 192 GbpsForwarding performance: 36 Mpps |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing, RIP-1, RIP-2, RIPng |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Power Over Ethernet (PoE) | PoE+ |
| VLAN Support | Yes |
| Quality of Service (QoS) | Advanced QoS features |
| Management | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH |
| RAM | 512 MB |
| Flash Memory | 512 MB |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliance Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP) |
| Environmental Parameters | Operating temperature: 0��C to 45��CStorage temperature: -40��C to +70��C |
| Power Supply | Included |
