S5731S-S24P4X-A

Original price was: $820.00.Current price is: $779.00.

Model: S5731S-S24P4X-A – Huawei S5700 Series Switches
Details: Huawei S5731S-S switch, 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 Gig SFP+, PoE+
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: S5731S-S24P4X-A Categories: , ,
Description

S5731S-S24P4X-A Overview

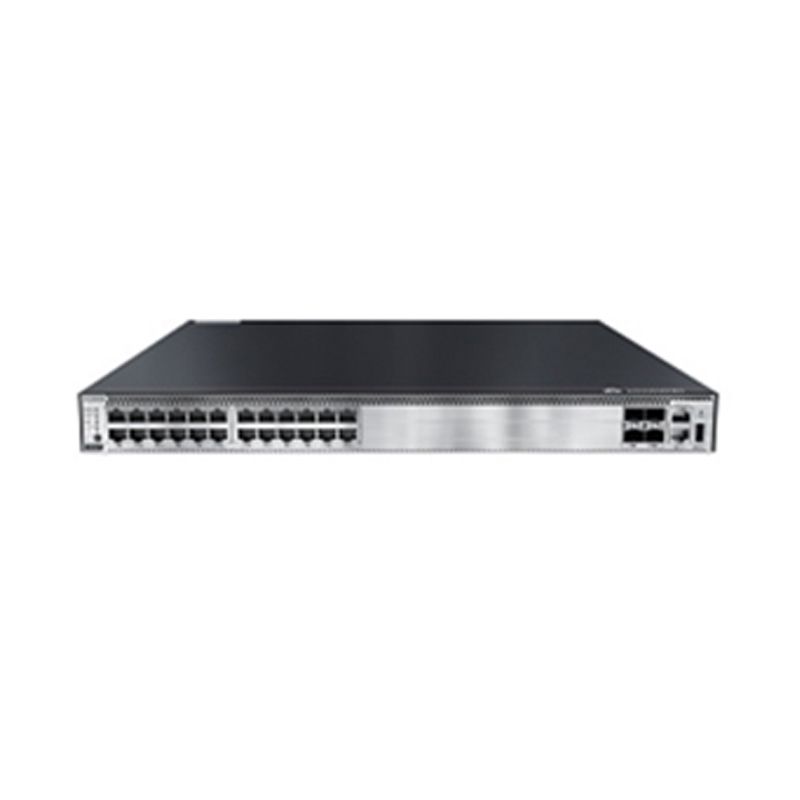

Quick Specs Figure 1 shows the appearance of S5731S-S24P4X-A.

Table 1 shows the Quick Specs.

Memory (RAM) 4 GB
Flash 1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 57.21 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D) • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)• Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging) 9.7 kg (21.38 lb)
Stack ports 10GE SFP+ ports on the front panel
RTC Supported
RPS Not supported
PoE Supported
Rated voltage range • AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz• High-Voltage DC input: 240 V DC
Maximum voltage range • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz• High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput, full speed of fans) • Not providing the PoE function: 121 W• 100% PoE loads: 977 W (PoE: 720 W)
Typical power consumption (30% of traffic load, tested according to ATIS standard) 95 W
Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 62.3 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certificationSafety certificationManufacturing certification
Part number 02353AHY
