S5731S-S24T4X-A

Original price was: $541.00.Current price is: $513.95.

Model: S5731S-S24T4X-A – Huawei S5731 Series Switches
Details: Huawei S5731 switch, 2410/100/1000Base-T ports,410G SFP ports, 160W AC Power Supply, Distribution model
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: S5731S-S24T4X-A Categories: , ,
Description

S5731S-S24T4X-A Overview

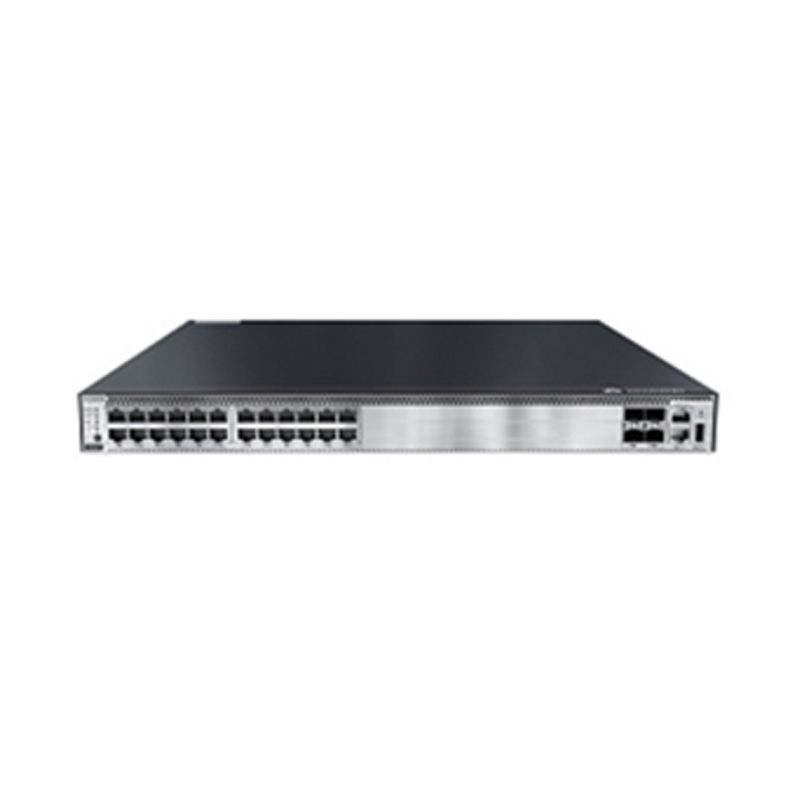

Quick Specs Figure 1 shows the appearance of S5731S-S24T4X-A.

Table 1 shows the Quick Specs.

Memory (RAM) 4 GB
Flash 1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 57.73 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode• Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)• Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging) 9.35 kg (20.61 lb)
Stack ports 10GE SFP+ ports on the front panel
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range • AC input: 100 V AC to 240 V AC, 50/60 Hz• High-Voltage DC input: 240 V DC• DC input: -48 V DC to -60 V DC
Maximum voltage range • AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz• High-Voltage DC input: 190 V DC to 290 V DC• DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 114 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 88 W
Operating temperature -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 57.5 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification • EMC certification• Safety certification• Manufacturing certification
Part number 02353AHV
