C9300X-12Y-A Original price was: $6,756.00.Current price is: $6,418.20.
Back to products
S5735-L48P4X-A1 Original price was: $824.00.Current price is: $782.80.

S5735-L24T4S-A1

Original price was: $276.00.Current price is: $262.20.

Model: S5735-L24T4S-A1-Huawei S5700 Series Switches
Details: CloudEngine S5735-L24T4S-A1 (24*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: S5735-L24T4S-A1 Categories: , ,
Description

S5735-L24T4S-A1 Overview

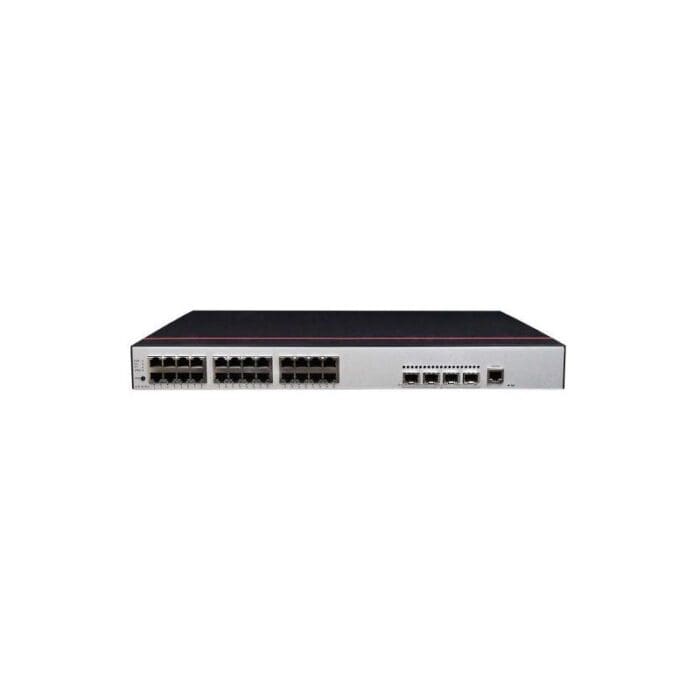

Quick Specs Figure 1 shows the appearance of S5735-L24T4S-A1.

Table 1 shows the Quick Specs.

Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Typical power consumption [W] 32.7 W
Typical heat dissipation [BTU/hour] 111.58 BTU/hour
Maximum power consumption [W] 47.6 W
Maximum heat dissipation [BTU/hour] 162.42 BTU/hour
MTBF [year] 66.16 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 39 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 27.2 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules)-5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)
Short-term operating temperature [°C(°F)] Not supported
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).The switch cannot be started when the ambient temperature is lower than 0°C (32°F).The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 2 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported
Certification EMC certificationSafety certificationManufacturing certification
