S5735-S24T4X-I

Original price was: $1,545.00.Current price is: $1,467.75.

Model: Huawei CloudEngine S5735-S-I series extended-temperature switches
Details: S5735-S24T4X-I is the Huawei S5735-S switch with 24 x 10/100/1000BASE-T ports and 4 x 10 GE SFP+ ports.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: S5735-S24T4X-I Categories: , ,
Description

S5735-S24T4X-I Overview

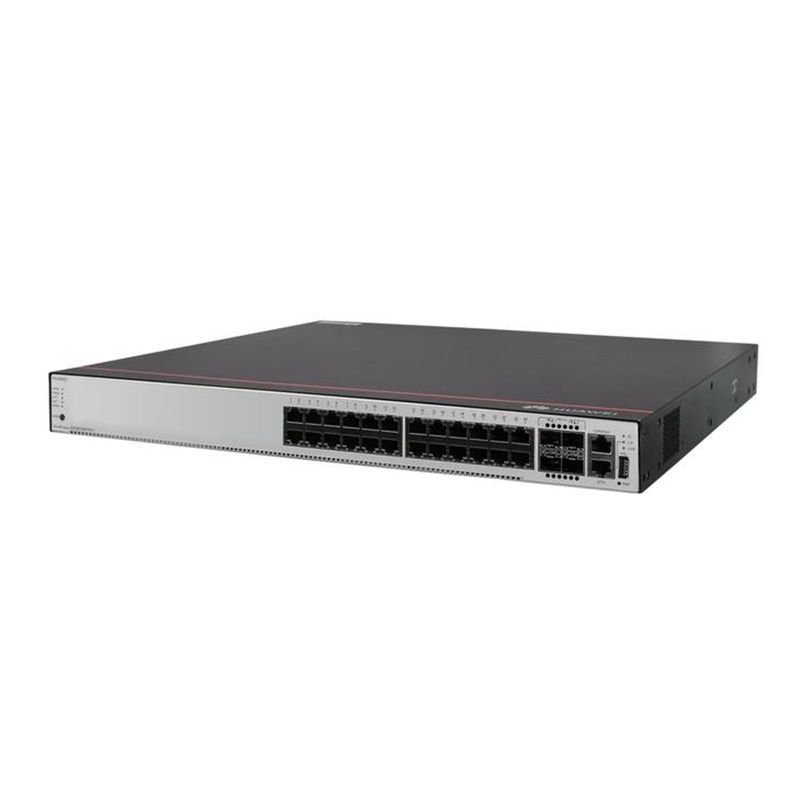

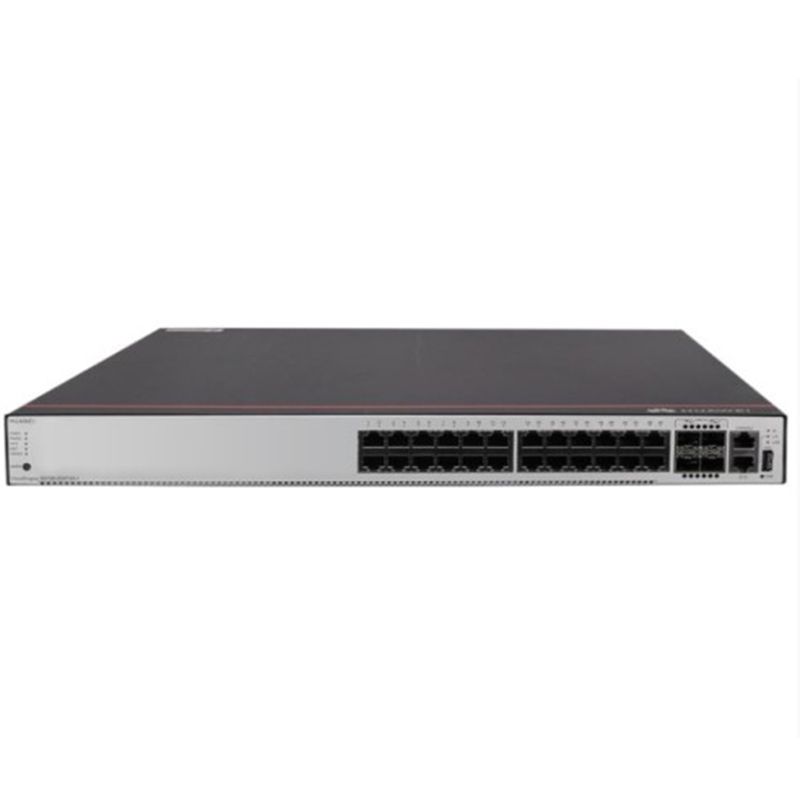

Quick Specs Figure 1 shows the appearance of S5735-S24T4X-I.

Table 1 shows the Quick Specs.

Item Description
Memory (RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run thedisplay versioncommand.
Mean time between failures (MTBF) 69.42 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common modeUsing DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.)
Stack ports Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions)
RTC Supported
RPS Not supported
PoE Not supported
Rated voltage range AC input: 100 V AC to 240 V AC, 50/60 HzHigh-Voltage DC input: 240 V DCDC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 264 V AC, 47 Hz to 63 HzHigh-Voltage DC input: 190 V DC to 290 V DCDC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 46 W
Typical power consumption (30% of traffic load) 31 W
Operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 58.9 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certificationSafety certificationManufacturing certification
