S5736-S48S4X-D

Name: S5736-S48S4X-D
SKU: S5736-S48S4X-D
Price: 14428.60 USD
Availability: InStock

Original price was: $15,188.00.Current price is: $14,428.60.

Model: S5736-S48S4X-D – Huawei CloudEngine S5736-S Series All-Optical Switches
Details: Huawei CloudEngine S5736-S Series All-Optical Switches S5736-S48S4X-D – 48 x GE SFP ports, 4 x 10 GE SFP+ ports
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to compare

Add to wishlist

SKU: S5736-S48S4X-D Categories: Huawei S5700 Series Switches, Huawei Switches, Switches

Security/Data Center/Networking

End-to-End Project Support
Smart Industrial Solutions
Global Expert Team
Certified ICT Professionals

Ask the Experts

24/7 Online Service

We're Always Here

+1-737-282-1616 (USA)

+971 58 6900 135 (United Arab Emirates)

+966 55 0033 948 (Saudi Arabia)

Partner with Us

Join Global Partner Program in Pakistan

Get Started

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

HPE 840G7-Z97 i7-10510U/16G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,146.65.Current price is: $1,089.32.
HPE 840G7-Q17 i7-10510U/8G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-P99 i5-10210U/16G/512G/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-Q16 i5-10210U/8G/256G/Integrated Graphics Card/FHD 1920*1080 Original price was: $924.80.Current price is: $878.56.

Description

Description

S5736-S48S4X-D Overview

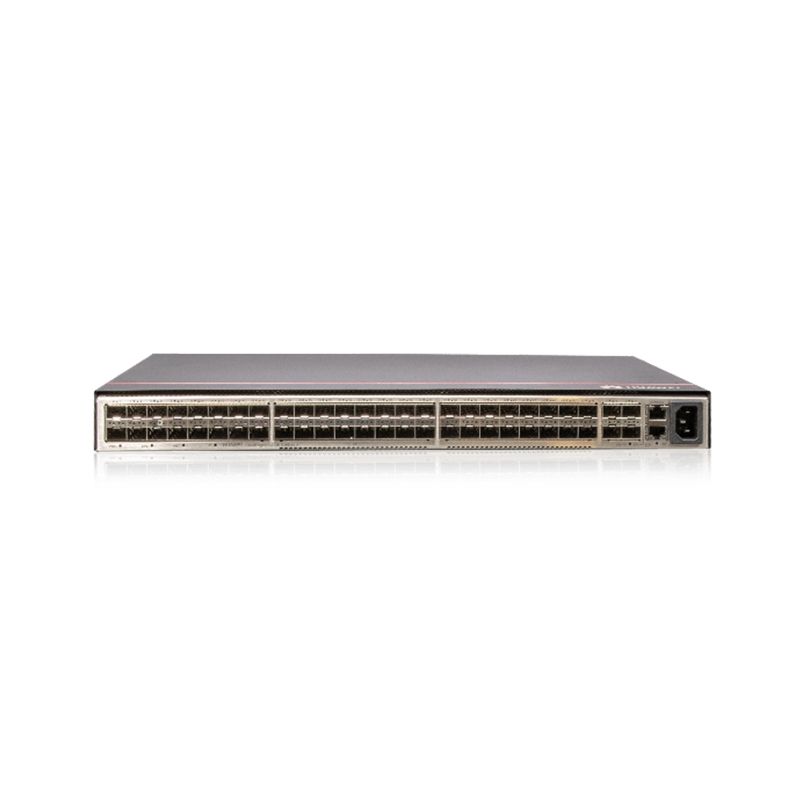

Quick Specs Figure 1 shows the appearance of S5736-S48S4X-D.

Table 1 shows the Quick Specs.

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 235.8 mm (1.72 in. x 17.4 in. x 9.3 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90 mm × 555 mm × 345 mm (3.54 in. x 21.85 in. x 13.58 in.)
Chassis height [U]	1 U
Typical power consumption [W]	87 W
Typical heat dissipation [BTU/hour]	296.85 BTU/hour
Maximum power consumption [W]	108 W
Maximum heat dissipation [BTU/hour]	368.51 BTU/hour
MTBF [year]	41.97 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	56.8 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	44.8 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	3
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year.The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year.The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year.The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	DC built-in
Rated input voltage [V]	-48 V DC to -60 V DC
Input voltage range [V]	-38.4 V DC to -72 V DC
Maximum input current [A]	6.0 A
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Not supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	–
Power supply surge protection [kV]	±2 kV in differential mode, ±4 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air flows in from the left side and front panel, and exhausts from the right side.
PoE	Not supported
Certification	EMC certificationSafety certificationManufacturing certification
