S6520X-54XC-UPWR-SI
Model: S6520X-54XC-UPWR-SI – H3C Switches
Details: H3C S6520X-SI Multi-Gigabit 10GE Switches, 48*100M/1G/2.5G/5G/10GBase-T UPoE Ports, 4*QSFP Plus Ports, 1*expansion Slot, 2*power module slots
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S6520X-54XC-UPWR-SI Overview

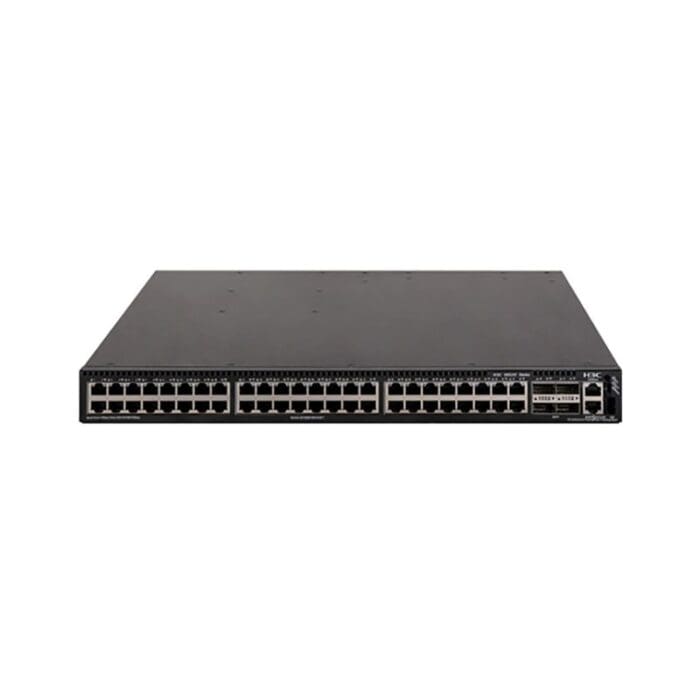

Quick Specs Figure 1 shows the appearance of S6520X-54XC-UPWR-SI.
Table 1 shows the Quick Specs.
| Brand | H3C |
| Model | S6520X-54XC-UPWR-SI |
| Port Configuration | 48*100M/1G/2.5G/5G/10GBase-T UPoE Ports |
| Uplink Ports | 4*QSFP Plus Ports |
| Expansion Slots | 1 Expansion Slot |
| Power Module Slots | 2 Power Module Slots |
| Switch Type | Multi-Gigabit 10GE Switch |
| Power Over Ethernet (PoE) | UPoE |
| Layer | Layer 3 |
| Switching Capacity | 1.44 Tbps |
| Forwarding Rate | 1071 Mpps |
| MAC Address Table | 130K |
| Jumbo Frame | Up to 9216 bytes |
| VLANs | 4K VLANs |
| IPv4 Routes | 12K |
| IPv6 Routes | 6K |
| Operating Temperature | 0��C to 45��C |
| Storage Temperature | -40��C to 70��C |
| Humidity | 5% to 95%, non-condensing |
| Dimensions (W x D x H) | 440 x 460 x 44 mm |
| Management | Web-based GUI, CLI, SNMP |
| Security Features | 802.1X, RADIUS, TACACS+, ACLs |
