S6720-26Q-SI-24S-AC
Model: S6720-26Q-SI-24S-AC – Huawei S6700 Series Switches
Details: S6720-26Q-SI-24S Bundle, 24 10 Gig SFP+, 2 40 Gig QSFP+ with 150W AC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S6720-26Q-SI-24S-AC Overview

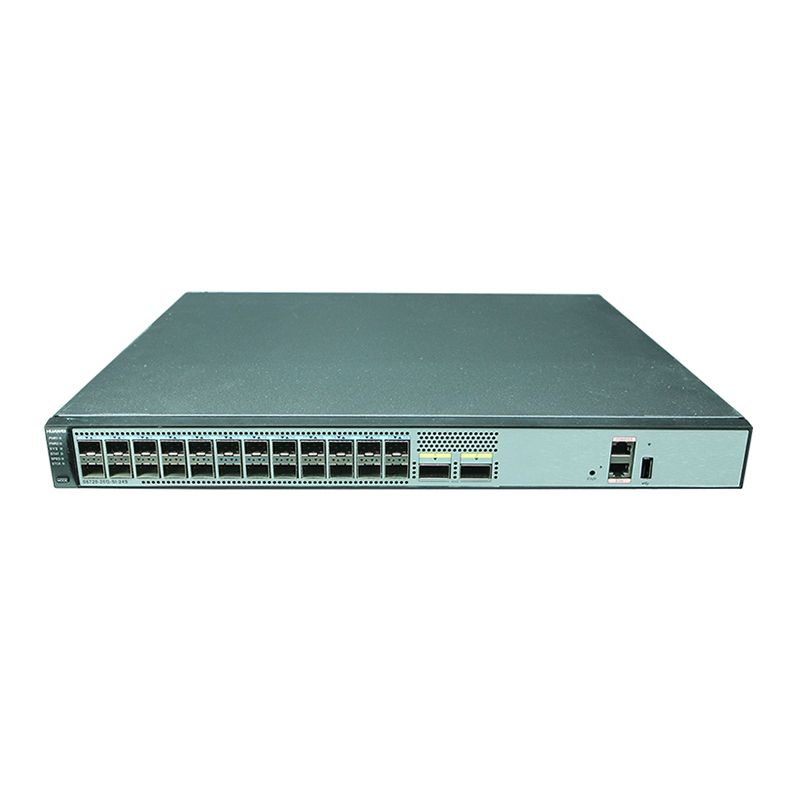

Quick Specs Figure 1 shows the appearance of S6720-26Q-SI-24S-AC.
Table 1 shows the Quick Specs.
| Item | S6720-26Q-SI-24S-AC |
| Switching Capacity | 2.56 Tbit/s |
| Forwarding Performance | 240 Mpps |
| Fixed Ports | 24 x 10 GE SFP+2 x 40 GE QSFP+ |
| Extended Slots | Not supported |
| MAC Address Table | 32KMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses |
| VLAN Features | 4K VLANsGuest VLAN and voice VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and portsVLAN mappingSuper VLANBasic QinQ and selective QinQ |
| IP Routing | Static routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGPVRRPPolicy-based routingRouting policiesRIPngOSPFv3BGP4+ISISv6 |
| Interoperability | VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)Link-type Negotiation Protocol (LNP) (similar to DTP)VLAN Central Management Protocol (VCMP) (similar to VTP) |
