S6720-32C-PWH-SI

Original price was: $6,055.00.Current price is: $5,752.25.

Model: S6720-32C-PWH-SI – Huawei S6704 Series Switches
Details: S6720-32C-PWH-SI(24 Ethernet 100M/1/2.5/5/10G ports,4 10 Gig SFP+,PoE++,with 1 interface slot,without power module)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: S6720-32C-PWH-SI Categories: , ,
Description

S6720-32C-PWH-SI Overview

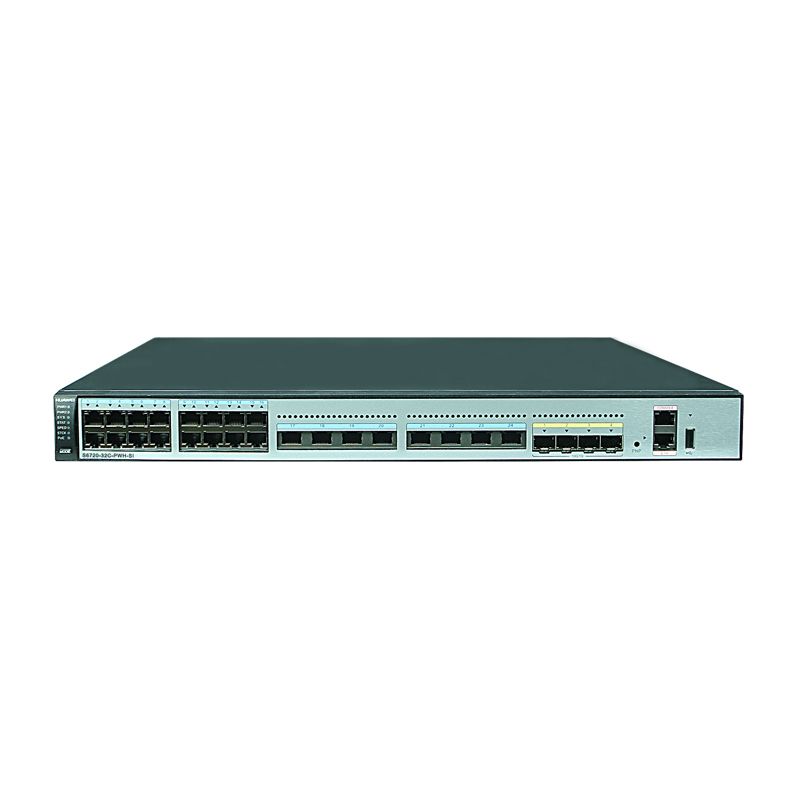

Quick Specs Figure 1 shows the appearance of S6720-32C-PWH-SI.

Table 1 shows the Quick Specs.

Switching Capacity 2.56 Tbit/s
Forwarding Performance 240 Mpps
Fixed ports 24x100M/1G/2.5G/5G/10GBase-TEthernet ports, 4x10GE SFP+
Extended slots One extended slot, support 2*40GE QSFP+，4*10GE SFP+
MAC address table 32KMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses
VLAN features 4K VLANsGuest VLAN and voice VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and portsVLAN mappingSuper VLANBasic QinQ and selective QinQ
IPv4 routing Static routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGPVRRPPolicy-based routingRouting policies
IPv6 routing Static routingRIPngOSPFv3BGP4+ISISv6
IPv6 features Neighbor Discovery (ND) and ND snoopingIPv6 PingVRRP6DHCPv6 snooping, DHCPv6 server, and DHCPv6 relayMLDv1 and MLDv2PIM-DM for IPv6PIM-SM for IPv66 Over 4 tunnels
Multicast IGMP V1/V2/V3 snoopingFast leaveIGMP snooping proxyMLD snoopingPort-based multicast traffic suppressionInter-VLAN multicast replicationControllable multicastIGMP v1/v2/v3PIM-SM and PIM-DMMulticast Source Discovery Protocol (MSDP)Multicast routing policies
QoS/ACL Traffic classification based on ACLsTraffic classification based on outer 802.1p fields, inner VLAN IDs, outer VLAN IDs, source MAC addresses, and Ethernet typesAccess control after traffic classificationTraffic policing based on traffic classifiersRe-marking based on traffic classifiersClass-based packet queuingAssociating traffic classifiers with traffic behaviorsRate limiting on inbound and outbound portsTraffic shaping based on ports and queuesTail dropPriority Queuing (PQ)Deficit Round Robin (DRR)PQ + DRR schedulingWeighted Round Robin (WRR)PQ + WRR scheduling
Reliability STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protectionRRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing millisecond-level protectionswitchoverSmart Ethernet Protection (SEP)G.8032 Ethernet Ring Protection Switching (ERPS)BFD for OSPF, IS-IS, VRRP, and PIM protocolsEnhanced trunk (E-trunk)
Security features Defense against DoS, ARP, and ICMP attacksBinding of the IP address, MAC address, port number, and VLAN ID of a userPort isolation, port security, and sticky MACMAC-Forced Forwarding (MACFF)Limit on the number of learned MAC addressesIEEE 802.1X authentication, MAC address authentication, Portal authentication, and hybridauthenticationAuthentication methods, including AAA, RADIUS, and HWTACACSCPU defenseMACSec
Super Virtual Fabric (SVF) SVF Parent and Client
Management and maintenance iStack (using service ports as stack ports)Virtual Cable Test (VCT)Ethernet OAM (IEEE 802.3ah and 802.1ag)SNMPv1/v2c/v3RMONWeb-based network management system and relevant featuresSystem logs and multi-level alarmsGVRPMUX VLANsFlowHypertext Transfer Protocol Secure (HTTPS)SSH1.5/SSH2
Operating environment Working temperature: 0–1800 m, 0–45°C; 1800–5000 m, the highest operating temperature reducesby 1°C every time the altitude increases by 220 m.Relative humidity: 5%–95% (noncondensing)
Input voltage AC:• Rated voltage range: 100 V to 240 V AC, 50/60 Hz• Maximum voltage range: 90 V to 264 V AC, 47/63HzDC:• Rated voltage range:–48 V to–60 V DC• Maximum voltage range:–36 V to–72 V DC
Dimensions (W x D x H, mm) 442 x 420 x 44.4
Height 1 U
Typical power consumption • 650W DC/580W AC without card and PD: 106.9W• 1150W AC /1000W AC without card and PD: 121.6W
Maximum power consumption (W) • 650W DC/580W AC (without card and PD): 125.6W• 1150W AC/1000W AC(without card and PD): 125.6W
