S6720-50L-HI-48S

Original price was: $4,762.00.Current price is: $4,523.90.

Model: S6720-50L-HI-48S – Huawei S6700 Series Switches
Details: Huawei S6720-HI switch with 48 x 10 Gig SFP+, 6 x 40 Gig QSFP+ or 44 x 10 Gig SFP+, 4 x 40 Gig QSFP+, 2 x 100 Gig QSFP28
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: S6720-50L-HI-48S Categories: , ,
Description

S6720-50L-HI-48S Overview

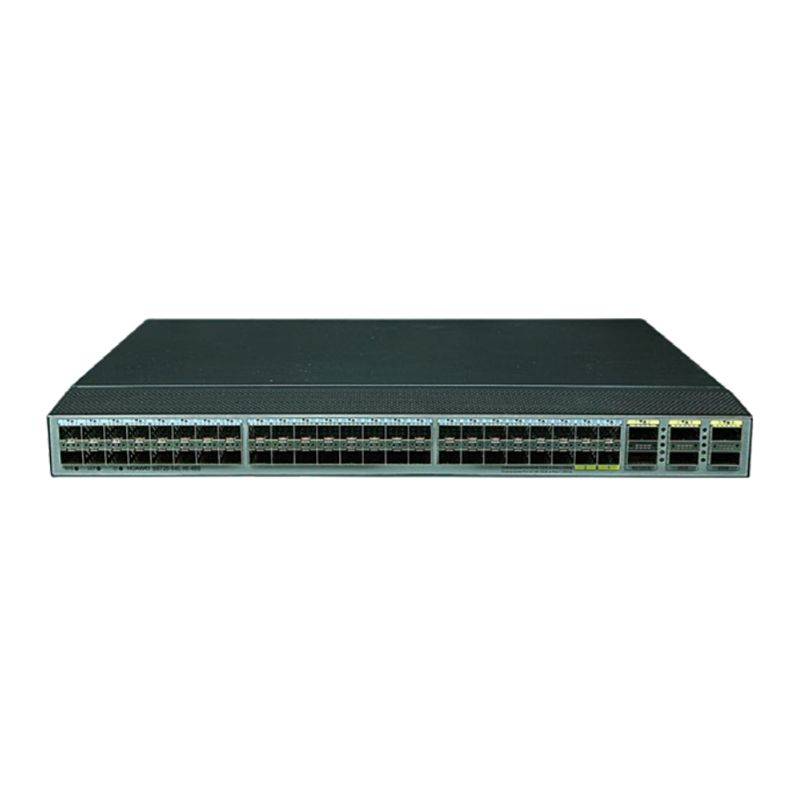

Quick Specs Figure 1 shows the appearance of S6720-50L-HI-48S.

Table 1 shows the Quick Specs.

Switching Capacity 2.56 Tbit/s
Fixed Ports 48 x 10 Gigabit SFP+, 6 x 40 Gigabit QSFP+ or 44 x 10 Gigabit SFP+, 4 x 40 Gigabit QSFP+, and 2 x 100 Gigabit QSFP28
Extended Slots Not supported
MAC Address Table 64K MAC address entriesIEEE 802.1d standards complianceMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses
VLAN Features 4,094 VLANsGuest VLANs and voice VLANsGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and portsVLAN mapping
IP Routing Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy
Interoperability VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)Link-type Negotiation Protocol (LNP) (similar to DTP)VLAN Central Management Protocol (VCMP) (similar to VTP)
Wireless service AP access control, AP domain management, and AP configuration template managementRadio management, unified static configuration, and dynamic centralized managementWLAN basic services, QoS, security, and user managementCAPWAP, tag/terminal location, and spectrum analysis
Ethernet loopprotection RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing millisecond-level protectionswitchoverSEPERPS (G.8032)BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIMSTP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protection
MPLS MPLS L3VPNMPLS L2VPN (VPWS/VPLS)MPLS-TEMPLS QoS
IPv6 features Neighbor Discover (ND)PMTUIPv6 Ping, IPv6 Tracert, IPv6 TelnetACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocoltypesMulticast Listener Discovery snooping (MLDv1/v2)IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN
Multicast IGMP v1/v2/v3 snooping and IGMP fast leaveMulticast forwarding in a VLAN and multicast replication between VLANsMulticast load balancing among member ports of a trunkControllable multicastPort-based multicast traffic statisticsIGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSMMSDPMulticast VPN
QoS/ACL Rate limiting in the inbound and outbound directions of a portPacket redirectionPort-based traffic policing and two-rate three-color CARHQoSEight queues on each portDRR, SP, and DRR+SP queue scheduling algorithmsWREDRe-marking of the 802.1p and DSCP fields of packetsPacket filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address,destination MAC address, source IP address, destination IP address, TCP/UDP source/destinationport number, protocol type, and VLAN IDQueue-based rate limiting and shaping on ports
Security Hierarchical user management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defenseBinding of the IP address, MAC address, port number, and VLAN IDPort isolation, port security, and sticky MACMAC Forced Forwarding (MFF)Blackhole MAC address entriesLimit on the number of learned MAC addressesIEEE 802.1X authentication and limit on the number of users on a portAAA authentication, RADIUS authentication, and HWTACACS authenticationNACSSH V2.0HTTPSCPU protectionBlacklist and whitelistAttack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packetsIPSec for management packet encryption
Reliability LACPE-TrunkEthernet OAM (IEEE 802.3ah and IEEE 802.1ag)ITU-Y.1731DLDPLLDPBFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes
VXLAN VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPNVXLAN configuration using NETCONF/YANG
SVF Acting as the parent node to vertically virtualize downlink switches and APs as one device formanagementTwo-layer client architectureASs can be independently configured. Services not supported by templates can be configured onthe parent node.Third-party devices allowed between SVF parent and clients
iPCA Marking service packets to obtain the packet loss ratio and number of lost packets in real timeMeasurement of the number of lost packets and packet loss ratio on networks and devices
Management andmaintenance Cloud-based managementVirtual cable testSNMP v1/v2c/v3RMONWeb-based NMSSystem logs and alarms of different severitiesGVRPMUX VLAN802.3az Energy Efficient Ethernet (EEE)NetStreamDying gasp upon power-off
Dimensions (W x D x H) 442 mm x 420 mm x 43.6 mm
Height 1U
Input voltage AC:Rated AC voltage: 100V to 240V AC; 50/60 HzMax. AC voltage: 90V to 264V AC; 47–63 HzDC:Rated DC power: –48V to 60V DCMax. DC voltage: –38.4V to 72V DC
Maximum powerconsumption 279W
Power consumption(30% traffic load) 194W
Operating temperature – 0–1800 m altitude: 0°C to 45°C- 1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitudeincreases by 220 m.
Relative humidity 5% to 95% (non-condensing)
Heat dissipation Heat dissipation with fan, intelligent fan speed adjustment
