S6720S-26Q-EI-24S-AC

Original price was: $1,789.00.Current price is: $1,699.55.

Details: S6720S-26Q-EI-24S Bundle(24 10 Gig SFP+,2 40 Gig QSFP+,with 170W AC power supply)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: S6720S-26Q-EI-24S-AC Categories: , ,
Description

S6720S-26Q-EI-24S-AC Overview

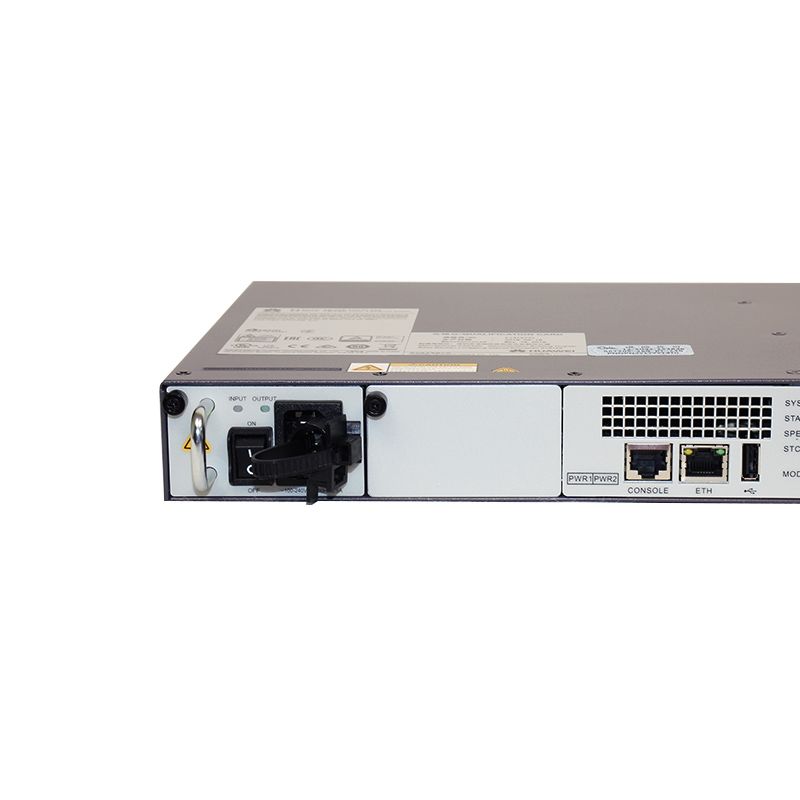

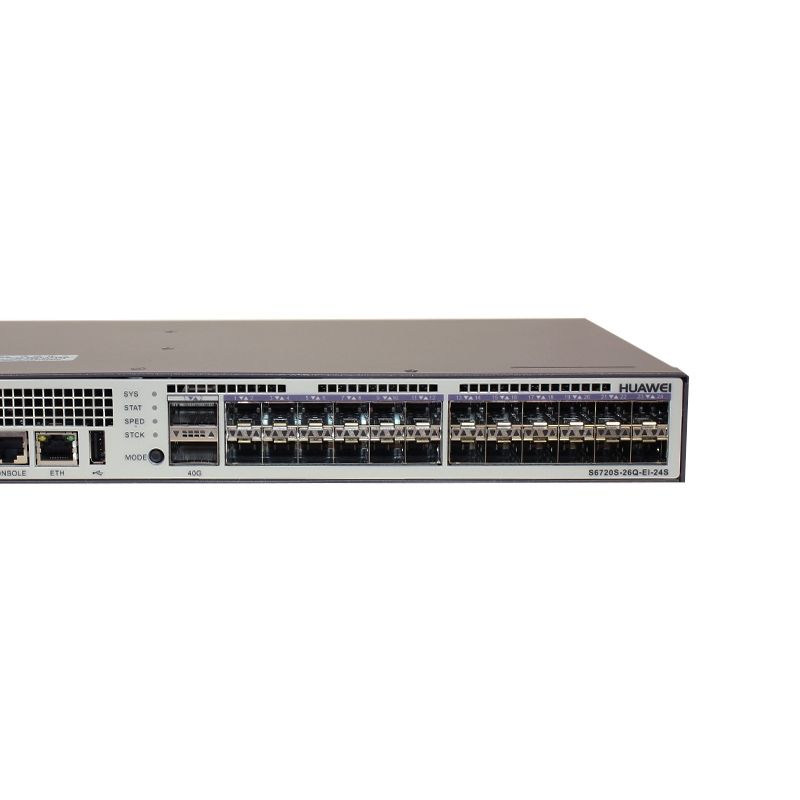

Quick Specs Figure 1 shows the appearance of S6720S-26Q-EI-24S-AC.

Table 1 shows the Quick Specs.

Fixed Ports 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended Slot Not supported
MAC Address Table 288K  MAC address entriesMAC address learning and agingStatic, dynamic, and black hole MAC address entriesPacket filtering based on source MAC addresses
VLAN 4K VLANsGuest VLAN and voice VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN MappingQinQ and selective QinQ
IPv4 Routing Static routing, RIPv1, RIPv2, ECMP, and URPFOSPF, IS-IS, and BGPVRRPPolicy-based routingRouting policy
IPv6 Routing Static routeRIPngOSPFv3BGP4+ISISv6
IPv6 Features Neighbor Discovery (ND)PMTUIPv6 ping, IPv6 tracert, and IPv6 Telnet6to4 tunnel, ISATAP tunnel, and manually configured tunnelACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol typeMLD v1/v2 snooping
Multicast Static Layer 2 multicast MAC addressMAC-based multicast forwardingIGMP snooping and IGMP fast leaveMulticast VLANMLD snoopingIGMP proxyControllable multicastPort-based multicast traffic statisticsIGMP v1/v2/v3PIM-SM, PIM-DM, and PIM-SSMMSDPMVPN
QoS/ACL Rate limiting on packets sent and received by an interfacePacket redirectionPort-based traffic policing and two-rate three-color CAREight queues on each portWRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityPacket filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN IDRate limiting in each queue and traffic shaping on ports
MPLS MPLS, MPLS VLL, L3VPN
VPLS Martini VPLS
Reliability STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protectionRRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchoverSEPERPS (G.8032v2)BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIME-Trunk
Security User privilege management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defenseBinding of the IP address, MAC address, interface, and VLANPort isolation, port security, and sticky MACBlackhole MAC address entriesLimit on the number of learned MAC addresses802.1x authentication and limit on the number of users on an interfaceAAA authentication, RADIUS authentication and TACACS authenticationSSH v2.0Hypertext Transfer Protocol Secure (HTTPS)CPU defenseBlacklist and whitelist
Super Virtual Fabric (SVF) Working as the parent node to vertically virtualize downlink switches as one device for management, supports two-layer clients architectureSupport as a client node to be managed by SVF parent
Management and Maintenance iStack (using service ports as stack ports)MAC Forced Forwarding (MFF)Virtual cable testEthernet OAM (IEEE 802.3ah and 802.1ag)Local port mirroring and Remote Switched Port Analyzer (RSPAN), allowing an observing port to forward packetsRemote configuration and maintenance using TelnetSNMP v1/v2c/v3RMONWeb NMSSystem logs and alarms of different levelsGVRPMUX VLAN
Operating Environment Operating temperature: 0m to 1,800m: 0°C to 45°C; 1,800m to 5,000m: 1°C decrease for every 220m increase in altitudeRelative humidity: 5% to 95% (non-condensing)
Input Voltage AC:Rated voltage range: 100V to 240V, 50 Hz/60 HzMaximum voltage range: 90V to 264V, 50 Hz/60 Hz
Dimensions (W x D x H) 442 mm x 220 mm x 44.4 mm
Typical  Power Consumption AC:without subcard: 109W
