S6720S-26Q-SI-24S-AC
Model: S6720S-26Q-SI-24S-AC – Huawei S6700 Series Switches
Details: S6720S-26Q-SI-24S Bundle, 24 10 Gig SFP+, 2 40 Gig QSFP+ with 150W AC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S6720S-26Q-SI-24S-AC Overview

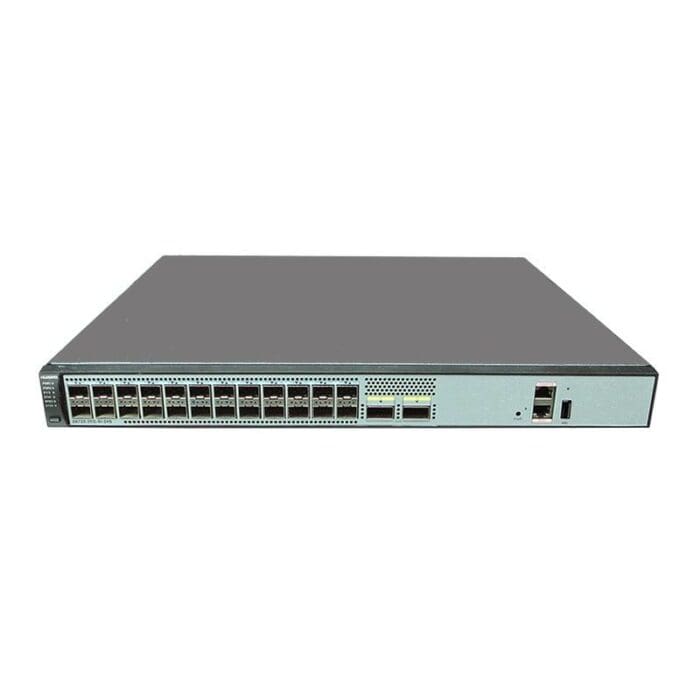

Quick Specs Figure 1 shows the appearance of S6720S-26Q-SI-24S-AC.
Table 1 shows the Quick Specs.
| Ports | 24 x 10 GE SFP+, uplink 2 x 40 GE QSFP+ |
| Extended Slot | N/A |
| Power | Double pluggable power supplies, AC power supply |
| Forwarding performance | 240 Mpps |
| Switching capacity | 2.56 Tbit/s |
| Dimensions (W x D x H) | 442 × 420 × 44.4 mm |
| MAC address table | 32KMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses |
| VLAN features | 4K VLANsGuest VLAN and voice VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and portsVLAN mappingSuper VLANBasic QinQ and selective QinQ |
| IPv4 routing | Static routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGPVRRPPolicy-based routingRouting policies |
| IPv6 routing | Static routingRIPngOSPFv3BGP4+ISISv6 |
| IPv6 features | Neighbor Discovery (ND) and ND snoopingIPv6 PingVRRP6DHCPv6 snooping, DHCPv6 server, and DHCPv6 relayMLDv1 and MLDv2PIM-DM for IPv6PIM-SM for IPv66 Over 4 tunnels |
| Multicast | IGMP V1/V2/V3 snoopingFast leaveIGMP snooping proxyMLD snoopingPort-based multicast traffic suppressionInter-VLAN multicast replicationControllable multicastIGMP v1/v2/v3PIM-SM and PIM-DMMulticast Source Discovery Protocol (MSDP)Multicast routing policies |
| Typical power consumption | 68.4W |
| Maximum power consumption (W) | 97W |
