S6730S-S24X6Q-A
Model: S6730S-S24X6Q-A – Huawei S6730S-S Series Switches
Details: S6730S-S Series,24 x 10 Gig SFP+/6 x 40 Gig QSFP/Dual pluggable power modules, with one 600 W AC power module by default
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
S6730S-S24X6Q-A Overview

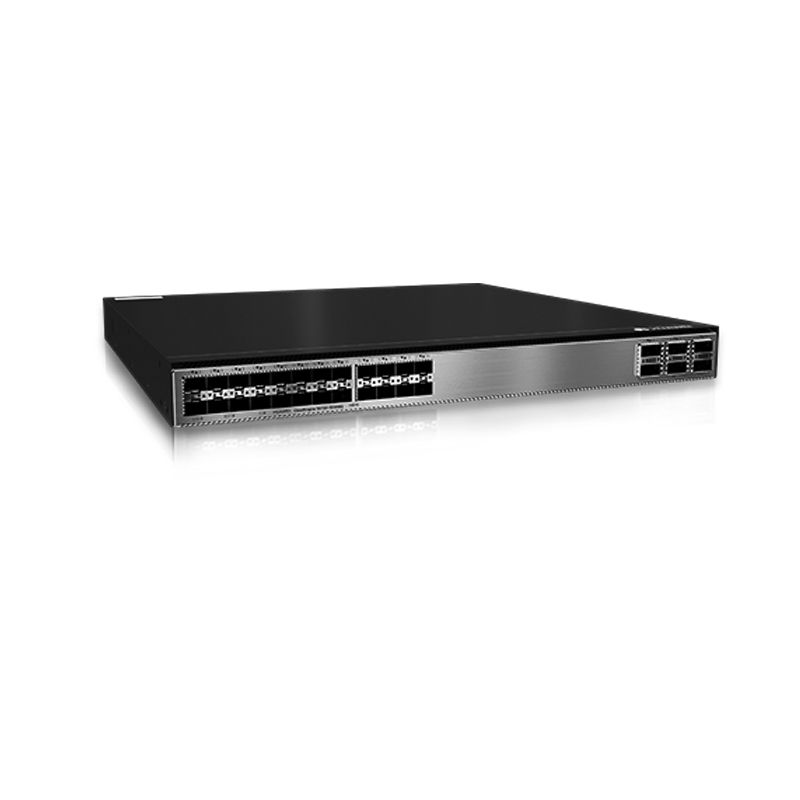

Quick Specs Figure 1 shows the appearance of S6730S-S24X6Q-A.
Table 1 shows the Quick Specs.
| Forwarding Performance | 480Mpps |
| Switching Capacity | 960Gbps/2.4Tbps |
| Fixed ports | 24 x 10 Gig SFP+, 6 x 40 Gig QSFP+ |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Chassis height(U) | 1U |
| Input voltage | AC Power•Rated AC voltage: 100V to 240V AC; 50/60 Hz• Max. AC voltage: 90V to 290V AC; 45–65 HzDC Power• Rated DC voltage:–48V～–60V• Max. DC voltage：-38.4V DC～-72V DC |
| Input current | AC 600W：Max 8ADC 1000W：Max 30A |
| Maximum power consumption | 225W |
| Minimum power consumption | 88W |
| Operating temperaturel | • 0–1800 m altitude: -5℃to 45℃• 1800–5000 m altitude: The operating temperature reduces by 1℃every time thealtitude increases by 220 m. |
| Storage temperature | -40-70℃ |
| Operating altitude | 5000 m |
| Noise (sound pressure at normaltemperature) | 65dB(A) |
| Surge protection specification | AC power interface: differential mode:±6kV: common mode:±6kVDC power interface: differential mode:±2kV: common mode:±4kV |
| Power supply type | 600W AC Power1000W DC Power |
| Relative humidity | 5% to 95% (non-condensing) |
| Fans | 4 , Fan modules are pluggable |
| Heat dissipation | Heat dissipation with fan, intelligent fan speed adjustment |
| MAC | Up to 64K MAC address entriesIEEE 802.1d standards complianceMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addresses |
| VLAN | 4K VLANsGuest VLANs and voice VLANsGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and portsVLAN mapping |
| ARP | Static ARPDynamic ARP |
| IP routing | Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routingpolicyUp to 32K FIBv4 entriesUp to 16K FIBv6 entries |
| Interoperability | VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVSTLink-type Negotiation Protocol (LNP), similar to DTPVLAN Central Management Protocol (VCMP), similar to VTP |
| Ethernet loop protection | RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing millisecond-level protectionswitchoverSEPERPS (G.8032)BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIMSTP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protection |
| IPv6 features | Neighbor Discover (ND)PMTUIPv6 Ping, IPv6 Tracert, IPv6 TelnetACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocoltypesMulticast Listener Discovery snooping (MLDv1/v2)IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leaveMulticast forwarding in a VLAN and multicast replication between VLANsMulticast load balancing among member ports of a trunkControllable multicastPort-based multicast traffic statisticsIGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSMMSDPMulticast VPN |
| QoS/ACL | Rate limiting in the inbound and outbound directions of a portPacket redirectionPort-based traffic policing and two-rate three-color CAREight queues on each portDRR, SP, and DRR+SP queue scheduling algorithmsWREDRe-marking of the 802.1p and DSCP fields of packetsPacket filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MACaddress, destination MAC address, source IP address, destination IP address, TCP/UDPsource/destination port number, protocol type, and VLAN IDQueue-based rate limiting and shaping on port |
| Security | Hierarchical user management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defenseBinding of the IP address, MAC address, port number, and VLAN IDPort isolation, port security, and sticky MACMAC Forced Forwarding (MFF)Blackhole MAC address entriesLimit on the number of learned MAC addressesIEEE 802.1X authentication and limit on the number of users on a portAAA authentication, RADIUS authentication, and HWTACACS authenticationNACSSH V2.0HTTPSCPU protectionBlacklist and whitelistAttack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packetsIPSec for management packet encryptionECADeception |
| Reliability | LACPE-TrunkEthernet OAM (IEEE 802.3ah and IEEE 802.1ag)ITU-Y.1731DLDPLLDPBFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes |
| SVF | Acting as the parent node to vertically virtualize downlink switches and APs as one device formanagementTwo-layer client architectureASs can be independently configured. Services not supported by templates can be configured onthe parent node.Third-party devices allowed between SVF parent and clients |
| iPCA | Marking service packets to obtain the packet loss ratio and number of lost packets in real timeMeasurement of the number of lost packets and packet loss ratio on networks and devices |
| Management andmaintenance | Cloud-based managementVirtual cable testSNMP v1/v2c/v3RMONWeb-based NMSSystem logs and alarms of different severitiesGVRPMUX VLANNetStreamTelemetry |
