Sold out
S7606
Model: S7606 – Dahua Core Switches
Details: Dahua High-end Multiservice Routing Switches
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
S7606 Overview

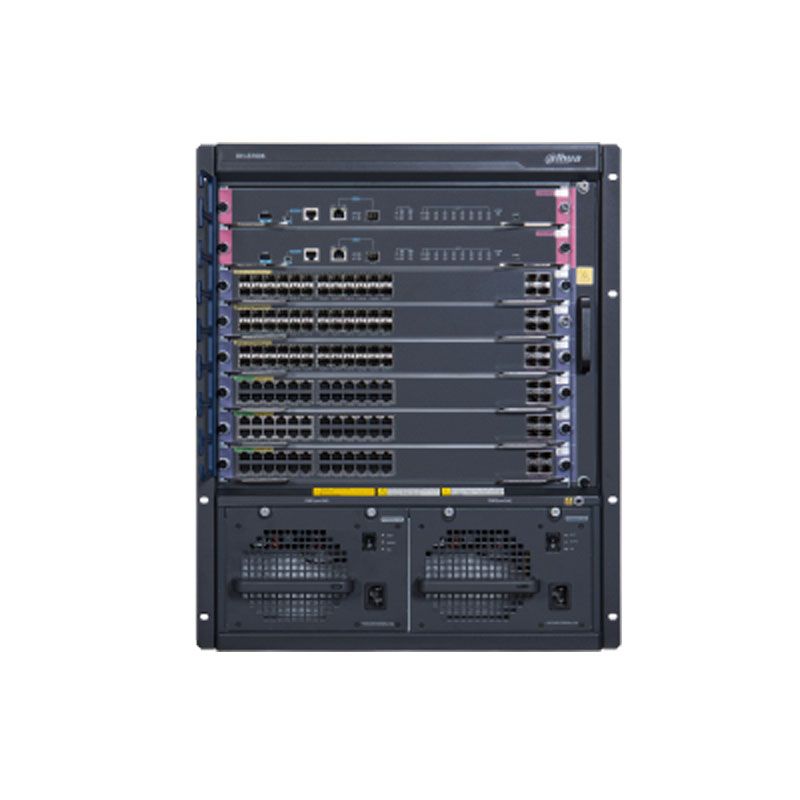

Quick Specs Figure 1 shows the appearance of S7606.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | S7606 |
| Product Type | High-end Multiservice Routing Switch |
| Chassis Slots | 6 |
| Port Density | Support for up to 576 GE, 288 10GE, or 24 100GE ports |
| Switching Capacity | up to 2.56 Tbps |
| Forwarding Rate | up to 1920 Mpps |
| Power Supply | Redundant hot-swappable power supplies |
| Cooling | Front-to-back airflow, hot-swappable fans |
| Management | Support for SNMP, RMON, Syslog, CLI, Telnet, and Secure Shell (SSH) management |
| Virtualization | Support for Virtual Routing and Forwarding (VRF) |
| Security | Support for ACL, IPv6 security, tunnel encryption |
| QoS | Supports traffic classification, traffic policing, traffic shaping, and scheduling |
| Routing Protocols | Support for OSPF, BGP, IS-IS, RIP |
| Layer 2 Features | VLAN, STP, RSTP, MSTP, LACP |
| Redundancy | High availability through redundant components |
| Jumbogram Support | Up to 9K bytes |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | 440mm x 630mm x 355mm |
