SD29204UE-GN-W

Original price was: $198.00.Current price is: $188.10.

Model: SD29204UE-GN-W – Dahua 2MP PTZ
Details: Dahua 2MP 4x Starlight IR PTZ Wi-Fi Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

SKU: SD29204UE-GN-W Categories: , ,
Description

SD29204UE-GN-W Overview

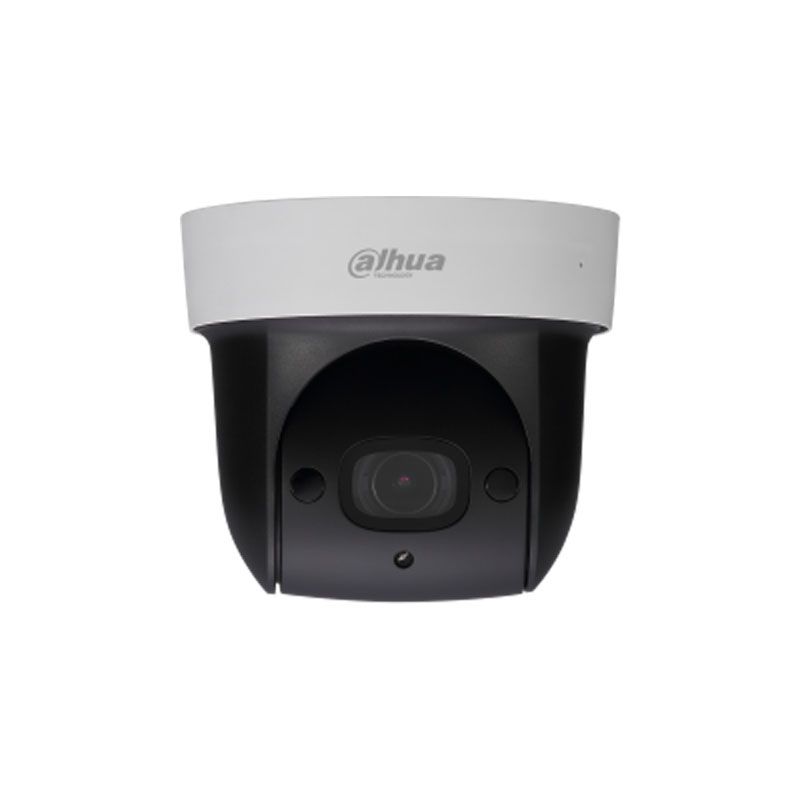

Quick Specs Figure 1 shows the appearance of SD29204UE-GN-W.

Table 1 shows the Quick Specs.

Image Sensor 1/2.8”STARVIS? CMOS
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
RAM/ROM 256M/128M
Scanning System Progressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on)
IR Distance Distance up to 30m (98ft)
IR On/Off Control Auto/Manual
IR LEDs 2
Focal Length 2.7mm~11mm
Max. Aperture F1.6
Angle of View H: 112.5° ~ 30°
Optical Zoom 4x
Focus Control Auto/Manual
Close Focus Distance 100mm~ 1000mm
Detect Observe
120m(394ft) 48m(157ft)
Pan/Tilt Range Pan: 0° ~ 360° limited; Tilt: 0° ~ 90°
Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset Speed Pan: 100° /s; Tilt: 60° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour(up to 32 preset per tour), Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP,IP Filter,QoS,Bonjour,802.1x
Event Trigger Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly
Auto Tracking N/A
IVS Tripwire, Intrusion,Abandoned/Missing
Advanced Intelligent Functions Face Detection
Compression G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/MPEG2-Layer2
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main stream: 1080P/720P/D1 (1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Motion Detection Support
Region of Interest support
Electronic Image Stabilization (EIS) N/A
Defog Support
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas
Ethernet RJ-45 (10XBase-T/100Base-TX)
Wifi Support
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB,ANSI C63.4- 2014UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Video Interface N/A
RS485 N/A
Audio I/O Built-in Mic
Alarm I/O N/A
Power Supply DC 12V/1.5A
Power Consumption 10W,13W (IR on)
Operating Conditions -30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection N/A
Vandal Resistance N/A
Casing Metal
Dimensions Φ132.7 (mm) x 117.9 (mm)
Net Weight 0.95kg(2.09lb)
Gross Weight 1kg(2.20lb)
