SD49225T-HN

Original price was: $321.00.Current price is: $304.95.

Model: SD49225T-HN – Dahua 2MP PTZ
Details: 2MP 25x Starlight IR PTZ Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: SD49225T-HN Categories: , ,
Description

SD49225T-HN Overview

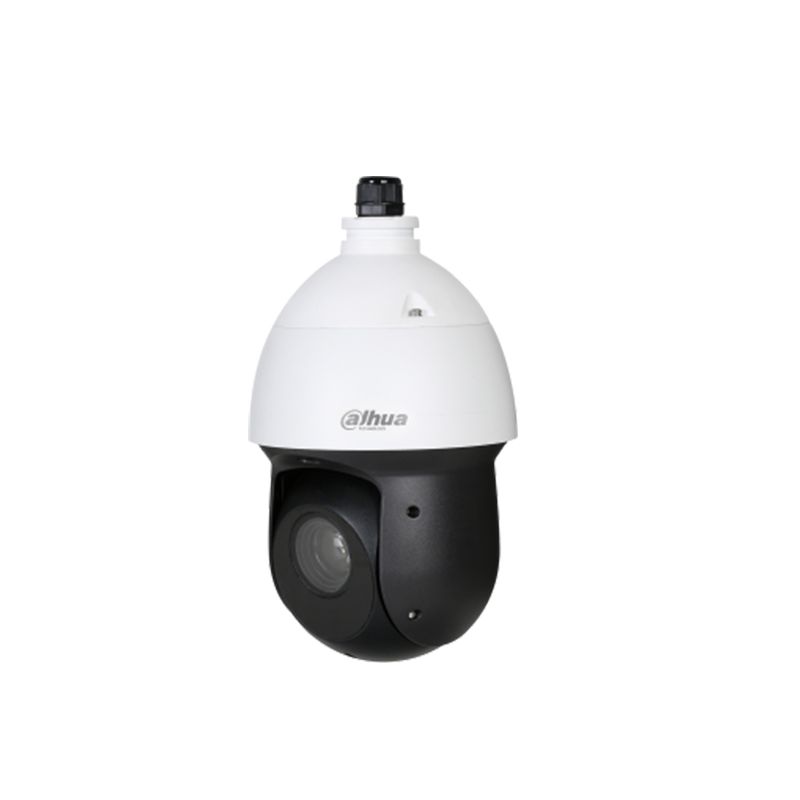

Quick Specs Figure 1 shows the appearance of SD49225T-HN.

Table 1 shows the Quick Specs.

Image Sensor 1/2.8” STARVIS™ CMOS
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
RAM/ROM 1024M/128M
Scanning System Progressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 100m (328ft)
IR On/Off Control Auto/Manual
IR LEDs 6
Focal Length 4.8mm~120mm
Max. Aperture F1.6 ~ F4.4
Angle of View H: 62.8° ~ 2.6°
Optical Zoom 25x
Focus Control Auto/Manual
Iris Control Auto/Manual
Close Focus Distance 100mm~ 1000mm
Detect Observe
1613m(5292ft) 646m(2119ft)
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Presets 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Event Trigger Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly
Auto Tracking N/A
IVS Tripwire, Intrusion,Abandoned/Missing
Advanced Intelligent Functions Face Detection
Compression G.711a/G.711Mu/G.726/AAC
Streaming Capability 3 Streams
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main stream: 1080P/720P(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.265/H.264: 448K ~ 8192Kbps
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Motion Detection Support
Region of Interest Support
Electronic Image Stabilization (EIS) N/A
Defog Support
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas
Ethernet RJ-45 (10XBase-T/100Base-TX)
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB,ANSI C63.4- 2014UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Video Interface N/A
RS485 N/A
Audio I/O 1/1
Alarm I/O 2/1
Power Supply DC 12V/3A, PoE+(802.3at)
Power Consumption 13W, 22W (IR on,Heater on)
Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP66
Vandal Resistance N/A
Casing Metal
Dimensions Φ160(mm) x 295(mm)
