SF110D-16
Model: SF110D-16 – Cisco Small Business 110 Series Unmanaged Switches
Details: Cisco SF110D-16 16-port 10/100 Desktop Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
SF110D-16 Overview

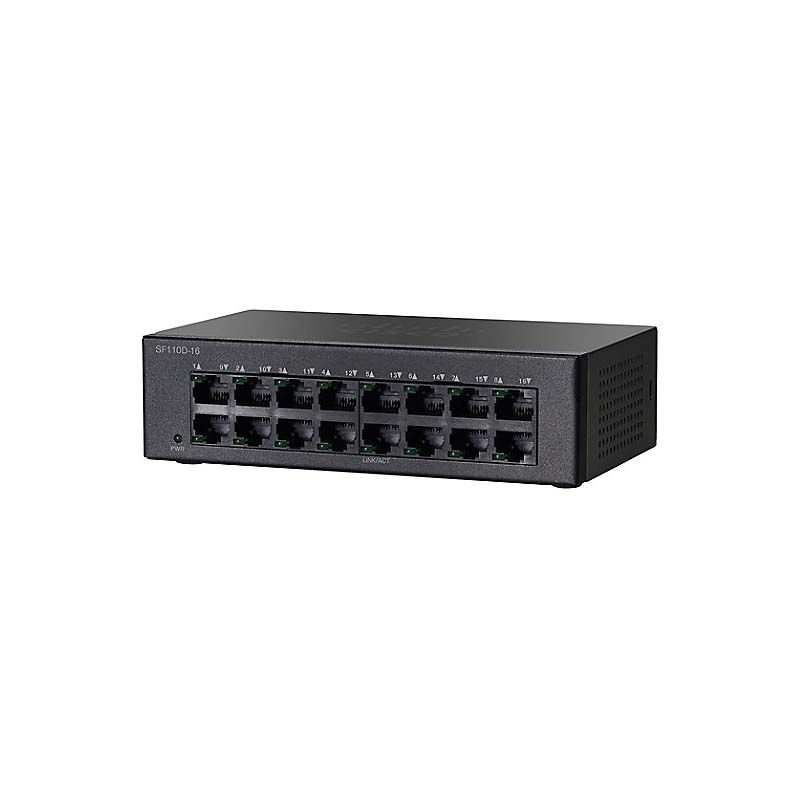

Quick Specs Figure 1 shows the appearance of SF110D-16.
Table 1 shows the Quick Specs.
| Specifications | Description |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Cabling type | Category 5e or better |
| LED indicators | System/PWR, link/activity, 100M,*PoE,*Max PoE, cable diagnostics, loop detection, gigabit,*mini-GBIC**if present |
| Ports | 16 RJ-45 connectors for 10BASE-T/100BASE-TX |
| Power supply | DC 12V, 1.0A |
| Lock slot | Slot for Kensington lock |
| Physical dimensions (W x D x H) | 6.30 x 3.54 x 1.73 inches (160 x 90 x 44 mm) |
| Fan/fanless models | All models have no fans and are fanless, except for SG100-24HP |
| Switching capacity | 3.2 Gbps |
| Forwarding capacity | 1.4 mpps |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Jumbo frame | 9216 bytes |
| Quality of service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Mounting options | Desktop or rack mount |
| Physical security lock | Kensington lock slot |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B**select models |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | -4° to 158°F (-20° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 5% to 90%, relative, noncondensing |
| Cisco 110 Series switch | Limited lifetime |
