SF200-24FP
Model: SF200-24FP – Cisco Small Business 200 Series Smart Switches
Details: 24 10/100 ports, 2 combo mini-GBIC ports – PoE support on 24 ports with 180W power budget
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SF200-24FP Overview

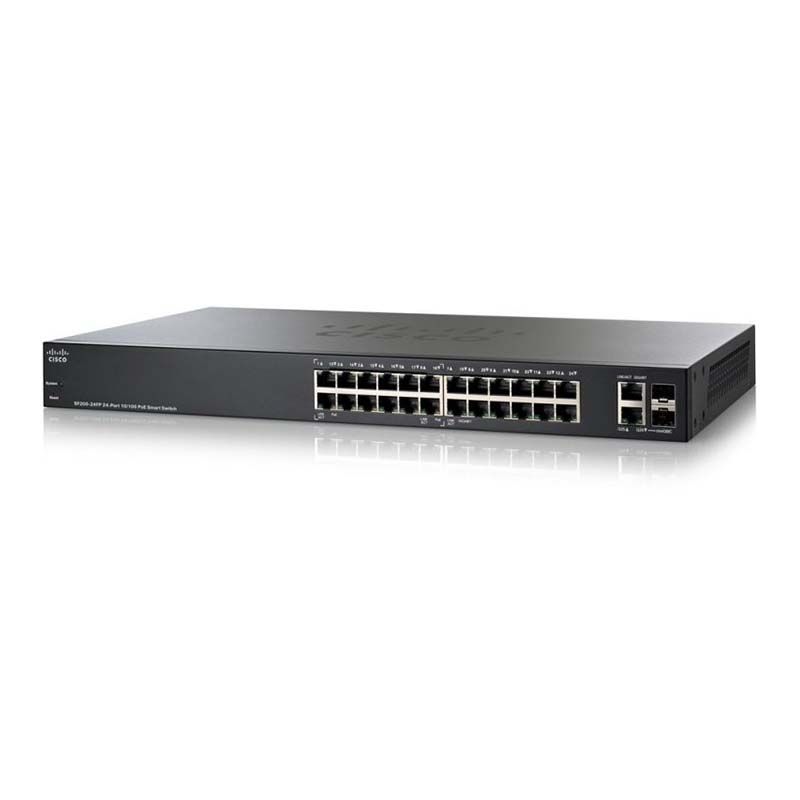

Quick Specs Figure 1 shows the appearance of SF200-24FP.
Table 1 shows the Quick Specs.
| Device Type | Switch – 24 ports |
| Enclosure Type | Rack-mountable |
| Ports | 24 x 10/100 + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Performance | Switching capacity : 6.55 Mpps : Forwarding performance (64-byte packet size) : 8.8 Gbps |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | Yes |
| Remote Management Protocol | SNMP, RMON, HTTP, TFTP |
| Encryption Algorithm | MD5 |
| Authentication Method | RADIUS |
| Features | Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP, TFTP support, QoS, Jumbo Frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts |
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| RAM | 128 MB |
| Flash Memory | 16 MB |
| Status Indicators | Link activity, port transmission speed, system, PoE |
| Interfaces | 24 x 10BASE-T/100BASE-TX – RJ-45 | 24 x 10BASE-T/100BASE-TX – RJ-45 – PoE | 2 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 | 2 x SFP (mini-GBIC) |
| Power Device | Power supply – internal |
| Voltage Required | 100-240V AC/50-60 Hz universal input |
| Width | 17.3 in |
| Depth | 10.1 in |
| Height | 1.7 in |
| Weight | 8.7 lbs |
| Mounting Kit | Included |
| MTBF | 307,098 hour(s) |
| Localization | Chinese (simplified), English, German, French, Italian, Spanish |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty – lifetime : Technical support – web support – 1 year ¦ Technical support – phone consulting – 1 year |
| Min Operating Temperature | 32 ° F |
| Max Operating Temperature | 104 ° F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Min Storage Temperature | -4 ° F |
| Max Storage Temperature | 158 ° F |
| Humidity Range Storage | 10 – 90% (non-condensing) |
