SFP-10G-CU1M
Model: SFP-10G-CU1M – Huawei Optical Transceivers
Details: SFP+.10G.High Speed Direct-attach Cables.1m.SFP+20M.CC2P0.254B(S).SFP+20M.Used indoor
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SFP-10G-CU1M Overview

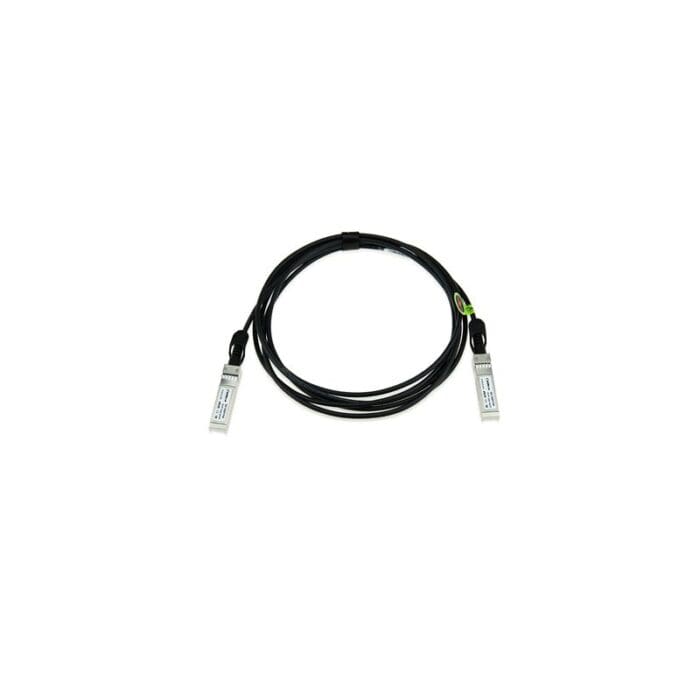

Quick Specs Figure 1 shows the appearance of SFP-10G-CU1M.
Table 1 shows the Quick Specs.
| Form Factor | SFP+ DAC Cable |
| Passive or actively equalized | Passive |
| Cable Length | 1Â m |
| Cable Type | Twinax |
| Minimum cable bend radius | 25 mm |
| Connector | SFP+/SFP+ |
| Environment | Operating: 0°C to 70°CStorage: -40°C to 85°C |
| Application | Storage Area Networks( SAN)Network Attached StorageThe switched fabric I/OHigh-density connections between networking equipmentData center cabling infrastructure |
| Data Rate | 10.5Gb/s |
| Supply Voltage | 3.3V |
| Cable impedance | 100 Ω |
| Wire Gauge | 30AWG |
| Cable Jacket Type | PVC |
| Digital Diagnostic Monitoring | N/A |
| Compliance | SFF-8472,SFF-8431IEC/EN 61000-4-2MIL-STD -883E, RoHS |
