SFP-GPON-ONU
Model: Huawei SFP-GPON-ONU PON Optical Transceiver
Details: PON Optical Transceiver,SFP,1244M(Tx)/2488M(Rx),Single-mode Module,1310nm(Tx)/1490nm(Rx),20km,SC/UPC Compatible with SC/PC
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SFP-GPON-ONU Overview

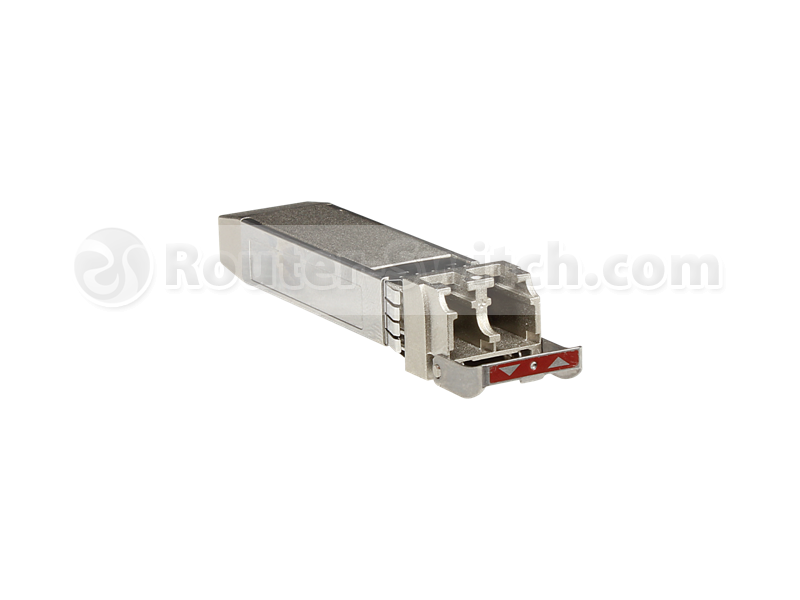

Quick Specs Figure 1 shows the appearance of SFP-GPON-ONU.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | SFP-GPON-ONU |
| Form Factor | SFP |
| Transceiver Type | PON Optical Transceiver |
| Transmission Speed (Tx) | 1244 Mbps |
| Reception Speed (Rx) | 2488 Mbps |
| Mode | Single-mode |
| Wavelength (Tx) | 1310nm |
| Wavelength (Rx) | 1490nm |
| Maximum Distance | 20 km |
| Connector Type | SC/UPC |
| Compatibility | SC/PC |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Regulatory Compliance | RoHS, CE, FCC |
| Power Supply Voltage | 3.3V |
| Power Consumption | < 2W |
| Data Rate | 2.5G/1.25G |
| Product Code | SFP-GPON-ONU |
