SG300-20

Original price was: $156.00.Current price is: $148.20.

Model: SG300-20 – Cisco Small Business 300 Series Managed Switches
Details: 18 10/100/1000 ports, 2 combo mini-GBIC ports
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: SG300-20 Categories: , ,
Description

SG300-20 Overview

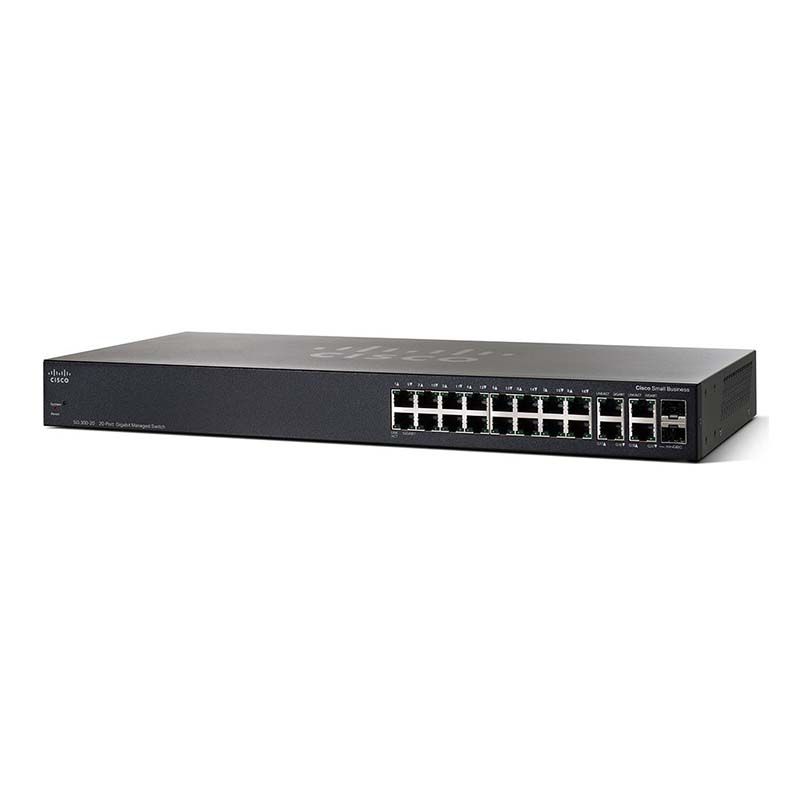

Quick Specs Figure 1 shows the appearance of SG300-20.

Table 1 shows the Quick Specs.

Product Number SG300-20
Product Description 18 10/100/1000 ports, 2 combo mini-GBIC ports
Device Type Switch – 20 ports – L3 – managed
Enclosure Type Desktop, rack-mountable – 1U
Ports 18 x 10/100/1000 + 2 x combo Gigabit SFP
Power Over Ethernet (PoE) N/A
Performance Switching capacity : 40 Gbps ¦ Forwarding performance (64-byte packet size) : 29.76 Mpps
MAC Address Table Size 16K entries
Capacity 4K Active VLANs
Routing Protocol Static IPv4 routing
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Jumbo Frame Support 10KB
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support,DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control,IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support,Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP)support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, fanless
Compliant Standards UL 60950, FCC Part 15 A, CSA 22.2
RAM 128 MB
Flash Memory 16 MB flash
Status Indicators Link activity, port transmission speed, system
Interfaces 20 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ 1 x console – 9 pin D-Sub (DB-9) – management ¦ 2 x SFP (mini-GBIC)
Power Device Power adapter – external
Voltage Required AC 120/230 V ( 50/60 Hz )
Width 17.3 in
Depth 8 in
Height 1.5 in
Weight 4.8 lbs
Cables Included 1 x serial cable
Rack Mounting Kit Included
MTBF 144,237 hour(s)
Localization Chinese (simplified), English, German, French, Italian, Spanish, Japanese
Service & Support Limited lifetime warranty
Service & Support Details Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – web support – 1 year ¦ Technical support – phone consulting – 1 year
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 90% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 – 90% (non-condensing)
