SG300-28MP
Model: SG300-28MP – Cisco Small Business 300 Series Managed Switches
Details: 26 10/100/1000 ports (24 PoE+ ports with 375W power budget), 2 combo mini-GBIC ports
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SG300-28MP Overview

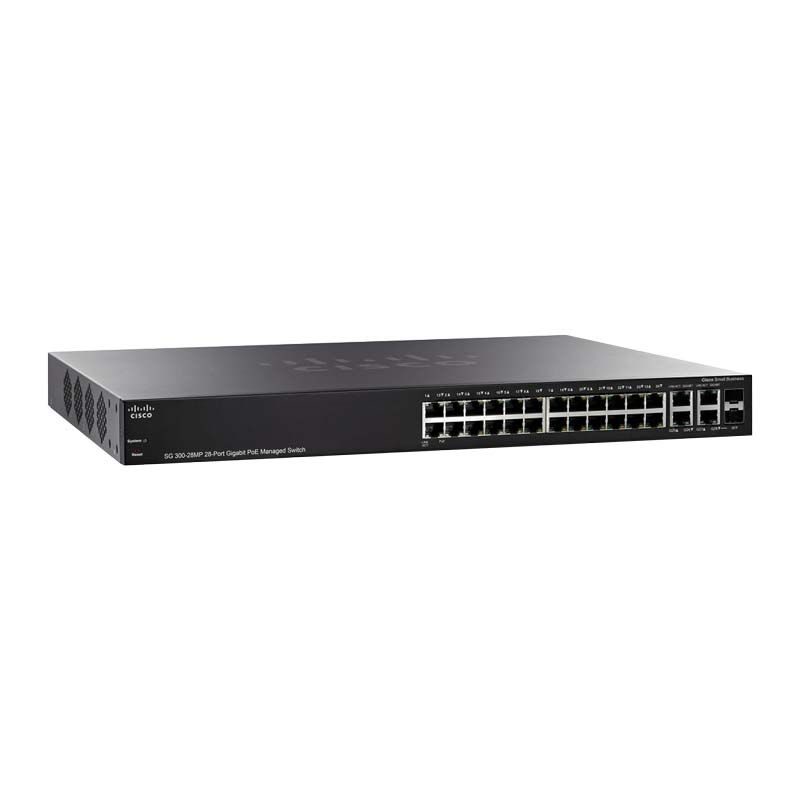

Quick Specs Figure 1 shows the appearance of SG300-28MP.
Table 1 shows the Quick Specs.
| Jumbo Frame Support: | 9 KB |
| Routing Protocol: | Static IPv4 routing |
| Minimum Storage Temperature: | -4 F |
| Depth: | 10.1 inches |
| MTBF: | 138,676 hours at 50C |
| Cables Included: | 1x Serial Cable |
| Capacity: | 4000 active VLANs |
| Height: | 1.73Â inches |
| Maximum Operating Temperature: | 104 F |
| MAC Address Table Size: | 16,000 entries |
| Width: | 17.3Â inches |
| Enclosure Type: | Desktop, rack-mountable – 1U |
| Maxiumum Storage Temperature: | 158 F |
| Ports: | 26 x 10/100/1000 + 2 x combo Gigabit SFP |
| Device Type: | Switch – 28 ports – L3 – managed |
| Humidity Operating Range: | 10-90% (non-condensing) |
| Weight: | 11.6 lbs |
| Minimum Operating Temperature: | 32 F |
| Interfaces: | 24 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 – PoE | 2 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 | 1 x console – 9 pin D-Sub (DB-9) – management | 2 x SFP (mini-GBIC) |
| Humidity Storage Range: | 10-90% (non-condensing) |
| Flash Memory: | 16 MB |
| Voltage Required: | AC 120/230 V ( 50/60 Hz ) |
| Performance: | Switching capacity : 56 Gbps ¦ Forwarding performance (64-byte packet size) : 41.67 Mpps |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE/PoE+ |
| Status Indicators: | Link activity, port transmission speed, system |
| Ram: | 128 MB |
| Authentication Method: | SSH, RADIUS, TACACS+ |
