SG350X-24
Model: SG350X-24 – Cisco 350X Series Stackable Managed Switches
Details: 24 x 10/100/1000 ports, 4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
SG350X-24 Overview

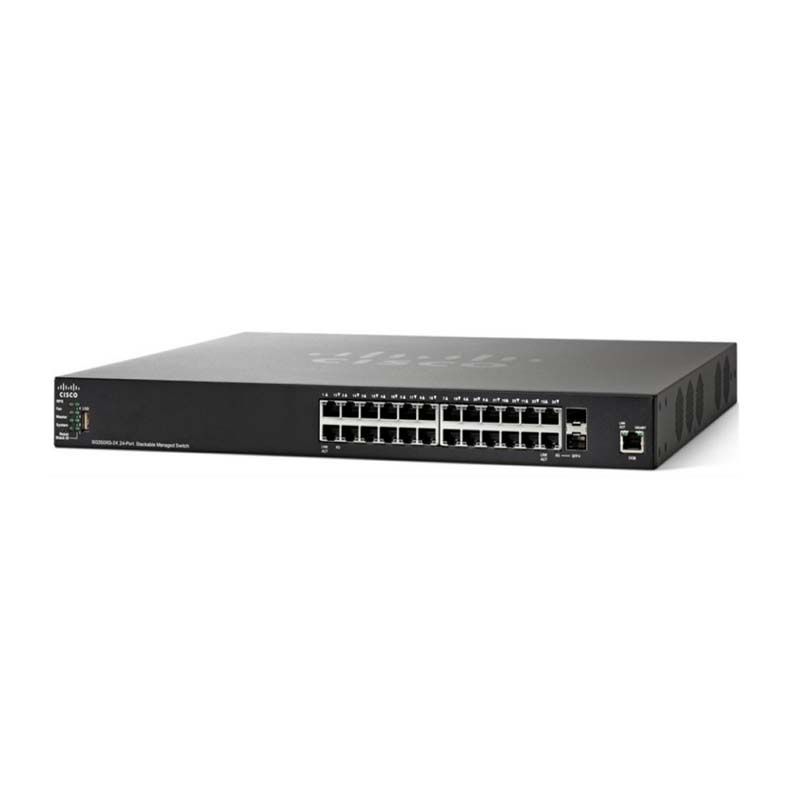

Quick Specs Figure 1 shows the appearance of SG350X-24.
Table 1 shows the Quick Specs.
| Feature | Description |
| Capacity in Mpps (64-byte packets) | 95.23 |
| Switching capacity (Gbps) | 128 |
| Total system ports | 24x 1G + 4x 10G |
| Network ports | 24x 1G |
| Uplink ports | 2x 10G copper/SFP+ combo+ 2x SFP+ |
| Packet buffer | 1.5 MB |
| Unit dimensions (W x H x D) | 440 x 44 x 257 mm (17.3 x 1.73 x 10.12 in) |
| IPv6 | IPv6 host mode IPv6 over Ethernet dual IPv6/IPv4 stackIPv6 neighbor and router discovery (ND), IPv6 stateless address auto-configuration, path Maximum Transmission Unit (MTU) discoveryDuplicate Address Detection (DAD) ICMP v6IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel supportUSGv6 and IPv6 Gold logo certified |
| IPv6 QoS | Prioritize IPv6 packets in hardware |
| IPv6 ACL | Drop or rate-limit IPv6 packets in hardware |
| IPv6 First Hop Security | RA guardND inspectionDHCP v6 guardNeighbor binding table (snooping and static entries)Neighbor binding integrity check |
| Multicast Listener Discovery (MLDÂ v1/2) snooping | Deliver IPv6 multicast packets only to the required receivers |
| IPv6 applications | Web/SSL, Telnet Server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial FTP (TFTP), SNMP, RADIUS, Syslog, DNS client, DHCP Client, DHCP Autoconfig, IPv6 DHCP Relay, TACACS |
| Jumbo frames | Frame sizes up to 9000 bytes. The default MTU is 2000 |
| MAC table | 32,000 addresses on SG350XG and SX350X models16,000 addresses on all other models |
| Bonjour | The switch advertises itself using the Bonjour protocol |
| LLDP (802.1ab) with LLDP-MED extensions | Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones |
| Cisco Discovery Protocol | The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol |
| Console port | Cisco standard RJ-45 console port |
| OOB management port | Dedicated Gigabit Ethernet management port for Out-Of-Band (OOB) management on SG350XG and SX350X models |
| USB slot | USB Type A slot on the front panel of the switch for easy file and image management |
| Buttons | Reset button |
| Cabling type | UTP Category 5 or better; fiber options (Single-Mode Fiber [SMF] and Multimode Fiber [MMF]); coaxial SFP+ |
| LEDs | System, master, stack ID, link/speed per port |
| Flash | 256 MB |
| CPU | 1.3-GHz and 800-MHz (dual-core) ARM for SG350XG and SX350X models800-MHz ARM for all other models |
| CPU memory | 512 MB |
| Power | 100 to 240V 47 to 63 Hz, internal, universal |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | SG350X-12PMV, SG350X-24, SG350X-24P, SG350X-24MP, SG350X-24PD, SG350X-24PV, SG350X-48, SG350X-48P, SG350X-48MP, SG350X-48PV, SG350XG-2F10, SG350XG-24F, SG350XG-24T, SG350XG-48T, SX350X-08, SX350X-12, SX350X-24F, SX350X-24, SX350X-5232° to 122°F (0° to 50°C)SG350X-8PMD32° to 113°F (0° to 45°C) |
| Storage temperature | -4° to 158°F (-20° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| Warranty | Limited lifetime with next-business-day advance replacement (where available, otherwise same day shipping) |
