SG350X-48P

Original price was: $2,326.00.Current price is: $2,209.70.

Model: SG350X-48P – Cisco 350X Series Stackable Managed Switches
Details: 48 x 10/100/1000 PoE+ ports with 382W power budget, 4 x 10 Gigabit Ethernet (2 x 10GBase-T/SFP+ combo + 2 x SFP+)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Description

SG350X-48P Overview

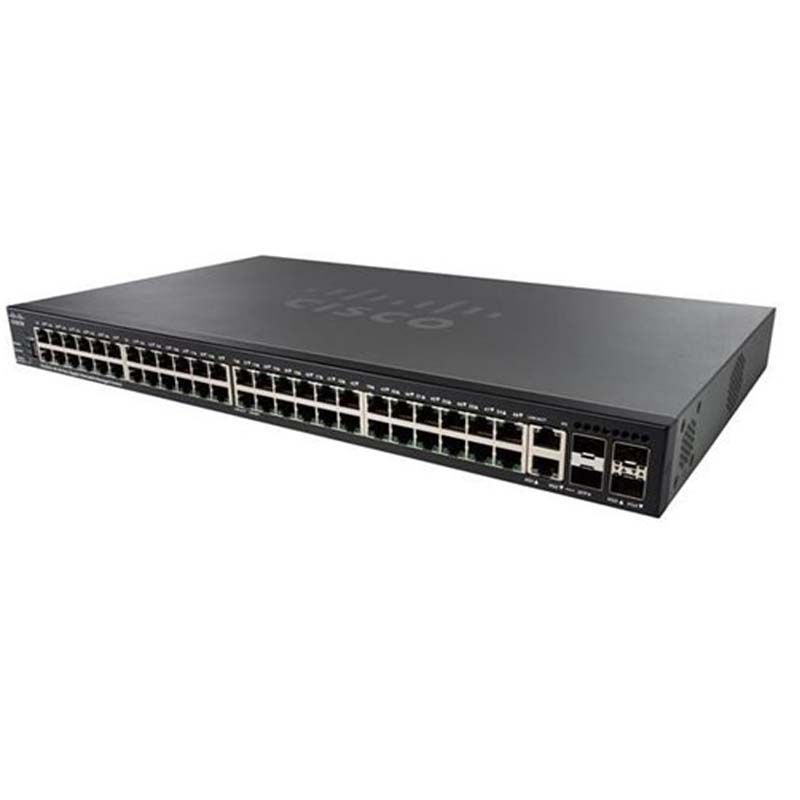

Quick Specs Figure 1 shows the appearance of SG350X-48P.

Table 1 shows the Quick Specs.

Feature Description
Capacity in Mpps (64-byte packets) 130.94
Switching capacity (Gbps) 176
Power dedicated to PoE 382W
Number of ports that support PoE 48 (8 support 60W PoE)
Total system ports 48x 1G + 4x 10G
Network ports 48x 1G
Uplink ports 2x 10G copper/SFP+ combo+ 2x SFP+
Packet buffer 3 MB
Unit dimensions (W x H x D) 440 x 44 x 350 mm (17.3 x 1.73 x 13.78 in)
IPv6 IPv6 host mode IPv6 over Ethernet dual IPv6/IPv4 stackIPv6 neighbor and router discovery (ND), IPv6 stateless address auto-configuration, path Maximum Transmission Unit (MTU) discoveryDuplicate Address Detection (DAD) ICMP v6IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel supportUSGv6 and IPv6 Gold logo certified
IPv6 QoS Prioritize IPv6 packets in hardware
IPv6 ACL Drop or rate-limit IPv6 packets in hardware
IPv6 First Hop Security RA guardND inspectionDHCP v6 guardNeighbor binding table (snooping and static entries)Neighbor binding integrity check
Multicast Listener Discovery (MLD v1/2) snooping Deliver IPv6 multicast packets only to the required receivers
IPv6 applications Web/SSL, Telnet Server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial FTP (TFTP), SNMP, RADIUS, Syslog, DNS client, DHCP Client, DHCP Autoconfig, IPv6 DHCP Relay, TACACS
Jumbo frames Frame sizes up to 9000 bytes. The default MTU is 2000
MAC table 32,000 addresses on SG350XG and SX350X models16,000 addresses on all other models
Bonjour The switch advertises itself using the Bonjour protocol
LLDP (802.1ab) with LLDP-MED extensions Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones
Cisco Discovery Protocol The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol
Console port Cisco standard RJ-45 console port
OOB management port Dedicated Gigabit Ethernet management port for Out-Of-Band (OOB) management on SG350XG and SX350X models
USB slot USB Type A slot on the front panel of the switch for easy file and image management
Buttons Reset button
Cabling type UTP Category 5 or better; fiber options (Single-Mode Fiber [SMF] and Multimode Fiber [MMF]); coaxial SFP+
LEDs System, master, stack ID, link/speed per port
Flash 256 MB
CPU 1.3-GHz and 800-MHz (dual-core) ARM for SG350XG and SX350X models800-MHz ARM for all other models
CPU memory 512 MB
Power 100 to 240V 47 to 63 Hz, internal, universal
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature SG350X-12PMV, SG350X-24, SG350X-24P, SG350X-24MP, SG350X-24PD, SG350X-24PV, SG350X-48, SG350X-48P, SG350X-48MP, SG350X-48PV, SG350XG-2F10, SG350XG-24F, SG350XG-24T, SG350XG-48T, SX350X-08, SX350X-12, SX350X-24F, SX350X-24, SX350X-5232° to 122°F (0° to 50°C)SG350X-8PMD32° to 113°F (0° to 45°C)
Storage temperature -4° to 158°F (-20° to 70°C)
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Warranty Limited lifetime with next-business-day advance replacement (where available, otherwise same day shipping)
