SIMCOM SIM8300 5G
Model: SIMCOM SIM8300 5G – SIMCOM 5G Modules
Details: SIMCOM SIM8300 5G NR Sub-6GHz & mmWave Module
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SIMCOM SIM8300 5G Overview

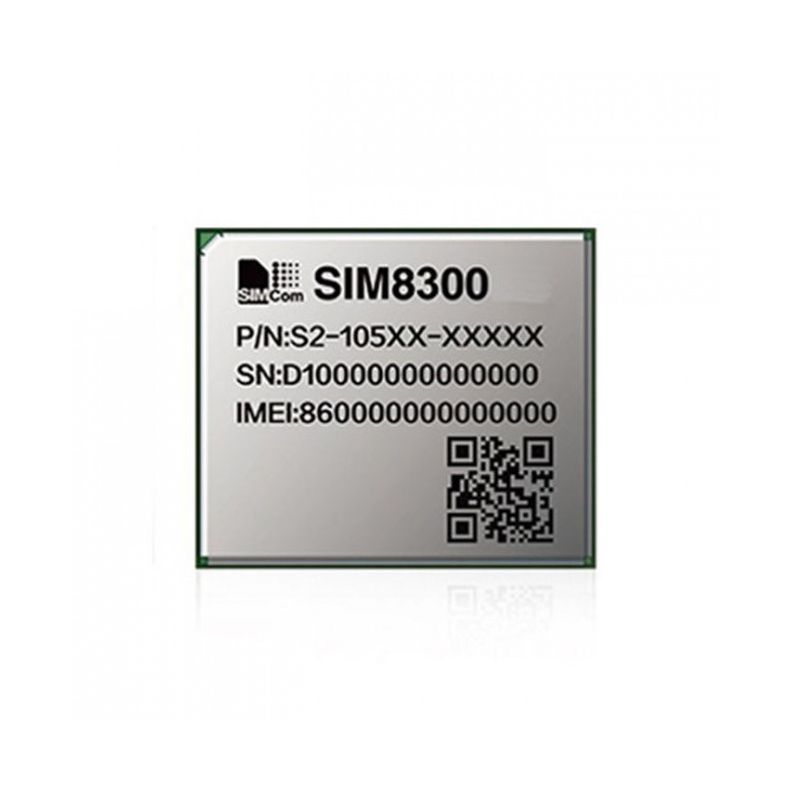

Quick Specs Figure 1 shows the appearance of SIMCOM SIM8300 5G.
Table 1 shows the Quick Specs.
| Chipset | Qualcomm Snapdragon X55 Modem |
| Form factor/package | LGA |
| Network technology | Sub-6G/mmWave/LTE-FDD/LTE-TDD/WCDMA |
| Support 4G LTE FDD Band | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
| Support 4G LTE TDD Band | B34/B38/B39/B40/B41/B42/B43/B48 |
| Support 3G WCDMA Band | B1/B2/B3/B4/B5/B8 |
| Data rates | – Sub‐6G: Downlink up to 4 Gbps, Uplink up to 450Mbps- LTE CAT22: Downlink up to 2.4Gbps, Uplink up to 200Mbps- HSPA+: Downlink up to 42.0Mbps, Uplink up to 5.76Mbps |
| GNSS | GPS/GLONASS/BeiDou/Galileo/QZSS |
| Supply voltage range | 3.3V ~ 4.3V |
| Operation temperature | ‐40℃ ~ +85℃ |
| Dimensions | 41.0*43.6*2.8mm |
| Interfaces | – USB2.0 with High speed up to 480Mbps- USB3.1 with SS Gen2- UART- USIM and E‐SIM interface(1.8V /2.85V)- Digital Audio through PCM- I2C- I2S for Audio- SPI- ADC- GPIOs- RGMII- PCIe Gen3- SDIO3.0- WIFI- PMI- Antenna x 8 |
| Other Features | – USB Driver for Microsoft Windows Win7/Win8/Win10- USB Driver for Linux /Android- RIL supporting for Android 5.0/6.0/7.0/8.0- RNDIS /NDIS/PPP/MBIM to Win8- Firmware update via USB- TCP/IP/IPV4/IPV6/Multi‐PDP/FTPS /HTTPS/MQTTS/DNS- SSL3.0/TLS1.0/TLS1.2- DTMF (Sending and Receiving)- VoNR/VoLTE/CSFB- FOTA/OTA- AGPS/SUPL2.0 |
| Approvals | – RoHS Compliant- CCC*- CTA*- SRRC*- REACH*- CE*- FCC*- GCF- RCM |
