SPA-8XCHT1/E1-V2=
Model: SPA-8XCHT1/E1-V2= – Cisco Module & Card
Details: 8-Port Channelized T1/E1 Shared Port Adapter Version 2
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
SPA-8XCHT1/E1-V2= Overview

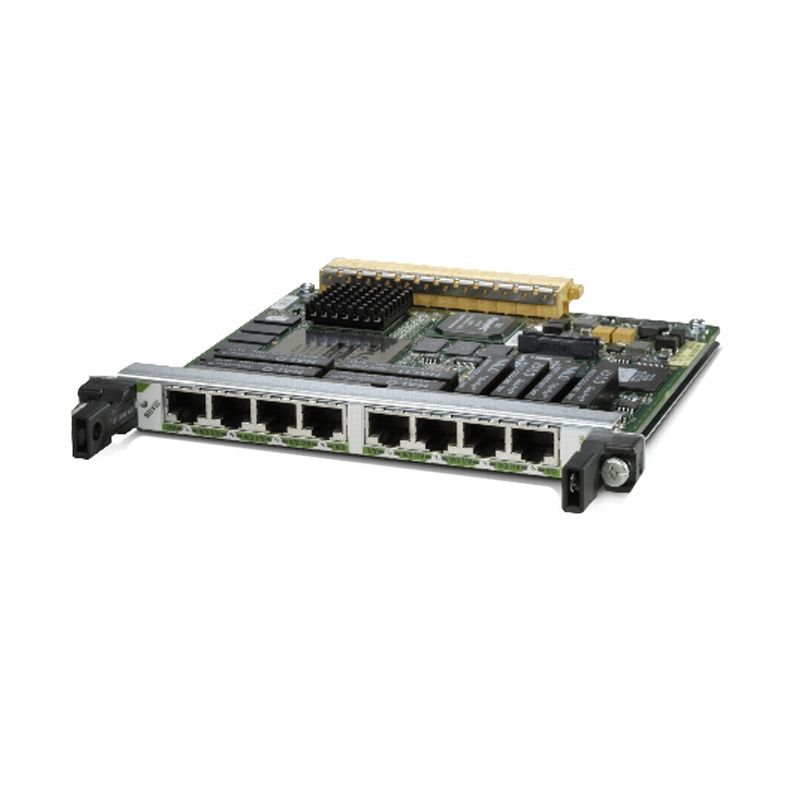

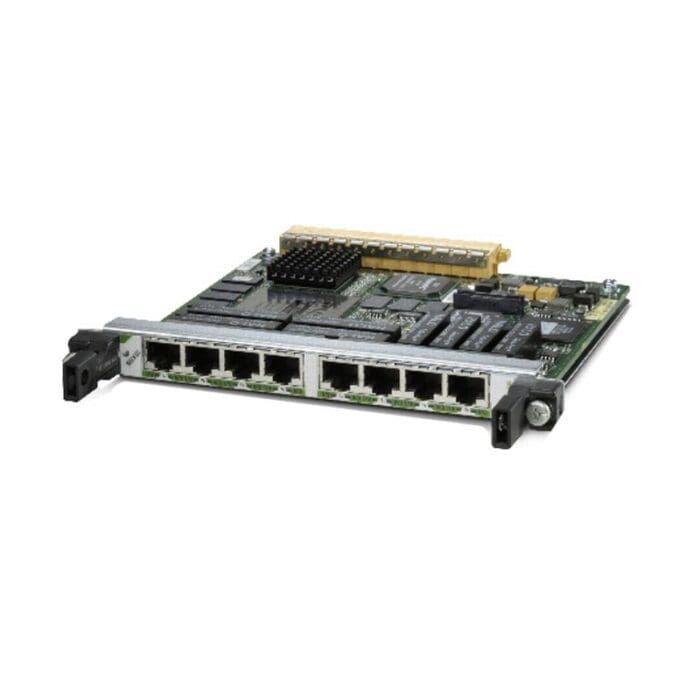

Quick Specs Figure 1 shows the appearance of SPA-8XCHT1/E1-V2=.
Table 1 shows the Quick Specs.
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | T1/E1 x 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDLC, Frame Relay, PPP, MLPPP, MLFR |
| Data Transfer Rate | 2.048 Mbps |
| Remote Management Protocol | SNMP |
| Line Rate | T-1/E-1 |
| Line Coding Format | AMI, B3ZS |
| Features | Integrated CSU/DSU |
| Compliant Standards | VCCI, EN 60950, EN55022, ICES-003, EN55024, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, ACA TS001, AS/NZS 3260, AS/NZS 3548, FCC CFR47 Part 15 |
| Interfaces | 8 x T1/E1 – RJ-45 |
| Width | 6.8 in |
| Depth | 7.3 in |
| Height | 0.8 in |
| Weight | 11.99 oz |
