Name: SPA-OC192POS-XFP
SKU: SPA-OC192POS-XFP
Availability: InStock

SPA-OC192POS-XFP

Model: SPA-OC192POS-XFP Cisco ASR 9000 Series Shared Port Adapter
Details: Cisco ASR 9000 Adapter SPA-OC192POS-XFP 1-port OC192/STM64 POS/RPR XFP Optics
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

SPA-OC192POS-XFP Overview

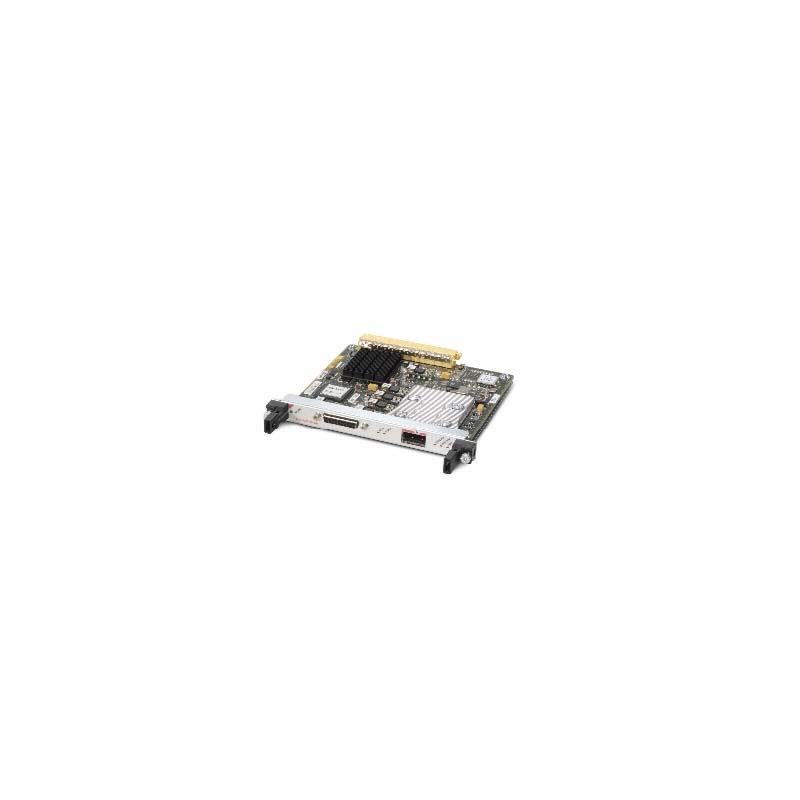

Quick Specs Figure 1 shows the appearance of SPA-OC192POS-XFP.

Table 1 shows the Quick Specs.

Description	Cisco ASR 9000 Adapter, SPA-OC192POS-XFP, 1-port OC192/STM64 POS/RPR XFP Optics
Product Name	Cisco 1-Port OC-192c/STM-64c POS/RPR Shared Port Adapter with XFP Optics
Product compatibility	• Cisco ASR 1000 Series Router• Cisco ASR 9000 Series Router
Port density per SPA	• 1 port• DPT/RPR configuration – two SPAs are needed to connect to one RPR ring
Physical interface	• OC-192c/STM-64c fixed interface or pluggable (XFP) optics module• Connector:• XFP-LC connector• Long reach (LR)-SC connector• Very short reach (VSR)-Standard media termination point (MTP) (multipath optical [MPO]) multifiber optical connectors• RPR operation requires a mate cable-part number CBL-RPR-OC192-L or CBL-RPR-OC192-S• Visual status indicators (LEDs):• SPA status LED• Per-port LEDs• Carrier and alarm• Active and loopback• Protect• Pass-through
Protocols	• High-Level Data Link Control (HDLC), RFC 2615• Point-to-Point Protocol (PPP), RFC 1662• Frame Relay, RFC 2427• IPv4/IPv6• IEEE 802.17 RPR• IETF 2892-SRP
Features and functions	• Synchronization• Local (internal) or loop timed (recovered from network)• Layer 3 clock accuracy (± 4.6 ppm) over full operating temperature• Pointer activity monitoring• Local (diagnostic) and line (network) loopback• Section data communication channel (SDCC) -platform-dependent feature• Payload mapping• 1 + x^43 self-synchronous scrambler• SONET/SDH compliance• Telcordia (Bellcore) GR-253-CORE (as applicable)• ANSI T1.105, and T1.231• ITU-T G.707, G.957, and G.825 (as applicable)• Supported SONET/SDH alarm and signal events• Signal failure bit error rate (SF-ber)• Signal degrade bit error rate (SD-ber)• Signal label payload construction (C2)• Path trace byte (J1)• Section• Loss of signal (LOS)• Loss of frame (LOF)• Error counts for B1• Threshold crossing alarms (TCA) for B1• Error counts for B2• Threshold crossing alarms (TCA) for B2• Line• Line alarm indication signal (LAIS)• Line remote defect indication (LRDI)• Line remote error indication (LREI)• Path• Path alarm indication signal (PAIS)• Path remote defect indication (PRDI)• Path remote error indication (PREI)• Error counts for B3• TCA for B3• Loss of pointer (LOP)• Positive stuffing event (PSE)• Negative stuffing event (NSE)• Path unequipped indication signal (PUNEQ)• Path payload mismatch indication signal (PPLM)
Network management	• RFC 2558 MIB (SONET/SDH)• Simple Network Management Protocol (SNMP)
Reliability and availability	• Online insertion and removal (OIR)• Field-replaceable XFP optical modules• 1 + 1 SONET automatic-protection-switching (APS) and SDH linear multiplex-section-protection (MSP) protocols• Single SPA software reset
Physical specifications	• Weight: 0.75 lb (0.34 kg)• Height: 0.8 in. (2.03 cm) (single height – XFP interface)• Height: 1.6 in. (4.06 cm) (double height – VSR, LR fixed optics)• Width: 6.75 in. (17.15 cm)• Depth: 7.28 in. (18.49 cm)
Power	15.5W maximum
Environmental specifications	• Operating temperature: 41 to 104°F (5 to 40°C)• Storage temperature: -38 to 150°F (-40 to 70°C)• Operating humidity: 5 to 85% relative humidity• Storage humidity: 5 to 95% relative humidity
Compliance and agency approvals	Safety• UL 60950• CSA 22.2-No.60950• EN60950• IEC 60950 CB Scheme• ACA TS001• AS/NZS 3260• EN60825IEC60825 laser safety (SR, IR-Class 1) (VSR-Class 1M)1• 21CFR1040-FDA Code of Federal Regulations (USA) laser safety (SR, IR-Class 1) (VSR-Class 1M)1EMC• FCC Part 15 (CFR 47)• ICES 003• EN55022• CISPR 22• AS/NZ 3548• VCCI• EN55024• EN50082-1• EN61000-6-1• EN61000-3-2• EN61000-3-3Network Equipment Building System (NEBS)This product is designed to meet the following requirements (official qualification may be in progress):• SR-3580-NEBS: Criteria levels (Level 3 compliant)• GR-63-Core-NEBS: Physical protection• GR-1089-Core-NEBS: EMC and safetyETSI• EN300 386/EN300 386-2 Class B• ETS 300 019 Storage Class 1.1• ETS 300 019 Transportation Class 2.3• ETS 300 019 Stationary Use Class 3.1

Get more information
Do you have any question about the SPA-OC192POS-XFP?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

100% Quality Assurance: All items are ORIGINAL and GENUINE only. Item conditions are “New Sealed” or “Used / Refurbished”. Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support: Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured

-5%

Click to enlarge

Original price was: $57,133.00.Current price is: $54,276.35.
