SRX1500-AC
Model: SRX1500-AC – Juniper SRX Series
Details: SRX1500 with 16x1G, 4x10G (SFP+) on-board ports, 1x AC PSU and 100GB SSD
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
SRX1500-AC Overview

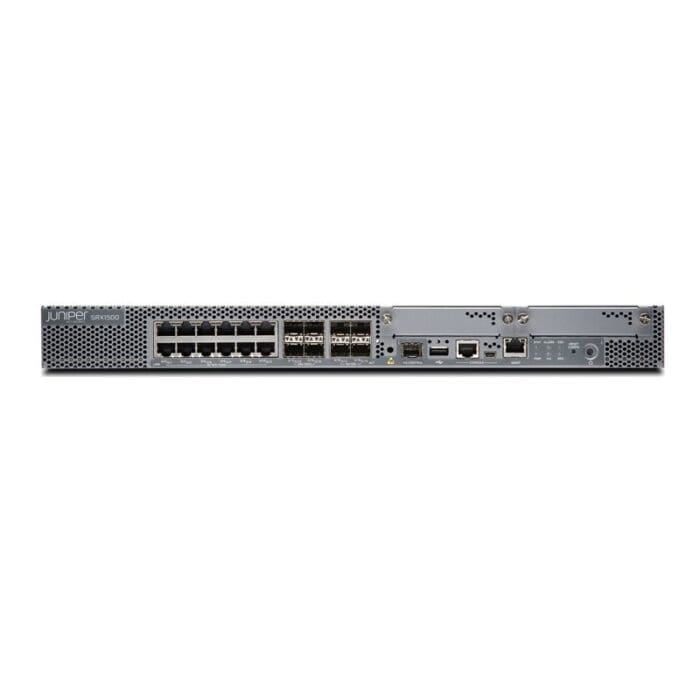

Quick Specs Figure 1 shows the appearance of SRX1500-AC.
Table 1 shows the Quick Specs.
Description | SRX1500 with 16x1G, 4x10G (SFP+) on-board ports, 1x AC PSU and 100GB SSD |
Junos OS software version tested | Junos OS 15.1X49-D30 |
Firewall performance (max) | 10 Gbps |
IPS performance | 3 Gbps |
AES256+SHA-1 / 3DES+SHA-1 VPN performance | 2 Gbps |
Maximum concurrent sessions | 2 million |
New sessions/second (sustained, TCP, 3-way) | 50,000 |
Maximum security policies | 16,000 |
Maximum security intelligence data feed entries in firewall rules database | N/A |
Total onboard ports | 16x1GbE and 4x10GbE |
Onboard RJ-45 ports | 12x1GbE |
Onboard small form-factor pluggable (SFP) transceiver ports | 4x1GbE |
Onboard SFP+ ports | 4x10GbE |
Out-of-band (OOB) management ports | 1x1GbE |
Dedicated high availability (HA) ports | 1x1GbE (SFP) |
Console (RJ-45 + miniUSB) | 1 |
USB 2.0 ports (type A) | 1 |
System memory (RAM) | 16 GB |
Primary boot storage (mSATA) | 16 GB |
Secondary storage (SSD) | 100 GB |
Form factor | 1U |
Size (WxHxD) | 17.5 x 1.75 x 18.2 in (44.45 x 4.44 x 46.22 cm) |
Redundant PSU | 1+1 |
Power supply | AC/DC (external) |
Average power consumption | 150 W |
Average heat dissipation | 512 BTU / hour |
Maximum current consumption | 2.5A (for AC PSU); 6.2A (for DC PSU) |
Acoustic noise level | 66.5dBA |
Airflow/cooling | Front to back |
Operational temperature | 32° to 104° F (0° to 40° C) |
Nonoperational temperature | 4° to 158° F (-20° to 70° C) |
Operating humidity | 10% to 90% noncondensing |
Nonoperating humidity | 5% to 95% noncondensing |
