Sold out
SRX320
Model: SRX320 – Juniper SRX Series Service Gateways
Details: SRX320 (Hardware Only, require SRX320-JSB or SRX320-JSE to complete the System) with 8GE (w 2x SFP), 4G RAM, 8G Flash and 2x MPIM slots. Includes external power supply and cable. RMK not included
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
SRX320 Overview

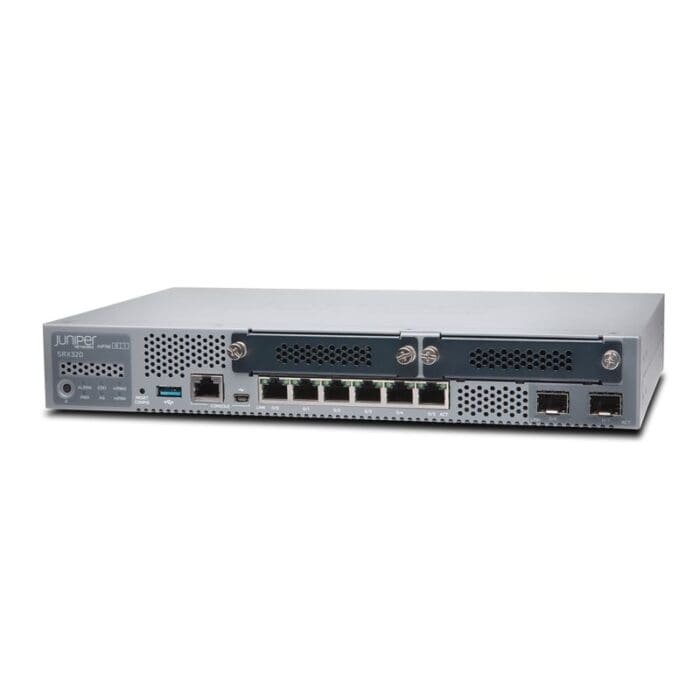

Quick Specs Figure 1 shows the appearance of SRX320.
Table 1 shows the Quick Specs.
| Description | SRX320 (Hardware Only, require SRX320-JSB or SRX320-JSE to complete the System) with 8GE (w 2x SFP), 4G RAM, 8G Flash and 2x MPIM slots. Includes external power supply and cable. RMK not included |
| Junos OS software version tested | Junos OS 15.1X49 |
| Firewall performance (max) | 1 Gbps |
| IPS performance | 100 Mbps |
| AES256+SHA-1 / 3DES+SHA-1 VPN performance | 250 Mbps |
| Maximum concurrent sessions | 64,000 |
| New sessions/second (sustained, TCP, 3-way) | 5000 |
| Maximum security policies | 1000 |
| Maximum security intelligence data feed entries in firewall rules database | N/A |
| Total onboard ports | 8x1GbE |
| Onboard RJ-45 ports | 6x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 2x1GbE |
| MACsec-capable ports | 2x1GbE |
| Out-of-band (OOB) management ports | 0 |
| Mini PIM (WAN) slots | 2 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Optional PoE+ ports | 6 |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| SSD slots | 0 |
| Form factor | Desktop |
| Size (WxHxD) | 11.81 x 1.73 x 7.52 in. (29.99 x 4.39 x 19.10 cm) |
| Redundant PSU | No |
| Power supply | AC (external) |
| Maximum PoE power | 180 W |
| Average power consumption | 46 W/221 W |
| Average heat dissipation | 157 BTU/h/755 BTU/h |
| Maximum current consumption | 0.634 A/2.755 A |
| Airflow/cooling | Front to back |
| Operational temperature | 32° to 104° F (0° to 40° C) |
| Nonoperational temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
